Description

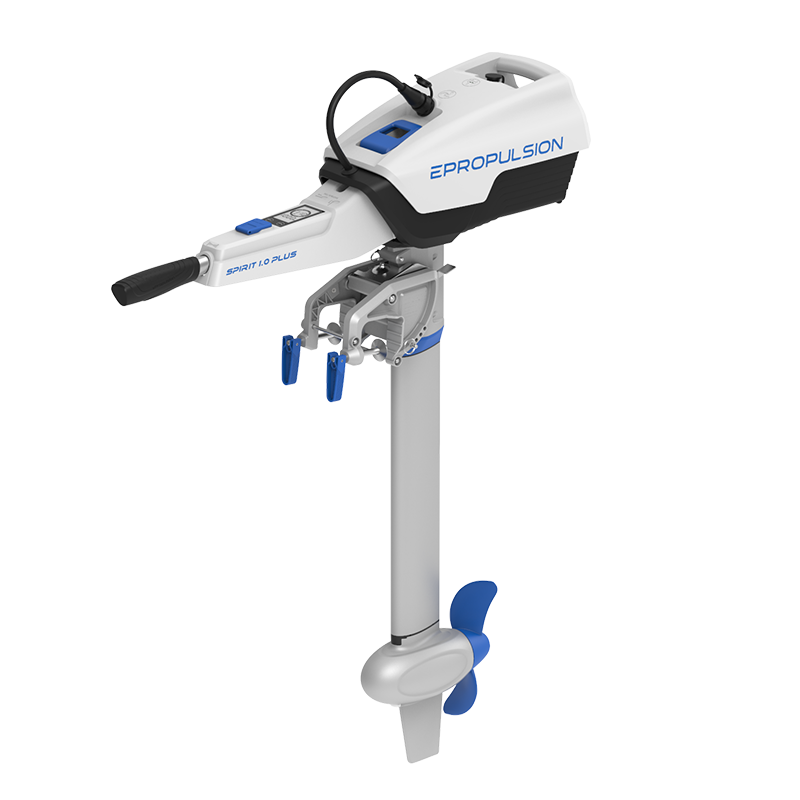

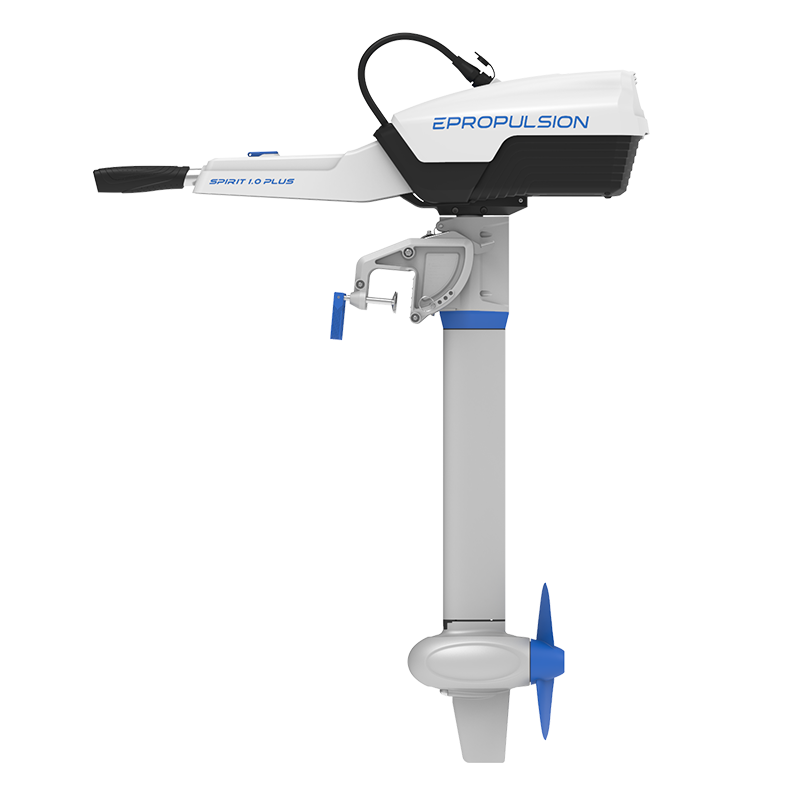

Epropulsion Spirit 1.0 Plus Electric Outboard with Battery:
The Spirit 1.0 Plus is a lightweight, portable and eco-friendly 1kW (~3hp) electric outboard made for dinghies, tenders, fishing boats, sailboats, yachts or any small boat under 1.5 tonnes. It features a lightweight 1276kWh integrated lithium battery that provides long range, and a digital display that gives you real-time engine and trip information.
Includes:
- Spirit 1.0 Plus Motor Body – Long Shaft
- Spirit Plus Battery
- Spirit Plus Battery Charger
- 2 x Magnetic Killswitches
- Steering Locking Pins
- User Manual & Warranty Card
Specs:
| Spirit 1.0 Plus | |
|---|---|
| Power | 1 kW |
| Input Voltage | 39V – 60V |
| Standard Battery | Spirit Battery Plus, 1276 Wh li-ion polymer |
| Motor Weight* | 10.6 kg / 23.4 lbs |
| Battery Weight | 8.7 kg / 19.2 lbs |
| Charing Time | Standard charger: 8.5 Hrs; Fast charger: 3.5 Hrs |
| External Battery | Yes, and E-Series Battery recommended |
| Propeller | 11″ × 5.8″ 2-blade composite propeller |
| Trim / Tilt Angle | 0°, 7°, 14°, 21° / 70° |
| Shaft Length | Extra Short, Short, Long |
| Motor | Brushless DC motor |
| Direct Drive | Yes |
* The weight is measured with the short shaft version.
Performance:
| Power (W) | Speed (mph / kph) | Runtime (hh:mm) | Range (mile / km) |
|---|---|---|---|
| 35 | 2.2 / 3.5 | 36:25 | 80 / 129 |
| 65 | 2.7 / 4.3 | 19:35 | 53 / 85.3 |
| 125 | 3.5 / 5.6 | 10:00 | 35 / 56 |
| 250 | 4.4 / 7.1 | 5:00 | 22 / 35.5 |
| 500 | 5.3 / 8.5 | 2:30 | 13.3 / 21.3 |
| 750 | 5.7 / 9.2 | 1:40 | 9.5 / 15.3 |
| 1000 | 6.2 / 10 | 1:15 | 7.8 / 12.5 |
* The performance data is based on a 12-foot aluminum boat with one person and one Spirit battery Plus in calm lake water. The actual speed, range and running time may vary because of different boats, load, weather, etc.
