Description

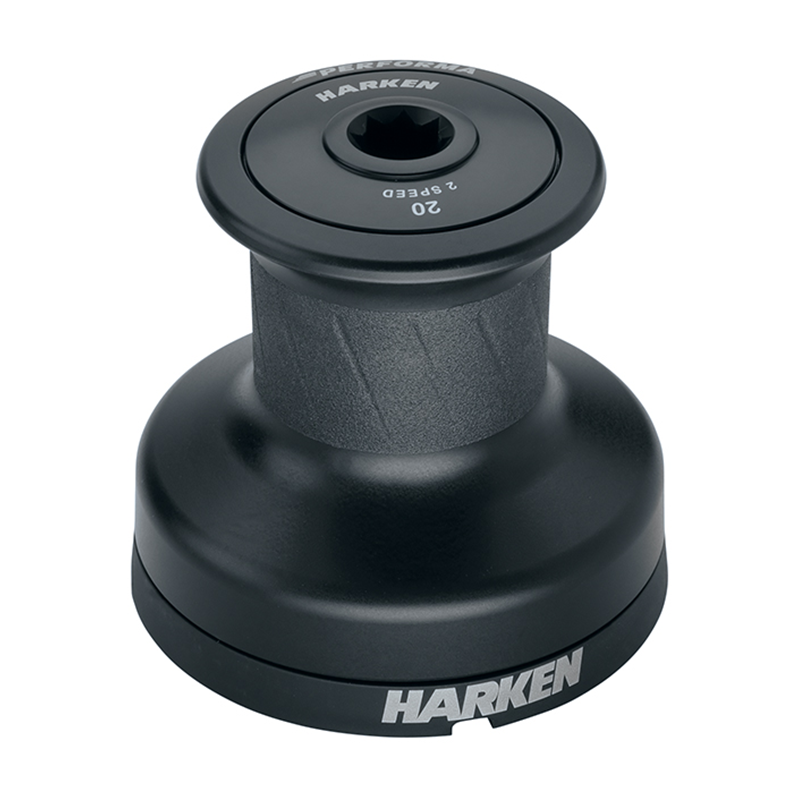

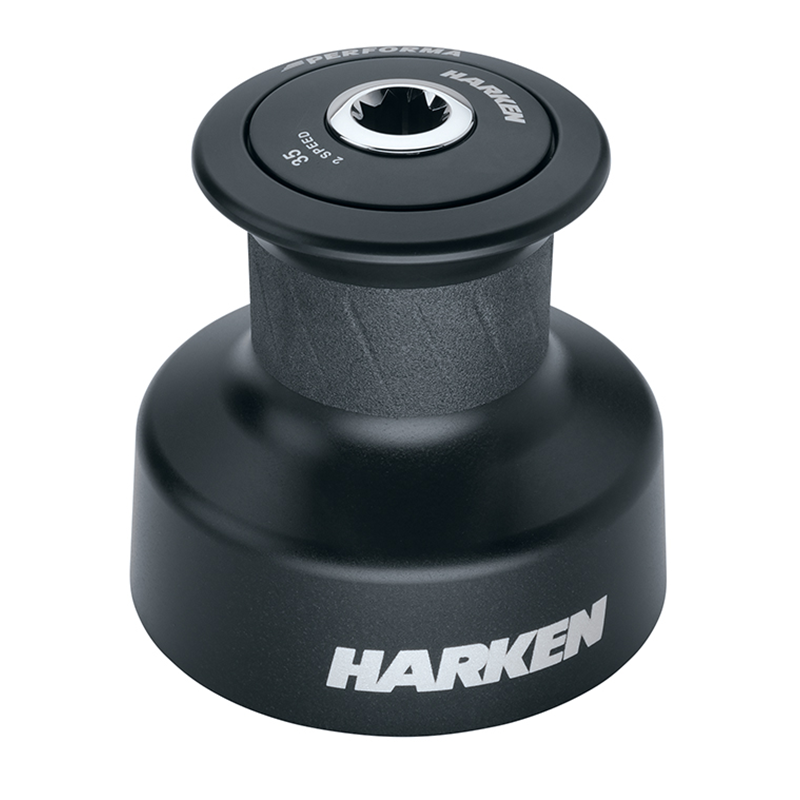

Harken Plain-Top Performa Winches:
All Performa™ winches feature sandblasted drums optimised for halyard and sheeting applications using small-diameter, high-tech line. Use plain-top winches on sportboats where sails require frequent trimming. Plain-top winches are best handled by two crew—one to trim and one to tail the line.
| Sku | Name | Category | Configuration | Speed | Drum Ø mm (in) | Base Ø mm (in) | Height mm (in) | Weight kg (lb) | Line Entry Height mm (in) | Fastener Circle mm (in) | Fasteners mm (in) | Number Of Fasteners | Gear Ratio - 1 (2) | Gear Ratio - 2 | Power Ratio - 1 | Power Ratio - 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20.2PTP | 20 Plain-Top Performa™ Winch — AL/2 Speed | Hardware\Winches\Racing\Performa Racing | Plain-top | 2 | 73 (2 7/8) | 137 (5 3/8) | 128 (5 1/16) | 2 (4.4) | 61 (2 3/8) | 110 (4 3/8) | M6 HH,M6 SH (1/4 SH) | 5 | 1 | 2.76 | 6.95 | 19.2 |
| 35.2PTP | 35 Plain-Top Performa™ Winch — AL/2 Speed | Hardware\Winches\Racing\Performa Racing | Plain-top | 2 | 80 (3 1/8) | 149 (5 7/8) | 148 (5 13/16) | 3.1 (6.8) | 79 (3 1/8) | 123 (4 7/8) | M6 HH,M6 SH (1/4 SH) | 5 | 2.13 | 5.65 | 13.50 | 39.90 |
| 40.2PTP | 40 Plain-Top Performa™ Winch — 2 Speed | Hardware\Winches\Racing\Performa Racing | Plain-top | 2 | 80 (3 1/8) | 157 (6 3/16) | 153 (6) | 3.5 (7.7) | 82 (3 1/4 | 123 (4 7/8) | 6 HH,6 SH (1/4 SH) | 5 | 2.13 | 6.28 | 13.50 | 39.90 |
| 46.2PTP | 46 Plain-Top Performa™ Winch — 2 Speed | Hardware\Winches\Racing\Performa Racing | Plain-top | 2 | 100 (3 15/16) | 184 (7 1/4) | 179 (7 1/16) | 5.1 (11.3) | 90 (3 9/16) | 150 (5 7/8) | M8 HH,M8 SH (5/16 HH,5/16 SH) | 5 | 2.30 | 9.17 | 11.70 | 46.50 |
| 50.2PTP | 50 Plain-Top Performa™ Winch — 2 Speed | Hardware\Winches\Racing\Performa Racing | Plain-top | 2 | 110 (4 5/16) | 195 (7 11/16) | 190 (7 1/2) | 5.9 (13) | 97 (3 13/16) | 150 (5 7/8) | M8 HH,M8 SH (5/16 HH,5/16 SH) | 5 | 2.40 | 10.90 | 11.10 | 50.40 |
