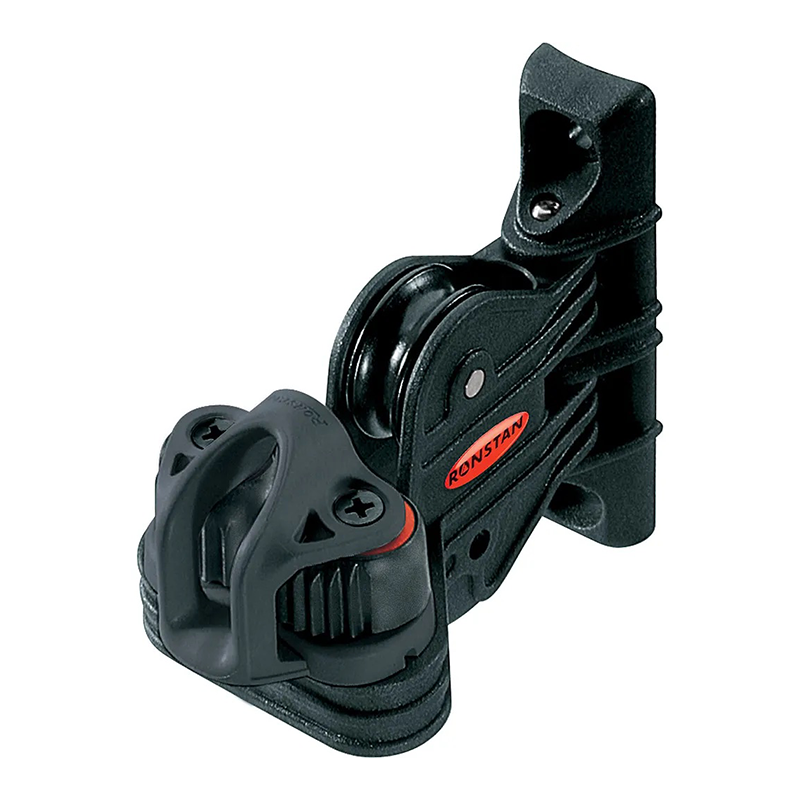

Ronstan 28mm Ball Bearing Sheaves Swivelling Cleat Unit – RF5

$65.95 incl GST


Ronstan 28mm Ball Bearing Sheaves Swivelling Cleat Unit – RF5:

Swivelling cleat unit. 28mm (1 1/8″) diameter ball bearing sheave, small C-Cleat™ and fairlead.

Swivel cleat bases permit easy cleating and releasing from any angle.
Manufactured in lightweight fibre reinforced composite materials – the position of the sheave can be changed for control line led from below.

Comes complete with a 28mm (1 1/4″) ball bearing sheave, small ‘T-Cleat™’ and the ‘Fast Track’ fairlead.  Fastenings 2 x 5mm (3/16″).

* Load ratings are for the cleat base assembly and are based upon a 90º change in line direction. Line load should be limited to: MWL 125kg (275lb).


Product Specifications
Diameter Ø (mm) 28
B.L. (kg) 250
M.W.L. (kg) 125
Weight (g) 100
Rope Ø (mm) 2 – 8


  • Typically fitted to dinghy and catamaran spars for halyard, cunningham or outhaul control.


Fibre reinforced Nylon body.

Additional information

Weight .2 kg

Grey, Black, Blue, Red, Yellow, Green
