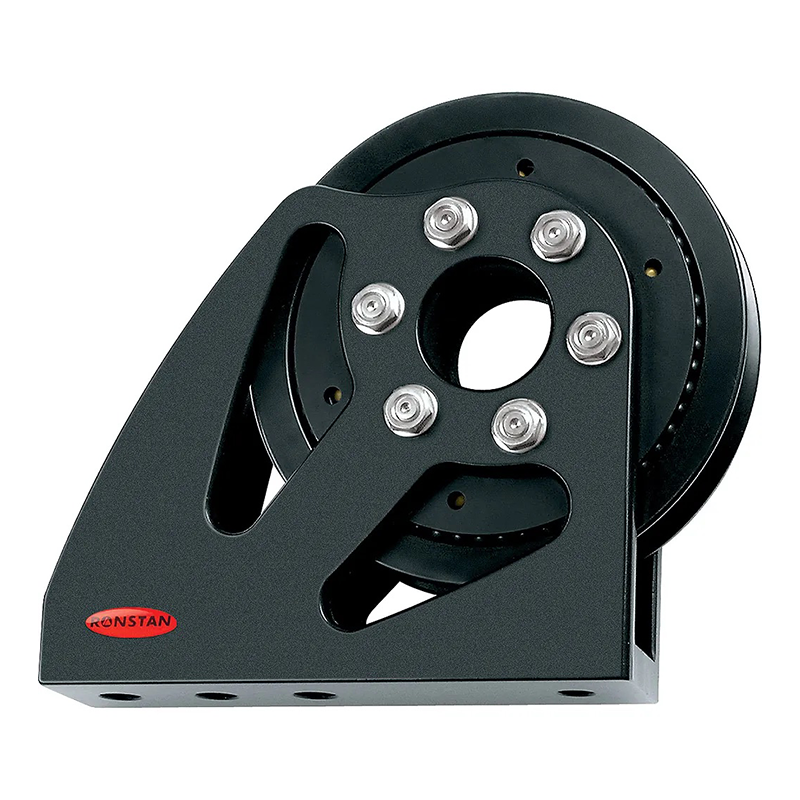

Ronstan Series 150 Single Roller Bearing Upright Lead Block – RF158171

$2,269.95 incl GST

Description

Ronstan Series 150 Single Roller Bearing Upright Lead Block – RF158171:

Single, upright lead.

Features:

  • High static and dynamic load capacity.
  • Keeps lines close to the deck.
  • Cheek cut-outs for easy bearing cleaning and maintenance.
  • Blocks can be disassembled for servicing.

Ball Bearing models have Torlon® needle rollers for axial loads, and acetal ball bearings for side thrust loads.

The self-contained alloy sheave packages provide reliable, low-friction performance at high loads. The high axial loads are carried by Torlon® roller needle bearings, while side thrust loads are taken up by Acetal ball bearings. Block sheave and cheeks are alloy.

Specifications:

Product Specifications
B.L. (kg) 11000
M.W.L. (kg) 5500
Max. Rope diameter (mm) 20
Weight (g) 1714
Fastener Ø (mm) 1 x 10

3 x 12

Applications:

Typically used for halyards at the mast base.

Materials:

  • Alloy sheave and housing.
  • Torlon® needle rollers.
  • Black carbon Acetal ball bearings.

Additional information

Weight 1.8 kg
