Description

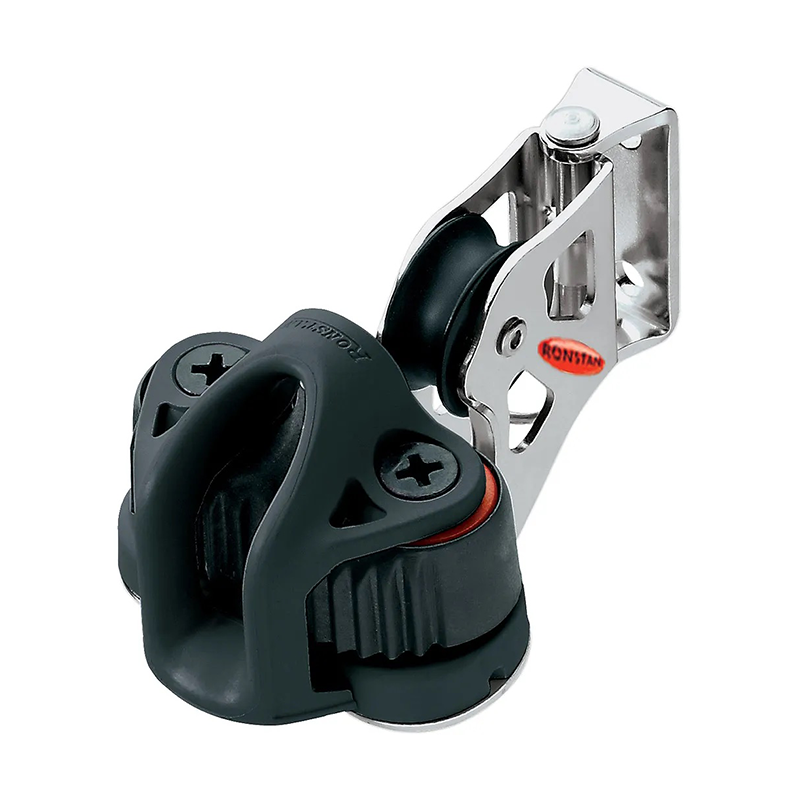

Ronstan Series 20 Pivoting Lead Block with Small C-Cleat & Fairlead – RF20175:
Uses 2 x 4mm or 5/32″ fasteners. Line can be led from above or below.
Features:
Swivel cleat bases permit easy cleating and releasing from any angle.
Sheave can be relocated to allow the control line to feed from below. Comes complete with Series 20 ball bearing sheave, small ‘C-Cleat™’ and the ‘Fast Track’ fairlead. Contact Ronstan for details. Line load should be limited to: MWL 125kg (275lb).
Specifications:
B.L. (kg)300
M.W.L. (kg)150
Weight (g)79
Rope Ø (mm)2 – 6
Notes:Line load through cleat not to exceed 125kg (275lb).
Applications:
Sheet leads and halyards on dinghies and catamarans.
Material:
- Grade 316 stainless steel ball bearings.
- UV stabilised Acetal sheave.
- Grade 316 stainless steel load housing.
