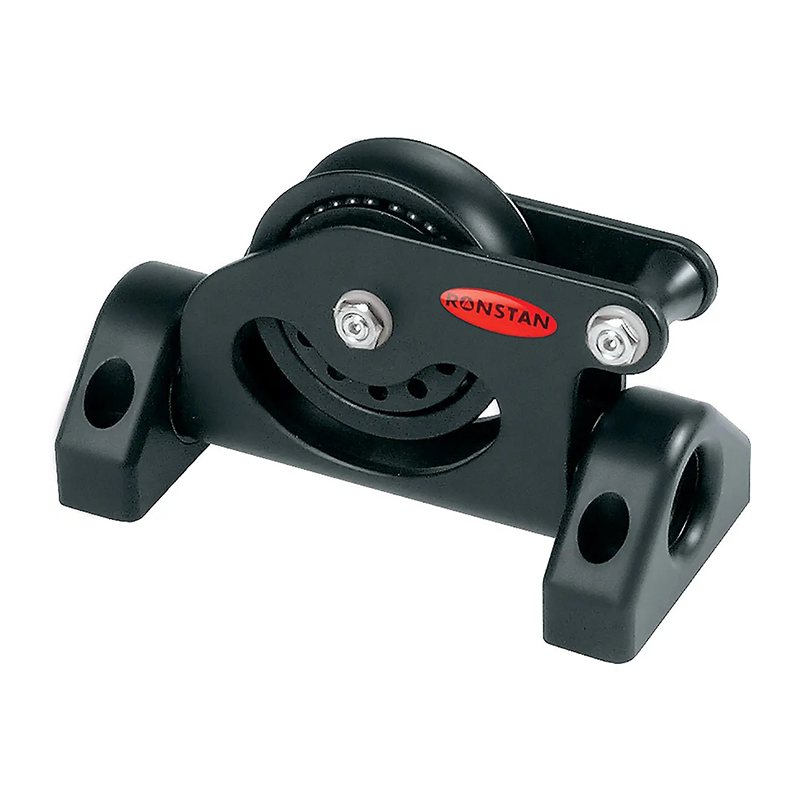

Ronstan Series 60 Single Roller Bearing Pivoting Low Lead Block – RF68174

$756.95 incl GST

SKU: RF68174 Categories: , , , ,

Description

Ronstan Series 60 Single Roller Bearing Pivoting Low Lead Block – RF68174:

Single Pivoting Low Lead Block.

Features:

  • High static and dynamic load capacity.
  • Keeps lines close to the deck.
  • Cheek cut-outs for easy bearing cleaning and maintenance.
  • Blocks can be disassembled for servicing.

Maintains alignment with a variable line entry-angle. The line passes through the centre of the pivot support, remaining as close to the deck as possible. The self-contained alloy sheave packages provide reliable, low-friction performance at high loads.

Specifications:

Product Specifications
B.L. (kg) 3000
M.W.L. (kg) 1500
Max. Rope diameter (mm) 14
Weight (g) 341
Fastener Ø (mm) 4 x 6mm



Materials:

  • Alloy sheave and housing.
  • Torlon® needle rollers.
  • Black carbon Acetal ball bearings.

Additional information

Weight .4 kg
