Description

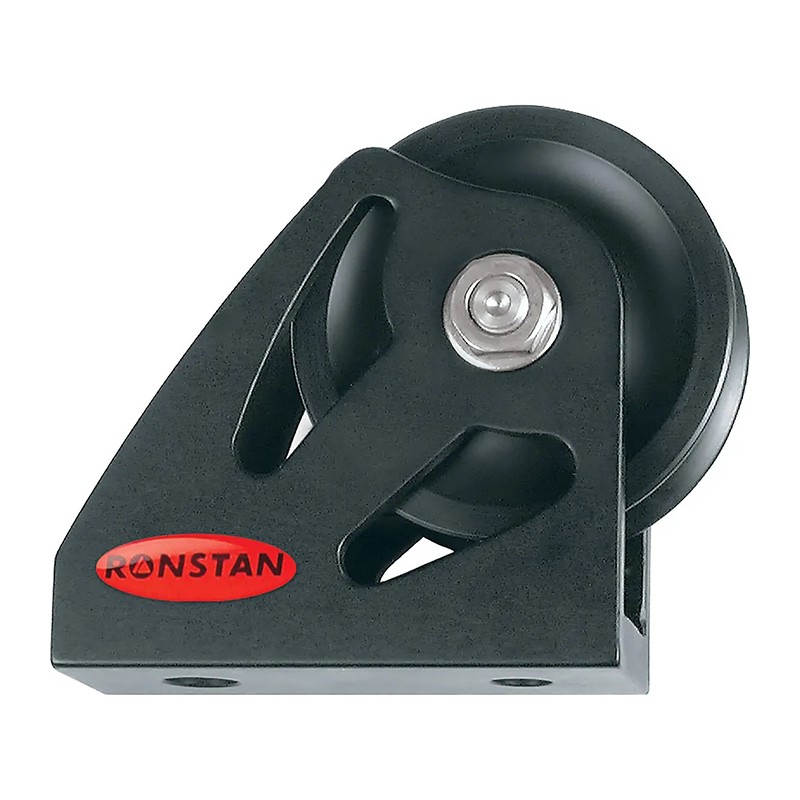

Ronstan Series 60 Single Upright Lead Block – RF61171
Upright All Purpose Lead
Features:
- High static and dynamic load capacity.
- Keeps lines close to the deck.
- Cheek cut-outs for easy bearing cleaning and maintenance.
- Blocks can be disassembled for servicing.
Ball Bearing models have Torlon® needle rollers for axial loads, and acetal ball bearings for side thrust loads.
Specifications:
| B.L. (kg) | 3000 |
|---|---|
| M.W.L. (kg) | 1000 |
| Max. Rope diameter (mm) | 14 |
| Weight (g) | 205 |
| Fastener Ø (mm) | 1 x 8
1 x 10 |
Applications:
Typically used for halyards at the mast base.
Materials:
- U.V. stabilised Acetal sheave.
- Stainless steel hub.
- Alloy housing.
