Description

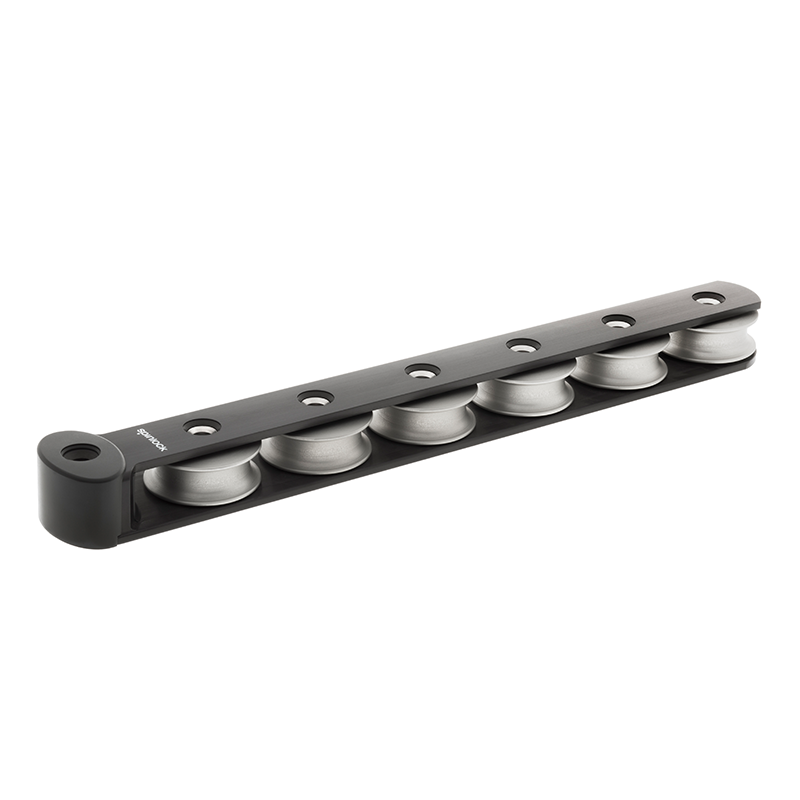

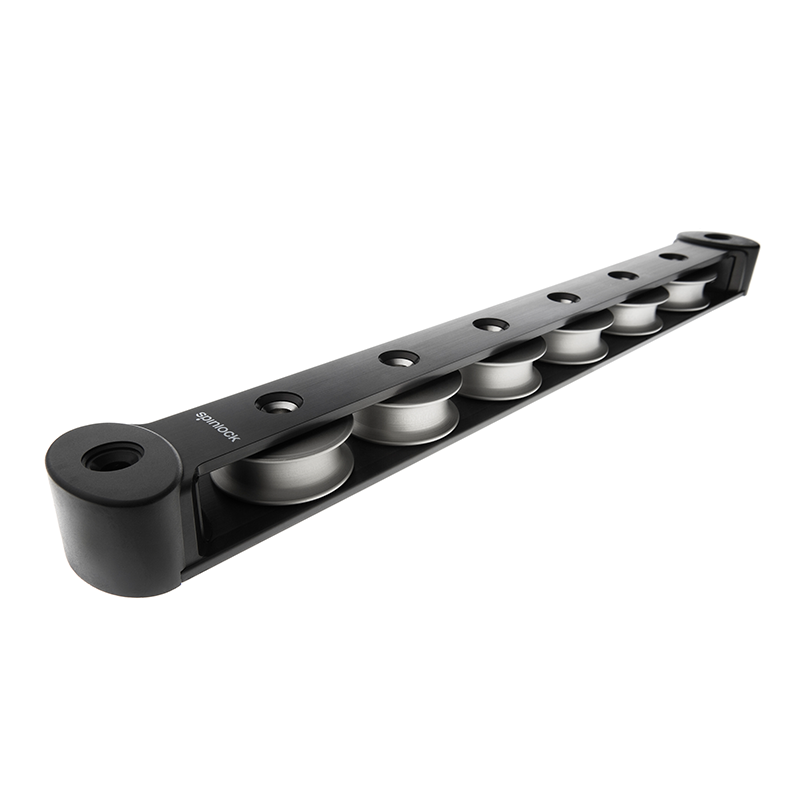

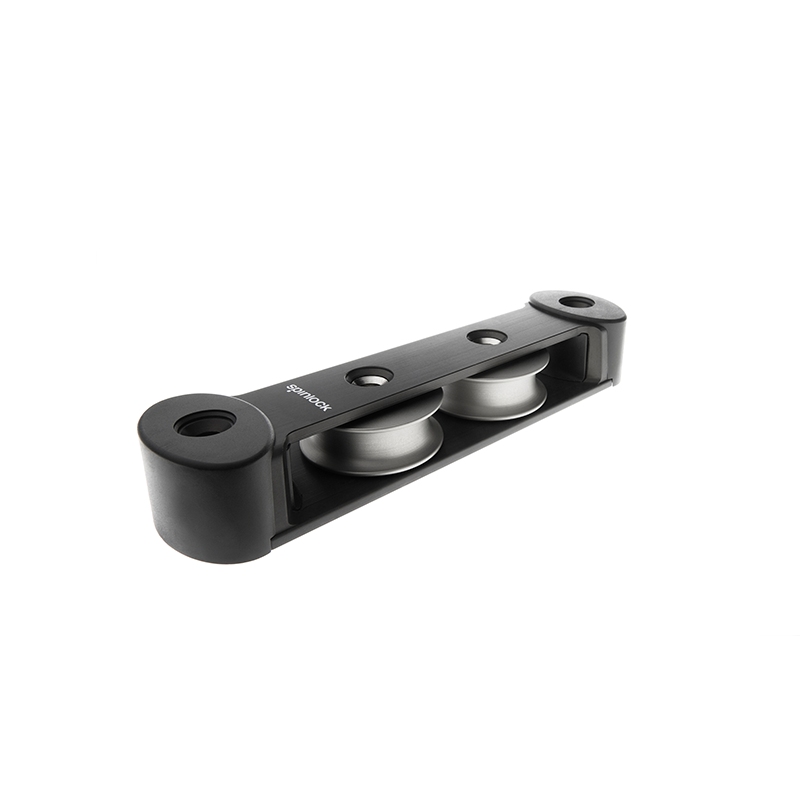

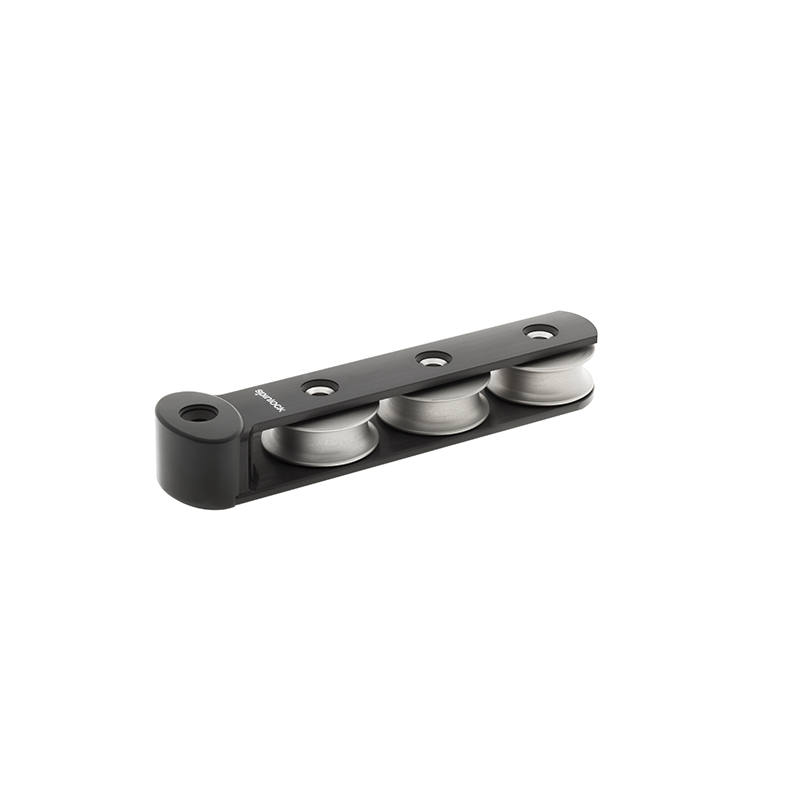

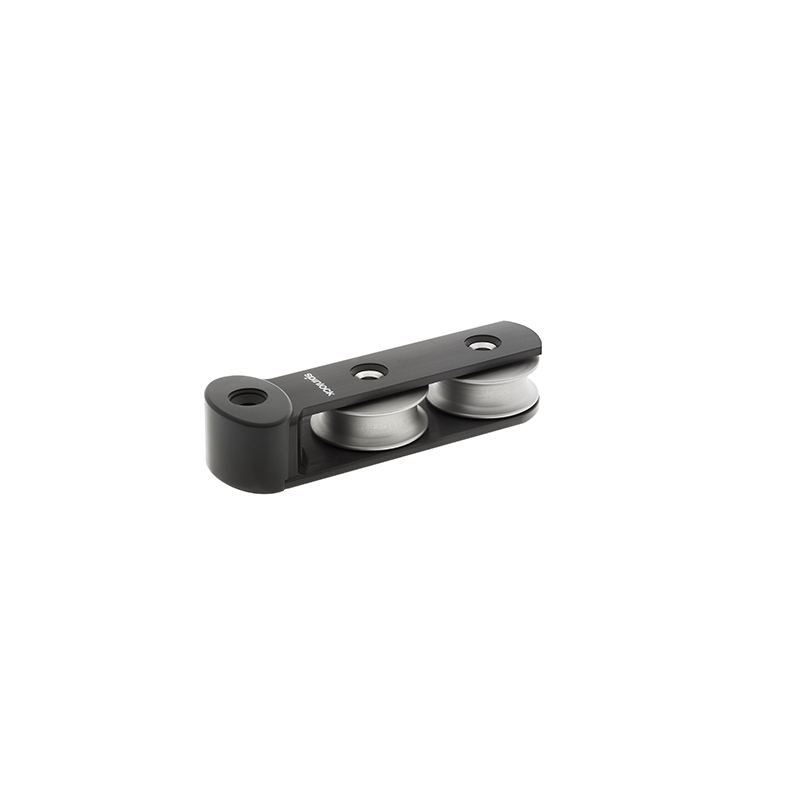

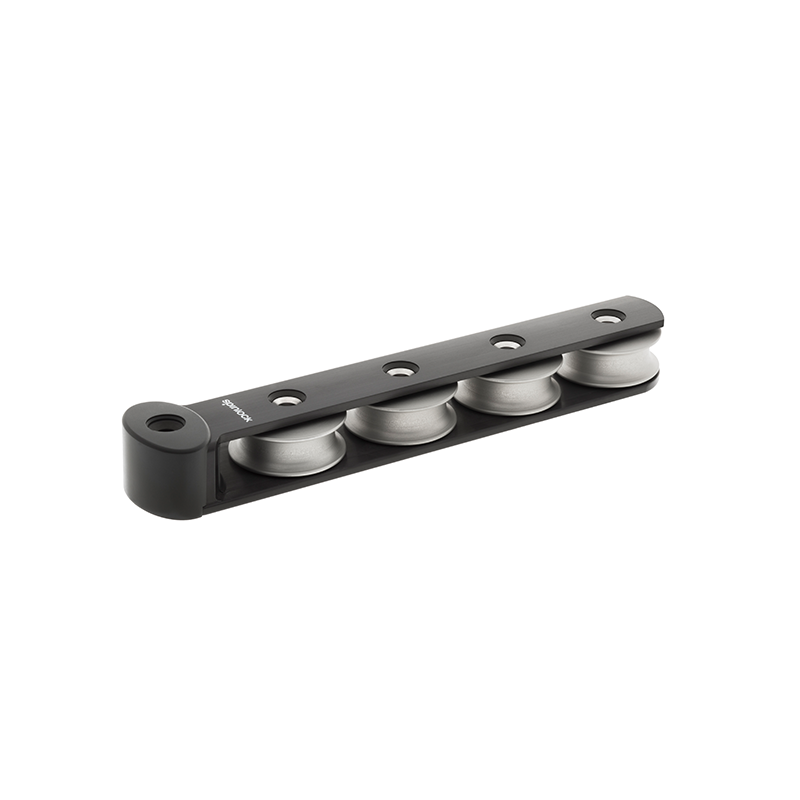

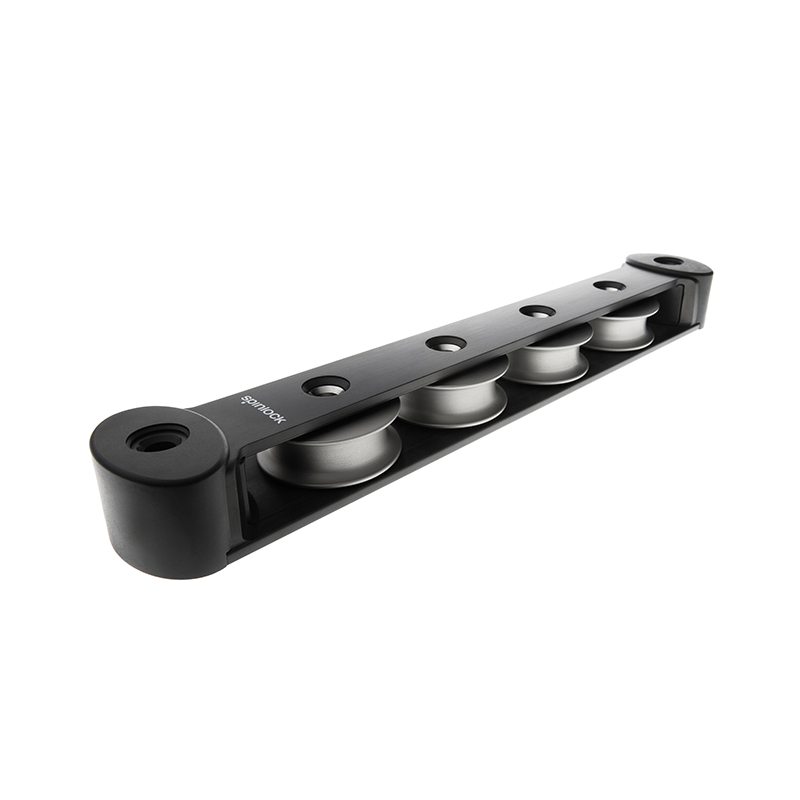

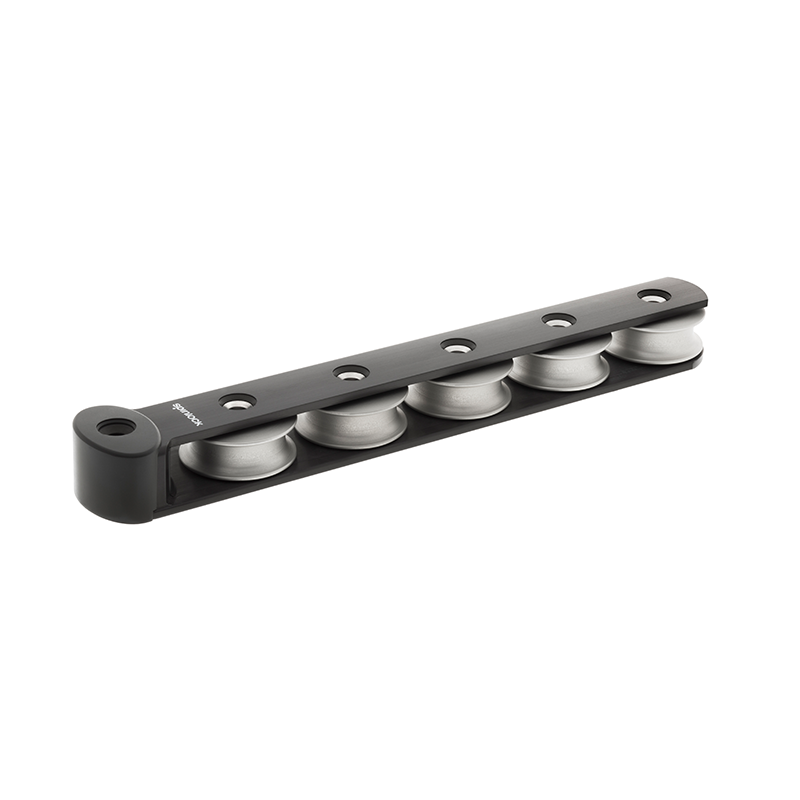

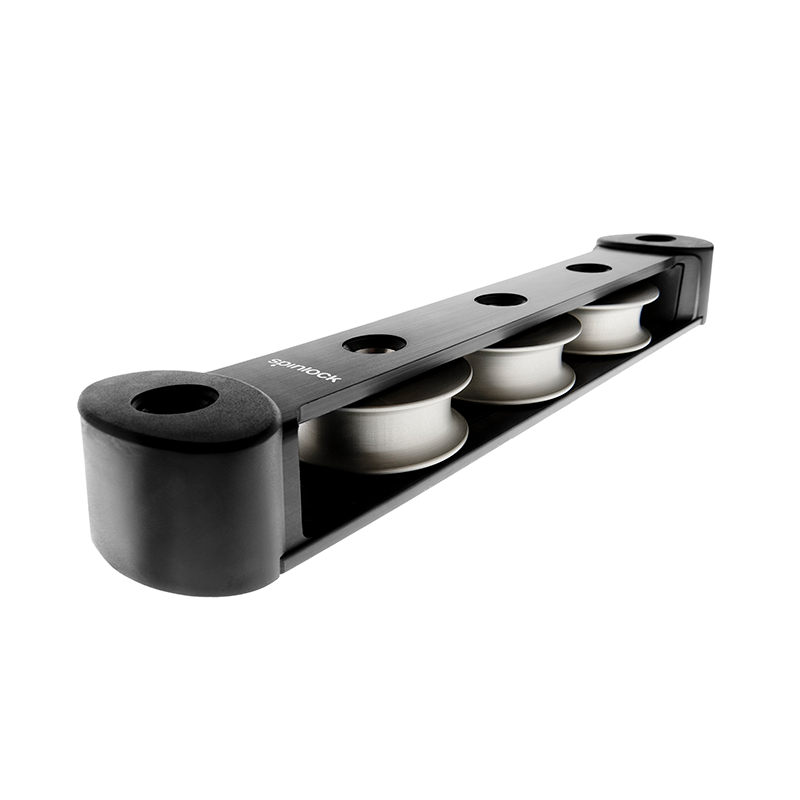

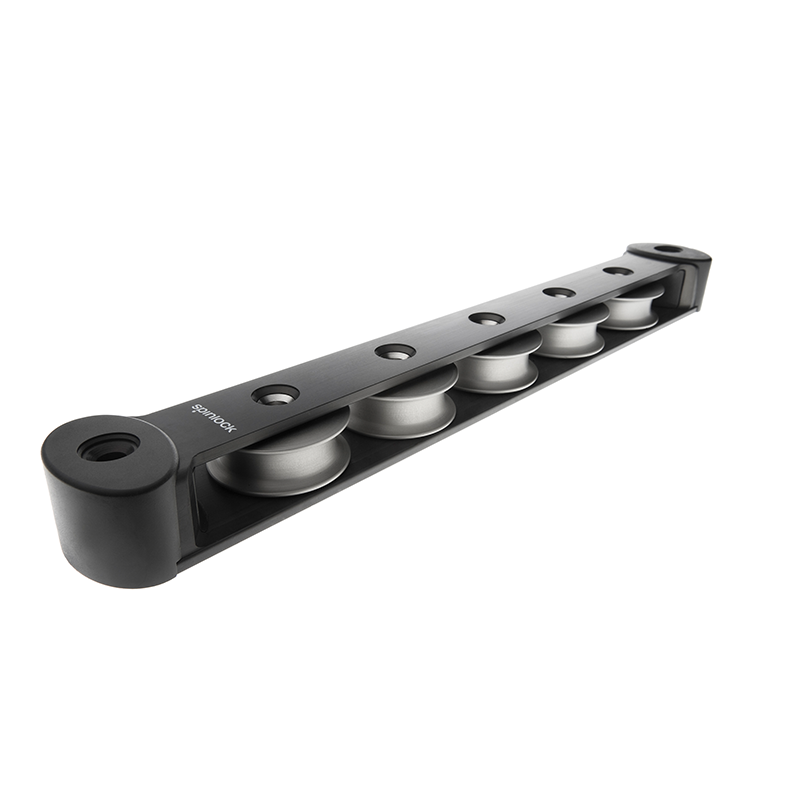

Spinlock 50mm Alloy Sheave Deck Organisers: – High Load
- TC50 organisers are specially developed for higher loads.
- Minimal overall length.
- Efficient bearings surface reduces winch effort and increases halyard life.
- Integral end fairings for safe side loading.
- Double stack versions available.
- Can be used as an Aft Organiser to divert lines from a clutch to a winch.
Sheave Diameter / Type:
- TC50 – 50mm (2″) alloy
- TC50/D – 50mm (2″) alloy
SWL per sheave:
- TC50 – 1500kg (3300lbs)
- TC50/D – 1000kg (2200lbs) upper row
- TC50/D – 1500kg (3300lbs) lower row
Total SWL per unit:
- TC50 – Number of sheaves x 750kg (1650lbs)
- TC50/D – Number of sheaves x 500kg (1100lbs) upper row
- TC50/D – Number of sheaves x750kg (1650lbs) lower row
Line Diameter:
- TC50 – Up to 14mm (9/16″)
- TC50/D – Up to 14mm (9/16″)
Fasteners:
- TC50 – M8 (5/16″) CSK (Not Supplied)
- TC50/D – M8 (5/16″) CSK (Not Supplied)
