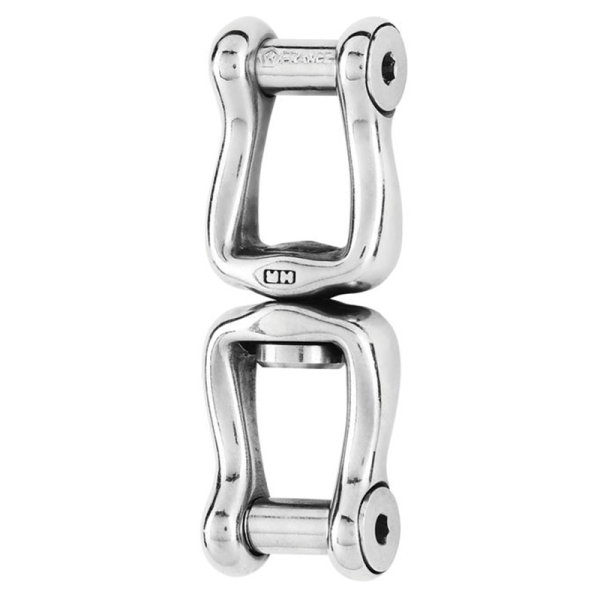

Wichard Allen Head Pin Swivels

$115.95$229.95 incl GST

Description

Wichard Allen Head Pin Swivels:

  • HR forged swivel (17.4 Ph) with two openings.
  • Low clutter (allen head pin).
  • Outstanding working and breaking loads.

Applications

  • Link two pieces which have different rotation.
  • Do not use for mooring applications.

Working load (WL): for nautical applications.

Working Load Limit (WLL): for industrial applications only.
The safety factor is 5 times the breaking load.
WLL = Breaking load / 5



Wichard Double Allen Head Swivel23632369
MaterialsHR 17.4 PH stainless steel gradeHR 17.4 PH stainless steel grade
Length (mm)80120
Working load (kg)14402000
Breaking load (kg)28005000
Weight (g)99312
A (mm)2031
B (mm)1727
C (mm)1118
D diameter (mm)810

Additional information

Weight .2 kg
Dimensions 10 × 10 × 10 cm
Length:

2363 – 80mm, 2369 – 120mm
