Description

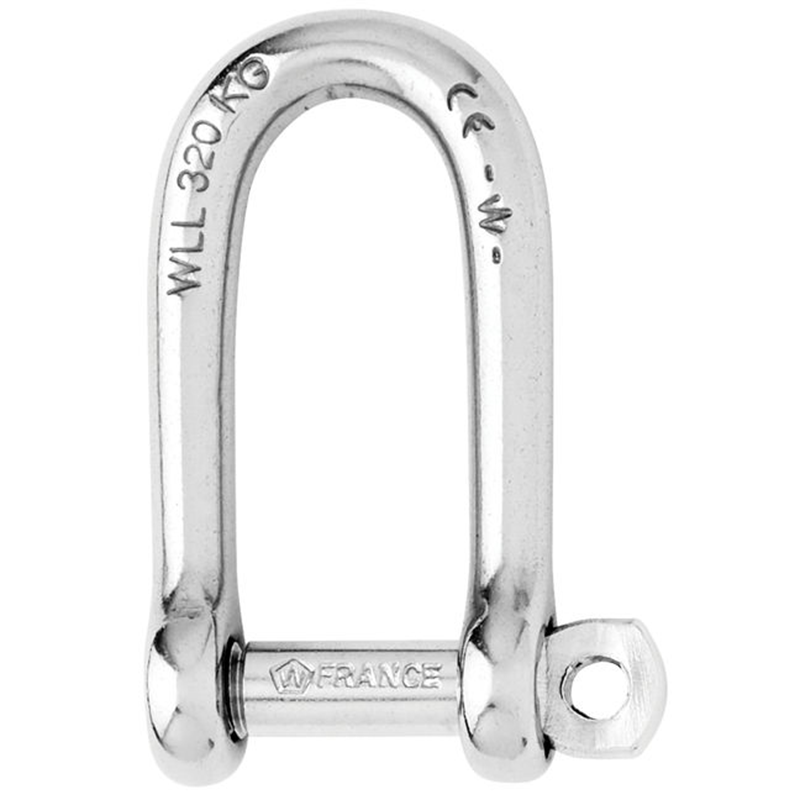

Wichard Self-Locking Long Shackles:
- Self-locking long shackle forged in grade 316L stainless steel.
- The pin is locked into one of the indentations.
- No risks of loose due to vibrations.
- Outstanding working and breaking loads.
- WLL: only for industrial applications.
- CE Marking.
Applications:
- Standard applications of shackle requiring more length.
- Attachment applications: blocks, head…
Working load (WL): for nautical applications.
Working Load Limit (WLL): for industrial applications only.
The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
| Self Locking Long D Shackles | 1211 | 1212 | 1213 | 1214 | 1215 |
|---|---|---|---|---|---|
| Materials | 316 stainless steel grade | 316 stainless steel grade | 316 stainless steel grade | 316 stainless steel grade | 316 stainless steel grade |
| Working load (kg) | 320 | 400 | 600 | 1000 | 1520 |
| WLL (kg) | 140 | 200 | 320 | 540 | 860 |
| Breaking load (kg) | 700 | 1000 | 1600 | 2700 | 4300 |
| Weight (g) | 8 | 17 | 27 | 66 | 128 |

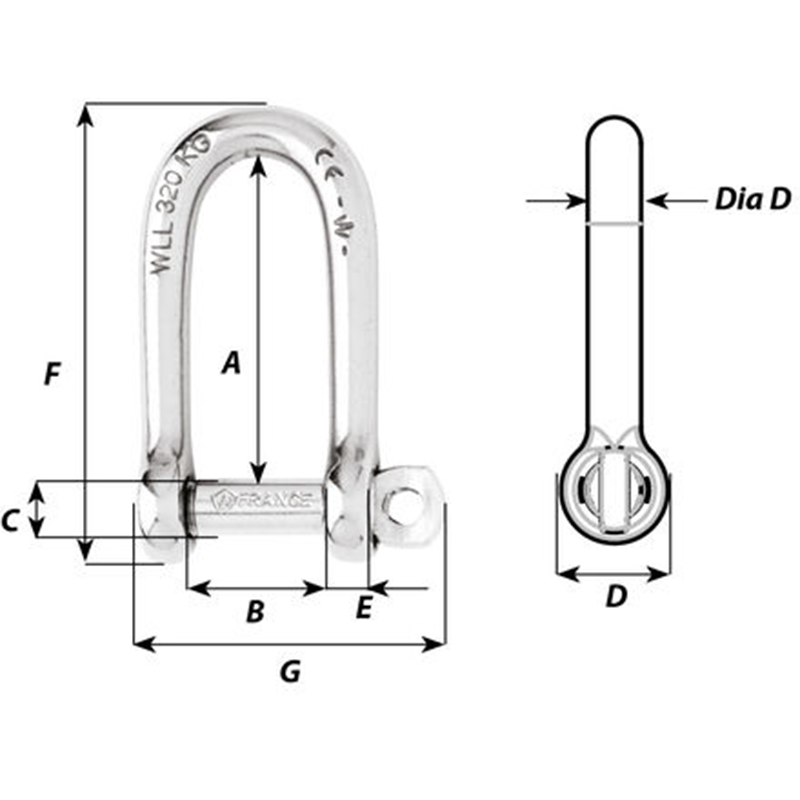

| A (mm) | 22 | 29 | 33 | 45 | 55 |
| B (mm) | 8 | 10 | 12 | 16 | 20 |
| C (mm) | 4 | 5 | 6 | 8 | 10 |
| D (mm) | 8 | 10 | 12 | 16 | 19 |
| D diameter (mm) | 4 | 5 | 6 | 8 | 10 |
| E (mm) | 4 | 4 | 5 | 7 | 9 |
| F (mm) | 32 | 41 | 47 | 64 | 79 |
| G (mm) | 21 | 26 | 31 | 41 | 52 |
