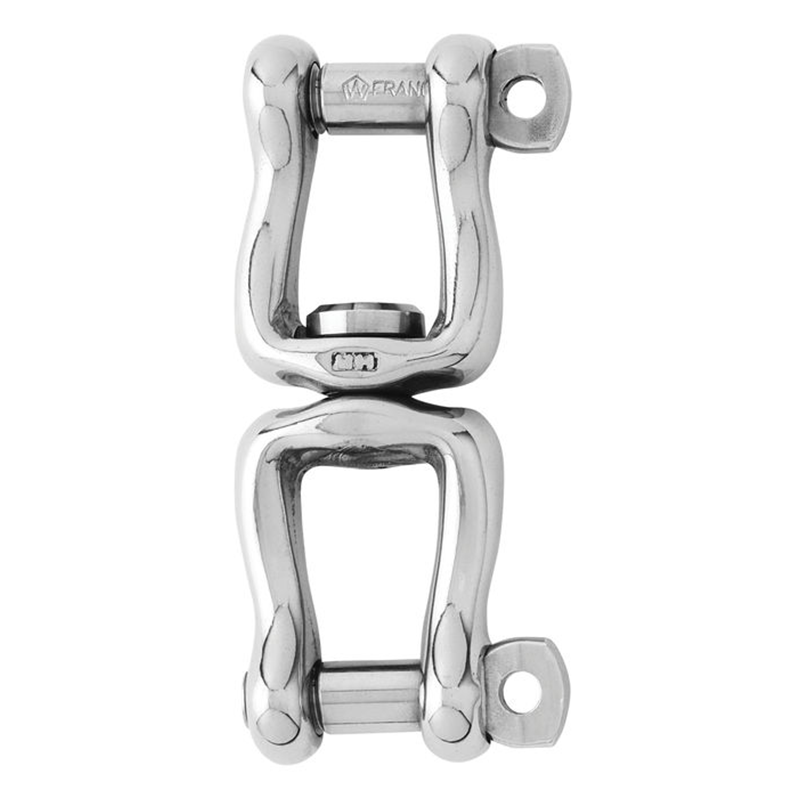

Wichard Self Locking Swivels

$89.95$199.95 incl GST


Wichard Self Locking Swivels:

  • HR forged swivel (17.4 Ph) with two openings.
  • With self-locking pin.
  • Outstanding working and breaking loads.


  • Link two pieces which have different rotation.
  • Do not use for mooring applications.

Working load (WL): for nautical applications

Working Load Limit (WLL): for industrial applications only.
The safety factor is 5 times the breaking load.
WLL = Breaking load / 5


Wichard Self Locking Swivel24632469
MaterialsHR 17.4 PH stainless steel gradeHR 17.4 PH stainless steel grade
Length (mm)80120
Working load (kg)14402000
Breaking load (kg)28005000
Weight (g)102322

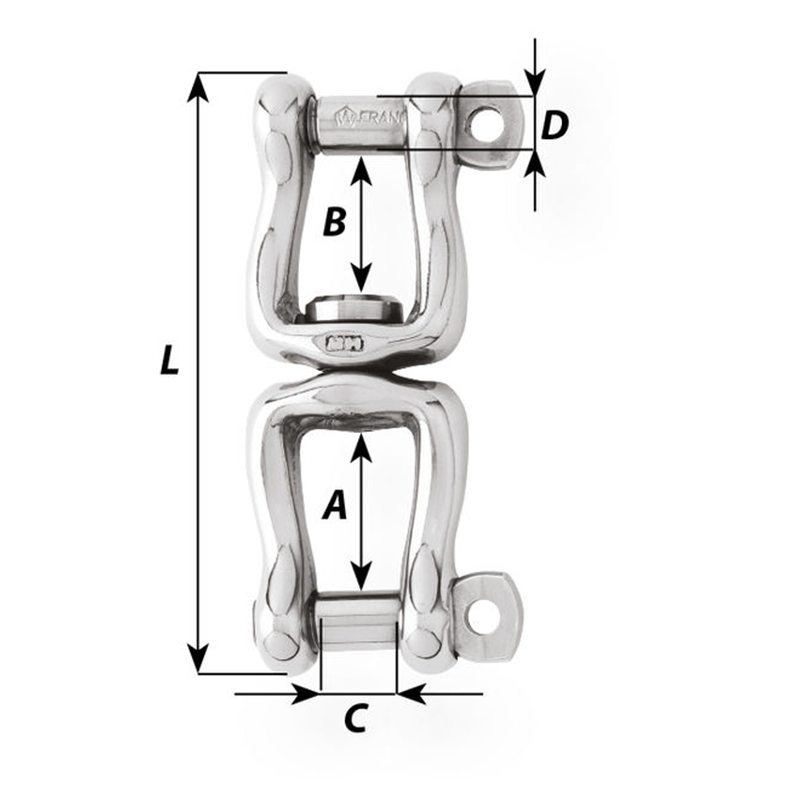

A (mm)2030
B (mm)1727
C (mm)1118
D diameter (mm)810

Additional information

Weight .2 kg
Dimensions 10 × 10 × 10 cm

2463 / 80mm, 2469 / 120mm
