Description

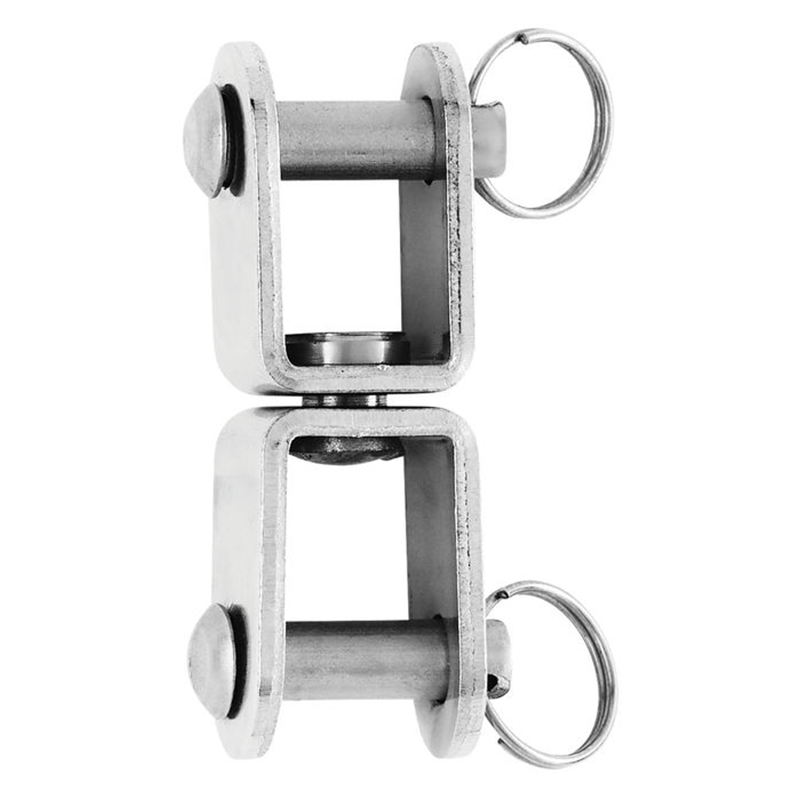

Wichard Stainless Steel Fork Swivels (Cambered Plate):
- Fork-Fork swivel (not forged).
- Cost savings.
Applications:
- For dinghies.
- Low load applications (tiller extensions…).
- Do not use for mooring applications.
Working load (WL): for nautical applications.
Working Load Limit (WLL): for industrial applications only.
The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
| Wichard Cambered Swivel | 2461 | 2462 |
|---|---|---|
| Materials | 316L stainless steel grade | 316L stainless steel grade |
| Length (mm) | 45 | 60 |
| Working load (kg) | 480 | 720 |
| Breaking load (kg) | 1000 | 1400 |
| Weight (g) | 26 | 52 |

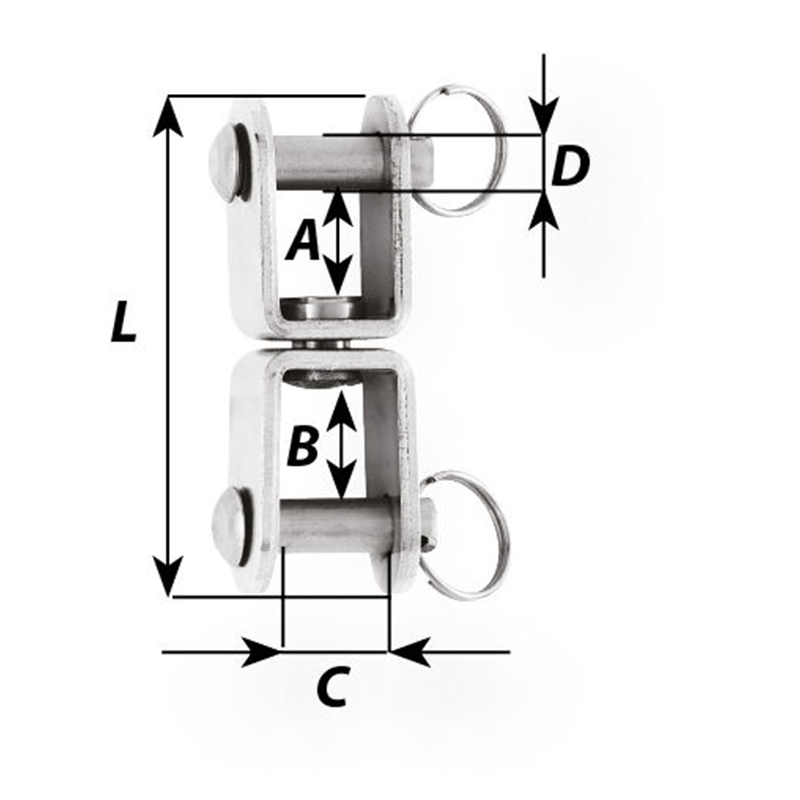

| A (mm) | 9 | 15 |
| B (mm) | 10 | 13 |
| C (mm) | 10 | 12 |
| D diameter (mm) | 5 | 6 |
