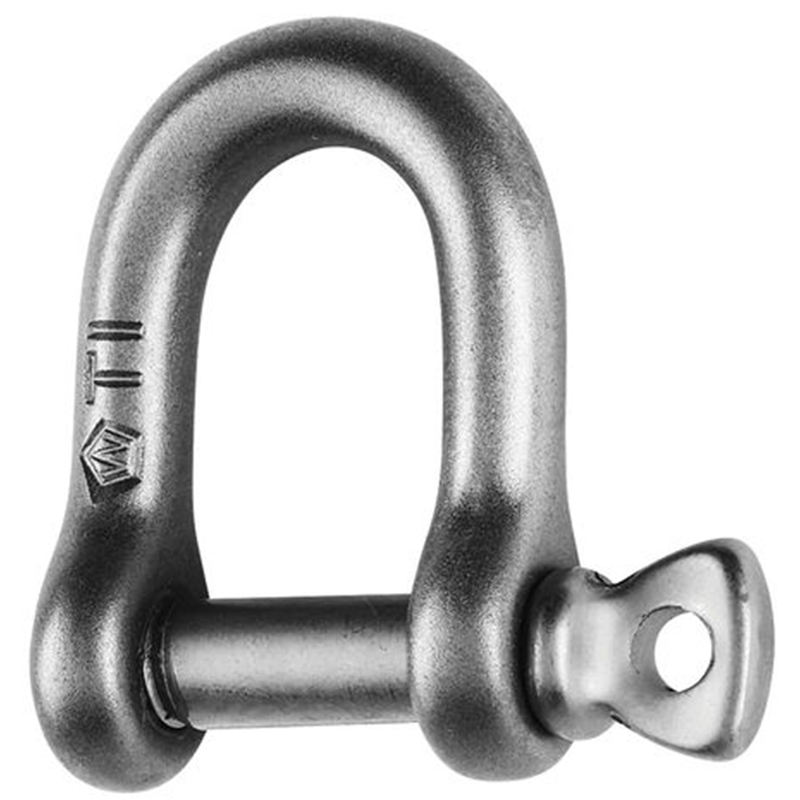

Wichard Titanium Standard D Shackles

$219.95$259.95 incl GST

Description

Wichard Titanium Standard D Shackles:

  • Forged titanium D shackle.
  • 40% weight saving compared to a standard shackle.
  • Perfect for competition.

Applications:

  • Competition.
  • Applications requesting high corrosion resistance.
Working load (WL): for nautical applications

Working Load Limit (WLL): for industrial applications only.
The safety factor is 5 times the breaking load.
WLL = Breaking load / 5

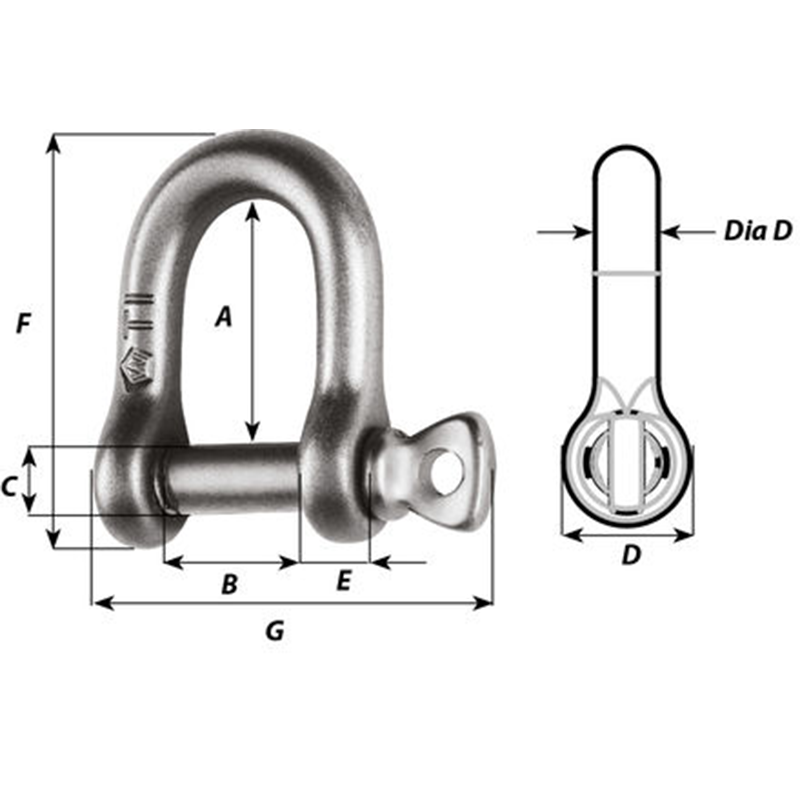

Titanium Shackles5120351204
MaterialsTitaniumTitanium
Working Load (kg)8801440
Breaking load (kg)17003000
Weight (g)1434
A (mm)2026
B (mm)1216
C (mm)68
D (mm)1216
D diameter (mm)68
E (mm)57
F (mm)3547
G (mm)3546

Additional information

Weight .2 kg
Dimensions 10 × 10 × 10 cm
Size:

51203 / 6mm, 51204 / 8mm
