Description

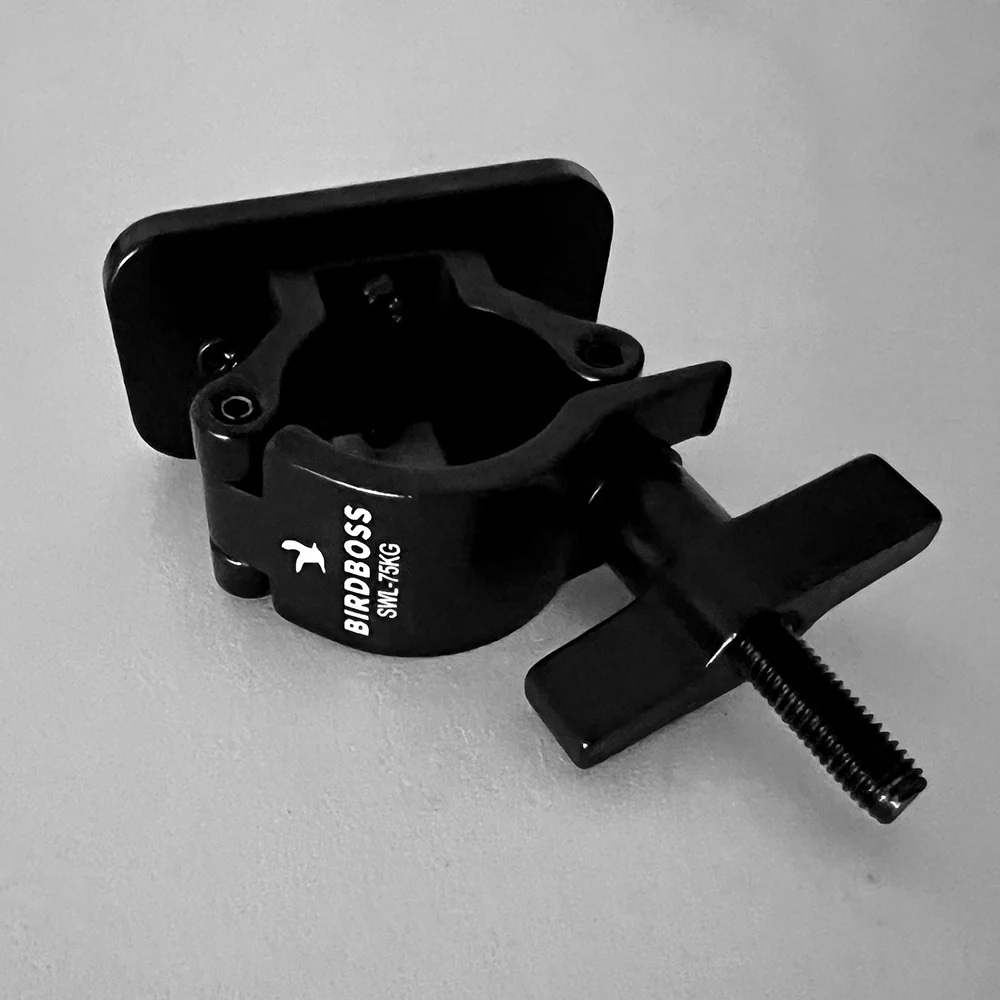

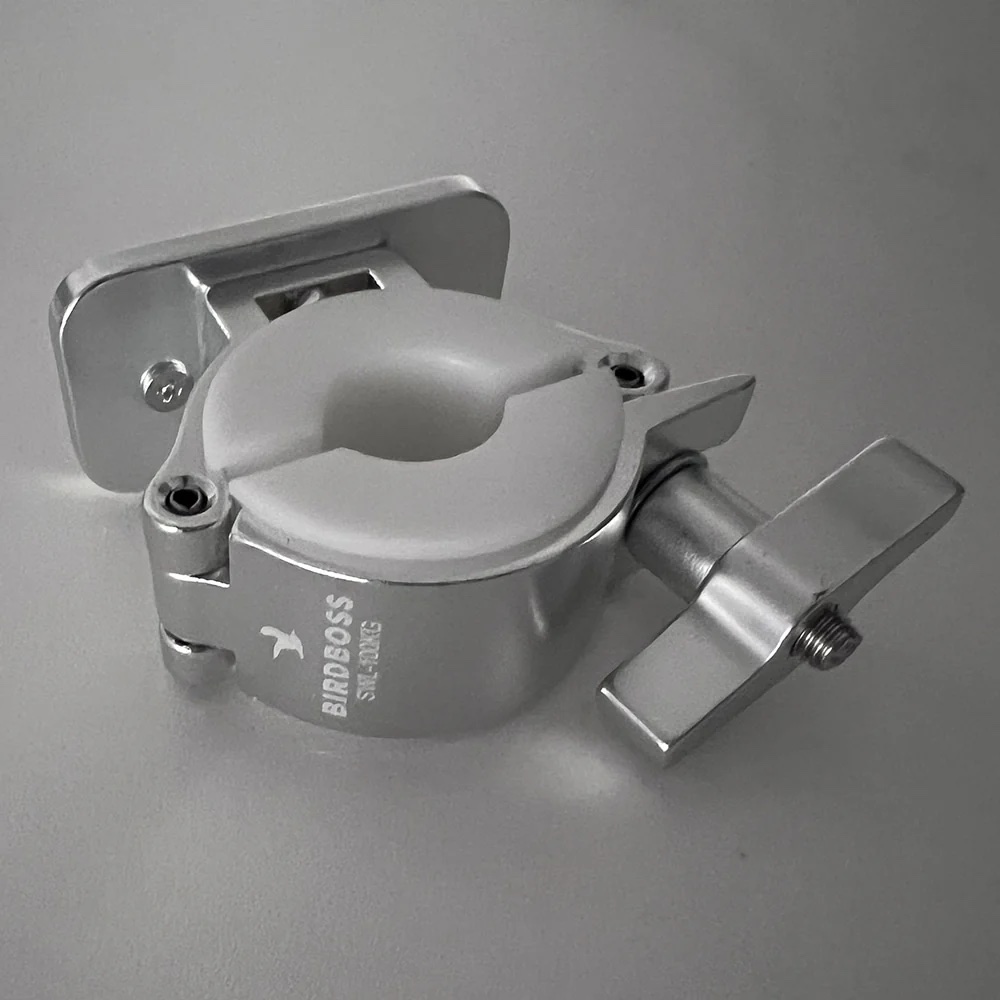

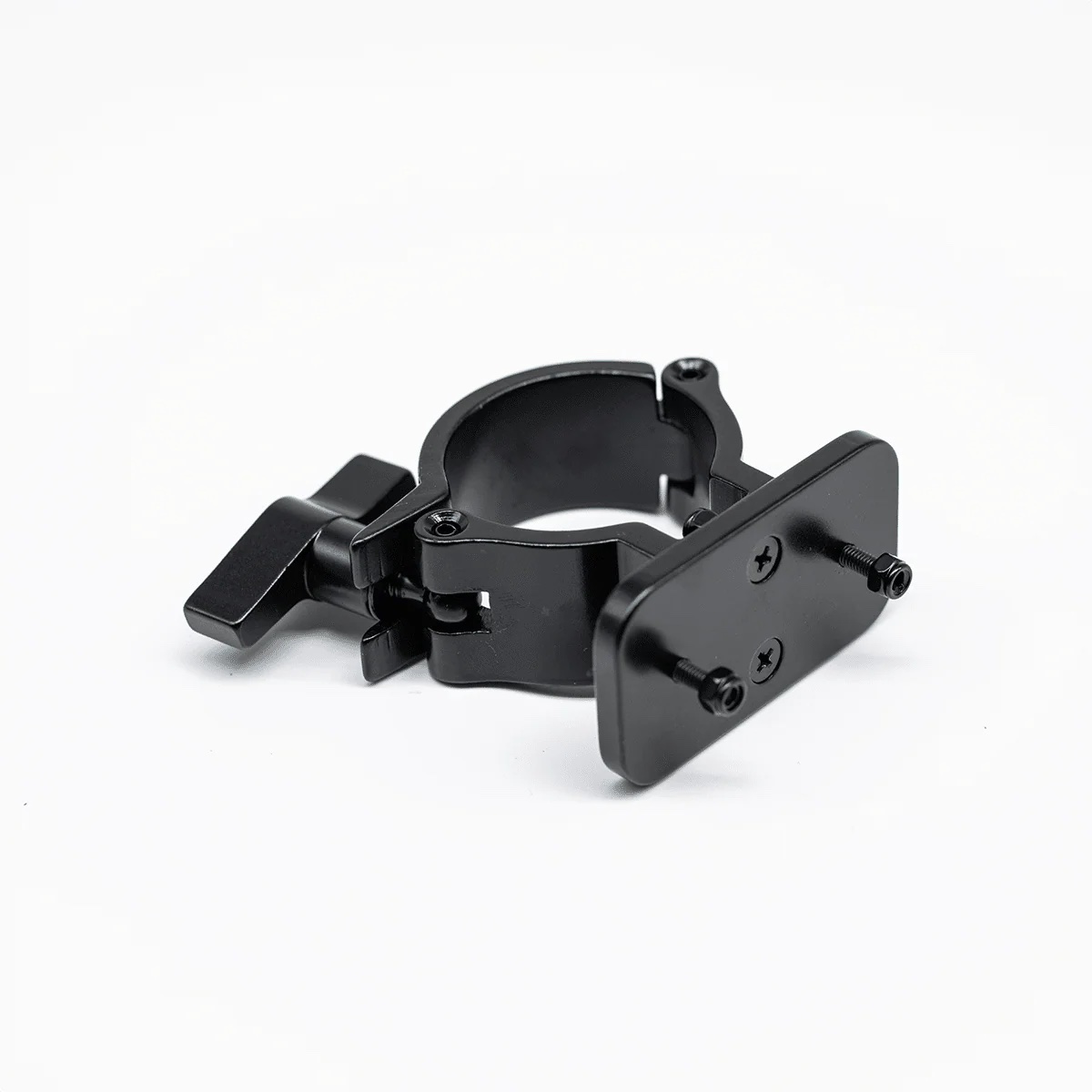

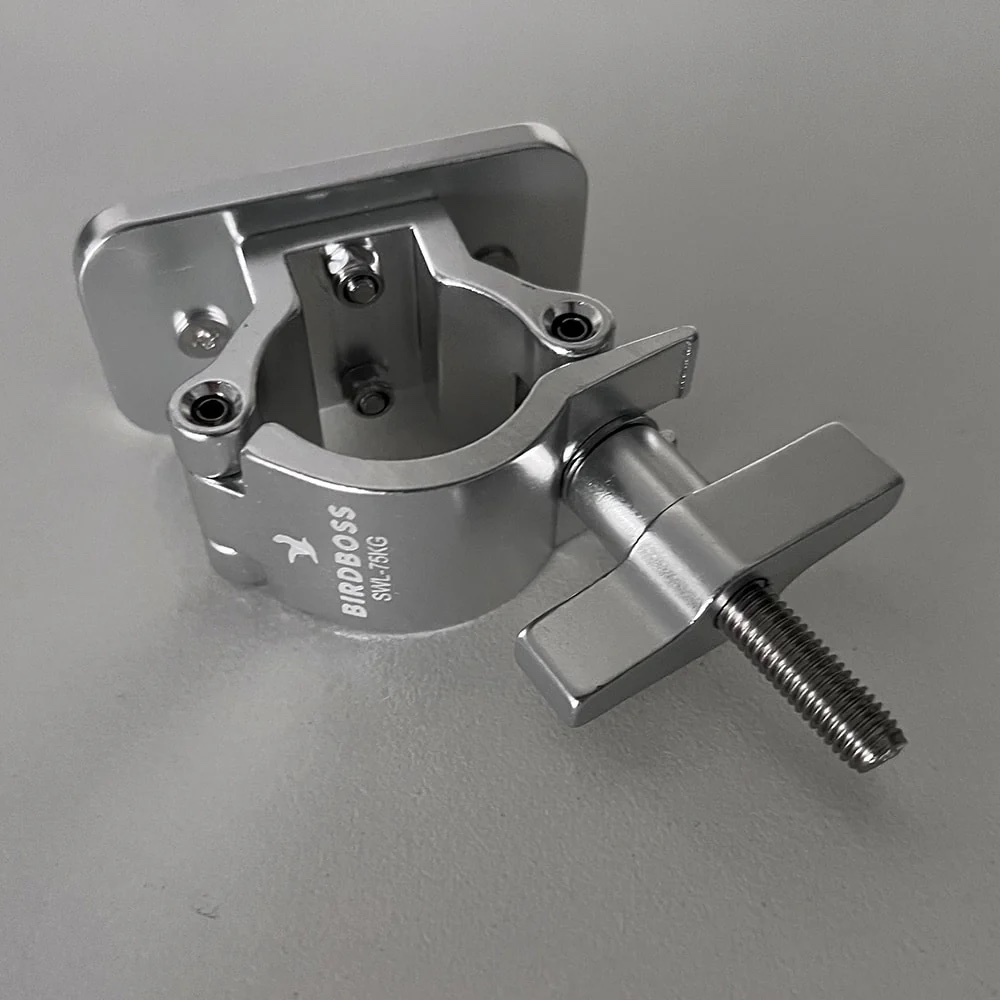

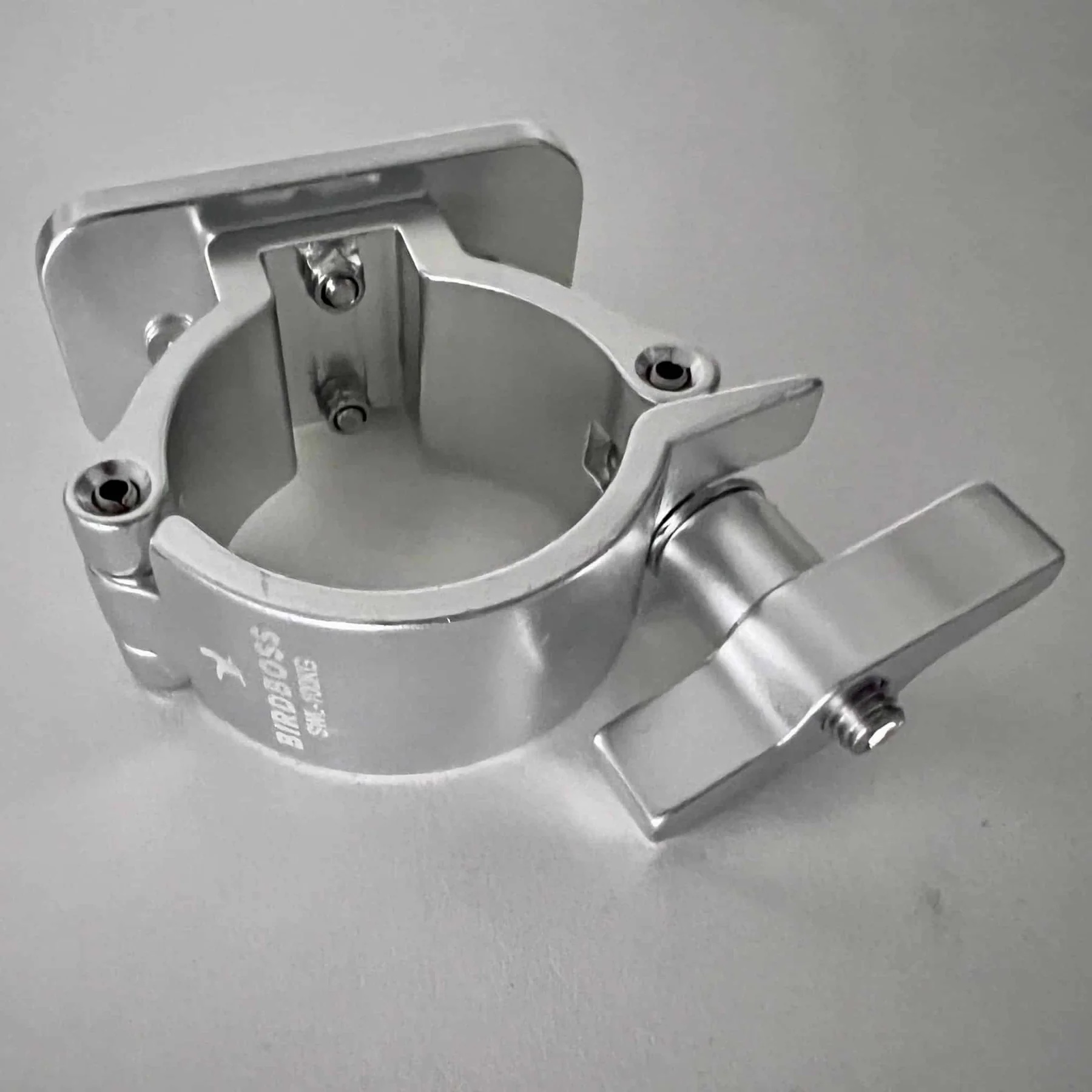

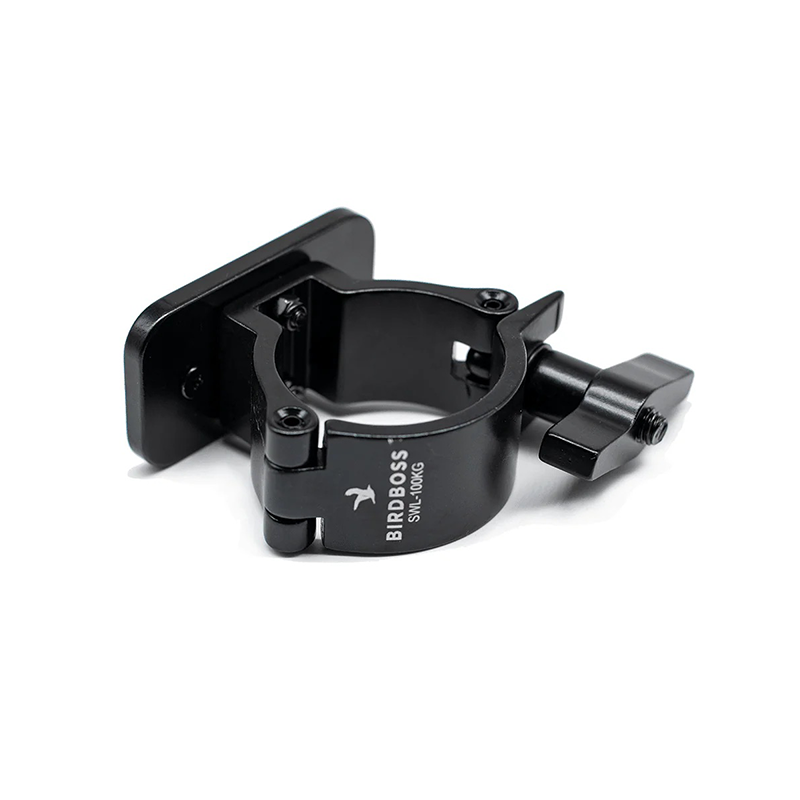

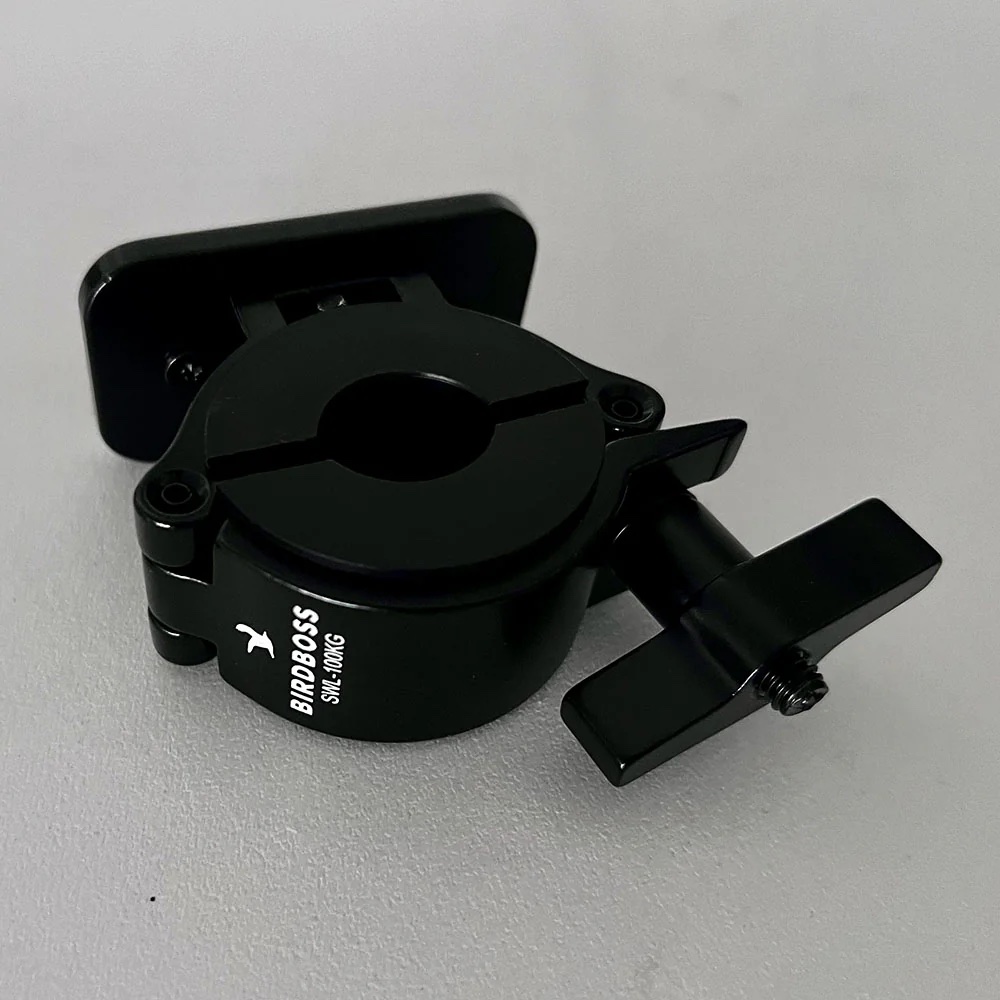

Birdboss Rail Mount Clamps:
BirdBoss Rail Clamp Kits
• 2 Clamps for $130 (save $10)
• 3 Clamps for $180 (save $30)
The Birdboss Rail Mount Clamps are a premium mounting solution designed for durability, ease of use, and a sleek look. Crafted from high-grade aluminium and corrosion-resistant 316 stainless steel, it delivers reliable performance even in harsh marine or outdoor environments.
Key Features
-
Durable Construction – Built with aluminium and stainless steel for long-lasting strength.
-
Fully Adjustable – Rotate and level your BirdBoss effortlessly for optimal deterrence.
-
Style Options – Available in silver or black to complement any setting.
-
Easy Installation – Mount the Pivot Post with just two screws.
-
Quick Removal – Detach easily for storage when not in use.
Combining functionality, resilience, and modern design, the Birdboss Rail Mount Clamps are the perfect companion for anyone seeking a professional, adaptable solution to keep birds away.
Maintenance Notice:
For smooth operation and corrosion prevention, clean threads before assembly and apply a marine-grade anti-seize such as TEF-GEL®. For added protection, finish with a lanolin-based corrosion inhibitor like Lanotec or WD-40 Specialist Rust Prevention Lanolin.
Installation Videos
Watch our step-by-step guides on how to correctly install and use your Birdboss system — including all mounting methods and maintenance tips.
Fixing Pivot Base
Fixing Flush Mount
Fixing Rail Clamp
Alternate Fixing
Filling Sandbag Mount
Putting on Sails
Follow these step-by-step instructions for secure installation of your Birdboss system on both wooden and fibreglass surfaces.
For Wooden Surfaces
- Preparation: Identify the exact location where the Birdboss will be mounted.
- Drill a Pilot Hole: Using a drill, make a pilot hole slightly smaller than the supplied screws.
- Lubricate the Screw: Apply a small amount of wax, varnish, or soap to the screw threads to ensure smooth installation and prevent wood splitting.
- Secure the Birdboss: Align the base with the pilot hole and screw it in securely. Ensure it’s level before tightening.
- Final Check: Avoid overtightening to prevent damage to the wood. Confirm the base is firmly attached.
For Fibreglass Surfaces
- Preparation: Apply masking tape over the installation area to prevent gel coat flaking.
- Mark and Drill a Pilot Hole: Drill a 3.5–4.0mm pilot hole at your marked point on the tape.
- Countersink the Hole: Slightly flare the hole using a countersink bit to avoid surface cracks.
- Apply Sealant (Optional): Use sealant on the screw for extra waterproofing and hold.
- Install the Birdboss: Position the base or flush mount and tighten the screws carefully — do not overtighten.
Adjusting the Pivot Post
- Post Installation: Ensure the pivot and arms are clear of all obstructions.
- Securing the Pivot Post: Once positioned correctly, tighten the post using an Allen key.
Final Check
- Confirm the Birdboss is stable and securely attached.
- Wipe away any excess sealant or lubricant.
Important Notes
- Do not over-tighten screws on any surface — this may cause damage.
- Regularly check that the pivot post remains secure and well-adjusted.
- Remove Birdboss when under way or during extreme winds (over 40 knots).
Need help? Contact our support team for installation guidance or product assistance.
Congratulations on installing your Birdboss — enjoy effective and hassle-free bird protection!
Maintenance
Follow these care steps to prevent galling and galvanic corrosion between aluminium and stainless steel components in marine environments.
Rail Clamps – Aluminium & Stainless Steel
- 1) Clean Threads Thoroughly: Before assembly, ensure all threaded components are clean and free of salt, grit, or old lubricant.
- 2) Apply Anti-Seize / Anti-Corrosion Compound: Coat all threaded connections to prevent galling and galvanic corrosion.
- 3) Protect Exposed Surfaces: Apply a lanolin-based corrosion inhibitor to external faces for added moisture and salt protection.
- 4) Regular Inspection: After saltwater exposure or harsh weather, check for corrosion or wear and reapply products as needed.
Tip: Avoid copper-based anti-seize on aluminium + stainless combinations — it can accelerate galvanic corrosion.
Recommended Products
- Primary Anti-Seize: TEF-GEL® Anti-Seize & Corrosion Inhibitor — marine-grade, PTFE-based; isolates dissimilar metals, resists saltwater corrosion, and prevents thread seizure without drying out.
Alternatives (Nickel-based)
- Loctite LB 771 Nickel Anti-Seize (500 g)
- CRC Nickel Anti-Seize (75 ml)
- Devcon Stop Seize Nickel Anti-Seize (500 g)
Lanolin-Based Corrosion Inhibitors
- Lanotec Heavy Duty Liquid Lanolin (600 ml)
- WD-40 Specialist Rust Prevention Lanolin (300 g)
For best results: clean, apply TEF-GEL® on threads during assembly, then mist exposed surfaces with lanolin. Re-inspect periodically.
