Description
- Small Boat CB traveler cars fit dinghies, keelboats, beach-cats, and offshore boats to 8 m (27 ft).
- Harken ball bearing traveler and genoa lead cars with multipart purchases allow easy adjustment of loaded sails from the cockpit.
- Whether racing or cruising, these smooth- rolling systems pay huge dividends in sail control and are safer and faster than playing the sheet.
- Track comes in low- and high-beam configurations and is predrilled with holes for mounting fasteners.

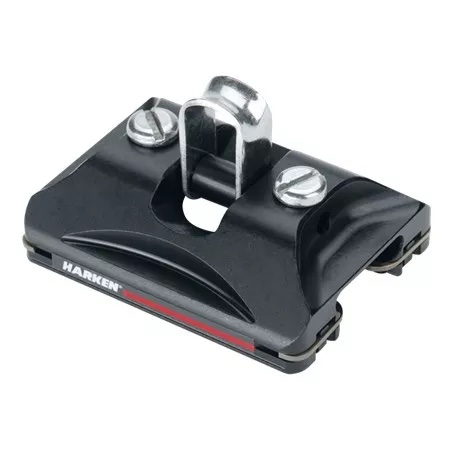

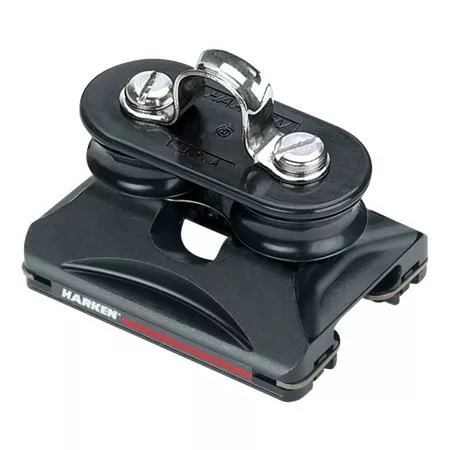

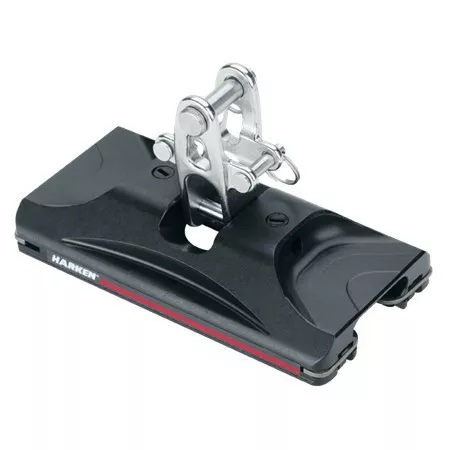

| Harken 22mm Small Boat Traveller Cars | 2726 | 2727 | 2728 | 2729 | 2730 | 2731 | 2732 | 2733 | 2734 | 2735 | 2736 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Height (mm) | 43 mm | 43 mm | |||||||||
| Height (in) | 1 11/16 in | 1 11/16 in | |||||||||
| Length (mm) | 73 mm | 73 mm | 73 mm | 2 7/8 in | 73 mm | 2 7/8 in | 73 mm | 2 7/8 in | 6 3/4 in | 105 mm | 105 mm |
| Length (in) | 2 7/8 in | 2 7/8 in | 2 7/8 in | 73 mm | 2 7/8 in | 73 mm | 2 7/8 in | 73 mm | 171 mm | 4 1/8 in | 4 1/8 in |
| Width (mm) | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm | 80 mm | 57 mm | 57 mm |
| Width (in) | 2 1/4 in | 2 1/4 in | 2 1/4 in | 2 1/4 in | 2 1/4 in | 2 1/4 in | 2 1/4 in | 2 1/4 in | 3 1/8 in | 2 1/4 in | 2 1/4 in |
| Weight (g) | 132 g | 24 mm | 159 g | 159 g | 145 g | 145 g | 113 g | 113 g | 422 g | 191 g | 200 g |
| Weight (oz) | 4.64 oz | 15/16 in | 5.6 oz | 5.6 oz | 5.12 oz | 5.12 oz | 4 oz | 4 oz | 14.88 oz | 6.72 oz | 7.04 oz |
| Maximum working load (kg) | 227 kg | 132 g | 227 kg | 386 kg | 227 kg | 386 kg | 227 kg | 386 kg | 386 kg | 567 kg | 567 kg |
| Maximum working load (lb) | 500 lb | 4.64 oz | 500 lb | 850 lb | 500 lb | 850 lb | 500 lb | 850 lb | 850 lb | 1250 lb | 1250 lb |
| Breaking load (kg) | 1134 kg | 386 kg | 1134 kg | 1134 kg | 1134 kg | 1134 kg | 1134 kg | 1134 kg | 1134 kg | 2500 lb | 2500 lb |
| Breaking load (lb) | 2500 lb | 850 lb | 2500 lb | 2500 lb | 2500 lb | 2500 lb | 2500 lb | 2500 lb | 2500 lb | 1134 kg | 1134 kg |
| Car body height (mm) | 24 mm | 1134 kg | 24 mm | 1.07 m | 24 mm | 1.07 m | 24 mm | 1.07 m | 1.07 m | 24 mm | 2.03 m |
| Car body height (in) | 15/16 in | 2500 lb | 15/16 in | 3.5 ft | 15/16 in | 3.5 ft | 15/16 in | 3.5 ft | 3.5 ft | 15/16 in | 6.67 ft |
| Minimum curved track radius (m) | 1.07 m | 1.07 m | 1.07 m | 24 mm | 1.07 m | 24 mm | 1.07 m | 24 mm | 24 mm | 2.03 m | 24 mm |
| Minimum curved track radius (ft) | 3.5 ft | 3.5 ft | 3.5 ft | 15/16 in | 3.5 ft | 15/16 in | 3.5 ft | 15/16 in | 15/16 in | 6.67 ft | 15/16 in |
| Mainsheet block pin Ø (mm) | 5 | 5 | 6 | ||||||||
| Mainsheet block pin Ø (in) | 3/16 in | 3/16 in | 1/4 in | ||||||||
| Control block pin Ø (mm) | 4 mm | 4 mm | 4 mm | ||||||||
| Control block pin Ø (in) | 5/32 in | 5/32 in | 5/32 in |

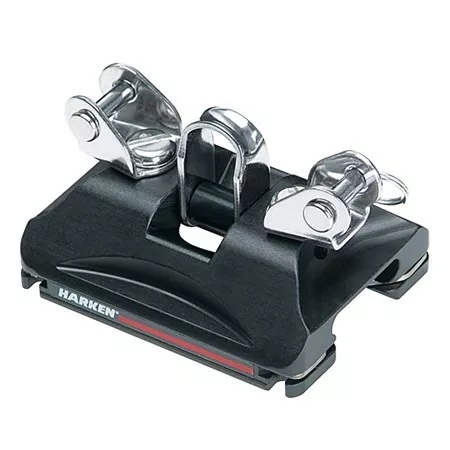

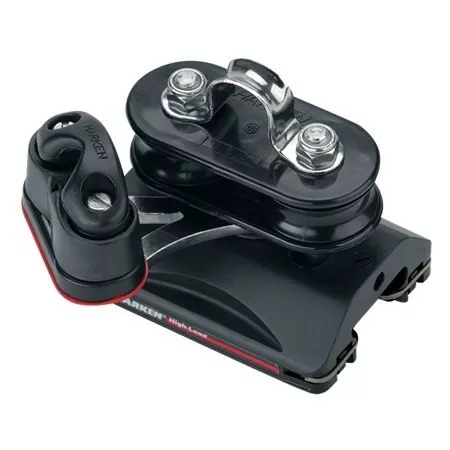

| Harken 22mm Small Boat Traveller Cars 2 | 2753 | 2754 | 2756 | 2757 | 2765 | 2766 | 2768 |
|---|---|---|---|---|---|---|---|
| Length (mm) | 73 mm | 73 mm | 73 mm | 105 mm | 105 mm | 105 mm | 73 mm |
| Length (in) | 2 7/8 in | 2 7/8 in | 2 7/8 in | 4 1/8 in | 4 1/8 in | 4 1/8 in | 2 7/8 in |
| Width (mm) | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm | 156 mm | 57 mm |
| Width (in) | 2 1/4 in | 2 1/4 in | 2 1/4 in | 2 1/4 in | 2 1/4 in | 6 1/8 in | 2 1/4 in |
| Weight (g) | 150 g | 150 g | 279 g | 401 g | 272 g | 630 g | 104 g |
| Weight (oz) | 5.28 oz | 5.28 oz | 9.84 oz | 14.18 oz | 9.6 oz | 22.22 oz | 4 oz |
| Maximum working load (kg) | 227 kg | 386 kg | 386 kg | 567 kg | 567 kg | 567 kg | 386 kg |
| Maximum working load (lb) | 500 lb | 850 lb | 850 lb | 1250 lb | 1250 lb | 1250 lb | 850 lb |
| Breaking load (kg) | 1134 kg | 1134 kg | 2500 lb | 1134 kg | 1134 kg | 2500 lb | 1134 kg |
| Breaking load (lb) | 2500 lb | 2500 lb | 1134 kg | 2500 lb | 2500 lb | 1134 kg | 2500 lb |
| Car body height (mm) | 24 mm | 24 mm | 24 mm | 24 mm | 24 mm | 24 mm | 24 mm |
| Car body height (in) | 15/16 in | 15/16 in | 15/16 in | 15/16 in | 15/16 in | 15/16 in | 15/16 in |
| Minimum curved track radius (m) | 1.07 m | 1.07 m | 1.07 m | 2.03 m | 2.03 m | 2.03 m | 1.07 m |
| Minimum curved track radius (ft) | 3.5 ft | 3.5 ft | 3.5 ft | 6.67 ft | 6.67 ft | 6.67 ft | 3.5 ft |
| Control block pin Ø (mm) | 5 mm | 5 mm | |||||
| Control block pin Ø (in) | 3/16 in | 3/16 in |
