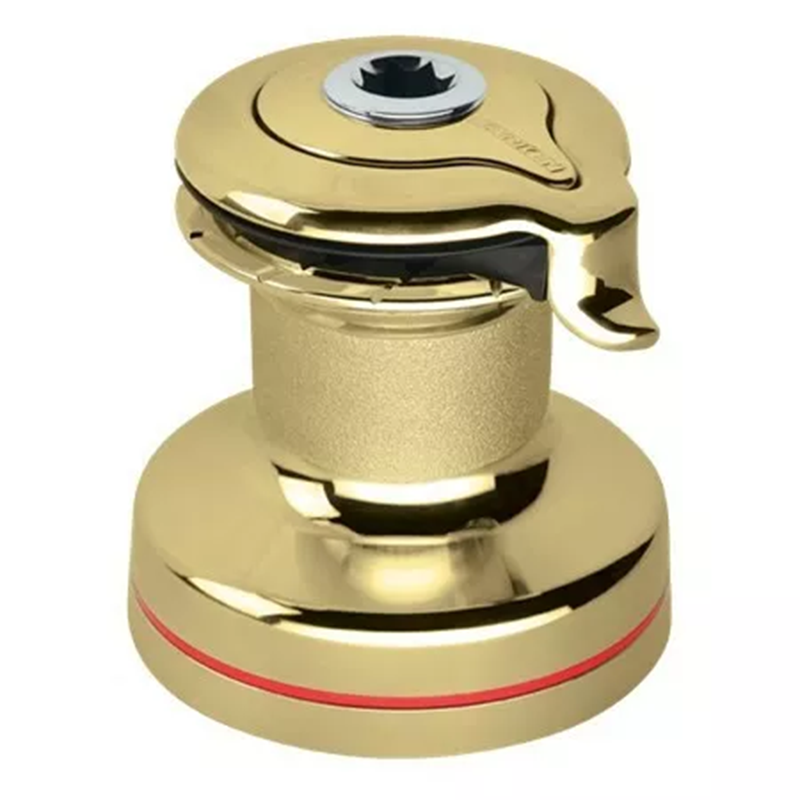

Harken Bronze Self-Tailing Radial Winches:
Harken Radial Line winches have successfully balanced the need for a secure grip and line longevity with smooth, controlled easing while under load. Details sailors will appreciate: smaller winches that carry higher loads, stress-free seasonal maintenance, and one-person installation with easy upgrades to power.
Patented angle of ribs drives line wraps down when easing to keep them on area of drum that provides best control. High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance.
Power-grip jaws shaped for easy line entry, optimum hold
Upper jaw adjusts under line pressure; accepts a variety of line sizes. Teeth grip evenly with or without load.
Adjustable stripper arm integrated into winch top for safer operation
Stripper arm completely covers rotating winch top, preventing fingers and clothing from catching in moving parts. Adjusts to multiple positions after the winch is mounted to optimise line exit.
Maximum holding power with minimum line wear
Nonabrasive diagonal ribs on gripping surface hold line securely and reduce line wear; ribs shaped for each winch size and drum material. Patented angle of ribs drives line wraps down when easing to keep them on area of drum that provides best control.
High-strength, lightweight
High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance.
Simple to install
Patented mounting system for fast, one-person installation without removing drum.
| Harken Bronze Radial Winches | 20STBBB | 35.2STBBB | 40.2STBBB | 46.2STBBB | 50.2STBBB | 60.2STBBB | 60.3STBBB | 70.2STBBB | 70.3STBBB |
|---|---|---|---|---|---|---|---|---|---|
| Weight (kg) | 3.9 kg | 5.5 kg | 6.2 kg | 8.9 kg | 10.4 kg | 15.4 kg | 16.9 kg | 16.7 kg | 18.2 kg |
| Weight (lb) | 8.6 lb | 12.1 lb | 13.7 lb | 19.6 lb | 22.9 lb | 33.9 lb | 37.3 lb | 36.8 lb | 40.1 lb |
| Maximum line Ø (mm) | 12 mm | 12 mm | 12 mm | 14 mm | 14 mm | 16 mm | 16 mm | 18 mm | 18 mm |
| Maximum line Ø (in) | 1/2 in | 1/2 in | 1/2 in | 9/16 in | 9/16 in | 5/8 in | 5/8 in | 11/16 in | 11/16 in |
| Fasteners (mm) | 6 SH mm | 6 SH mm | M6 SH mm | M8 SH mm | M8 SH mm | M8 SH mm | M8 SH mm | M8 SH mm | M8 SH mm |
| Fasteners (in) | 1/4 SH in | 1/4 SH in | 1/4 SH in | 5/16 SH in | 5/16 SH in | 5/16 SH in | 5/16 SH in | 5/16 SH in | 5/16 SH in |
| Fastener circle (mm) | 110 mm | 123 mm | 123 mm | 150 mm | 150 mm | 204 mm | 204 mm | 205 mm | 205 mm |
| Fastener circle (in) | 4 3/8 in | 4 7/8 in | 4 7/8 in | 5 7/8 in | 5 7/8 in | 8 in | 8 in | 8 1/8 in | 8 1/8 in |
| Height (mm) | 148 mm | 170 mm | 175 mm | 202 mm | 212 mm | 246 mm | 253 mm | 256 mm | 264 mm |
| Height (in) | 5 13/16 in | 6 11/16 in | 6 7/8 in | 7 15/16 in | 8 5/16 in | 9 11/16 in | 9 3/8 in | 10 1/16 in | 10 3/8 in |
| Configuration | Self-tailing | Self-tailing | Self-tailing | Self-tailing | Self-tailing | Self-tailing | Self-tailing | Self-tailing | Self-tailing |
| Speed | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 2 | 3 |
| Drum Ø (mm) | 73 mm | 80 mm | 80 mm | 100 mm | 110 mm | 120 mm | 120 mm | 130 mm | 130 mm |
| Drum Ø (in) | 2 7/8 in | 3 1/8 in | 3 1/8 in | 3 7/8 in | 4 5/16 in | 4 3/4 in | 4 3/4 in | 5 1/8 in | 5 1/8 in |
| Base Ø (mm) | 137 mm | 149 mm | 157 mm | 184 mm | 194 mm | 236 mm | 236 mm | 240 mm | 240 mm |
| Base Ø (in) | 5 3/8 in | 5 7/8 in | 6 3/16 in | 7 1/4 in | 7 5/8 in | 9 5/16 in | 9 5/16 in | 9 7/16 in | 9 7/16 in |
| Line entry height (mm) | 61 mm | 79 mm | 82 mm | 90 mm | 97 mm | 116 mm | 116 mm | 115 mm | 115 mm |
| Line entry height (in) | 2 3/8 in | 3 1/8 in | 3 1/4 in | 3 9/16 in | 3 7/8 in | 4 9/16 in | 4 9/16 in | 4 1/2 in | 4 1/2 in |
| Minimum line Ø (mm) | 6 mm | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm | 10 mm | 10 mm |
| Minimum line Ø (in) | 1/4 in | 5/16 in | 5/16 in | 5/16 in | 5/16 in | 5/16 in | 5/16 in | 3/8 in | 3/8 in |
| Number of fasteners | 5 | 5 | 5 | 5 | 5 | 6 | 6 | 6 | 6 |
| Gear ratio - 1 | 2.76 | 2.13 | 2.13 | 2.30 | 2.40 | 4.80 | 2.20 | 5.70 | 2.30 |
| Gear ratio - 2 | - | 5.65 | 6.28 | 9.17 | 10.90 | 14.40 | 4.80 | 18.50 | 5.70 |
| Gear ratio - 3 | - | - | - | - | - | - | 14.40 | - | 18.50 |
| Power ratio - 1 | 19.20 | 13.50 | 13.50 | 11.70 | 10.90 | 20.30 | 9.20 | 22.20 | 9.00 |
| Power ratio - 2 | - | 35.90 | 39.90 | 46.50 | 50.40 | 61.00 | 20.30 | 72.00 | 22.20 |
| Power ratio - 3 | - | - | - | - | - | - | 61.00 | - | 72.00 |
| Material | Bronze | Bronze | Bronze | Bronze | Bronze | Bronze | Bronze | Bronze | Bronze |
| Available power | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual |
