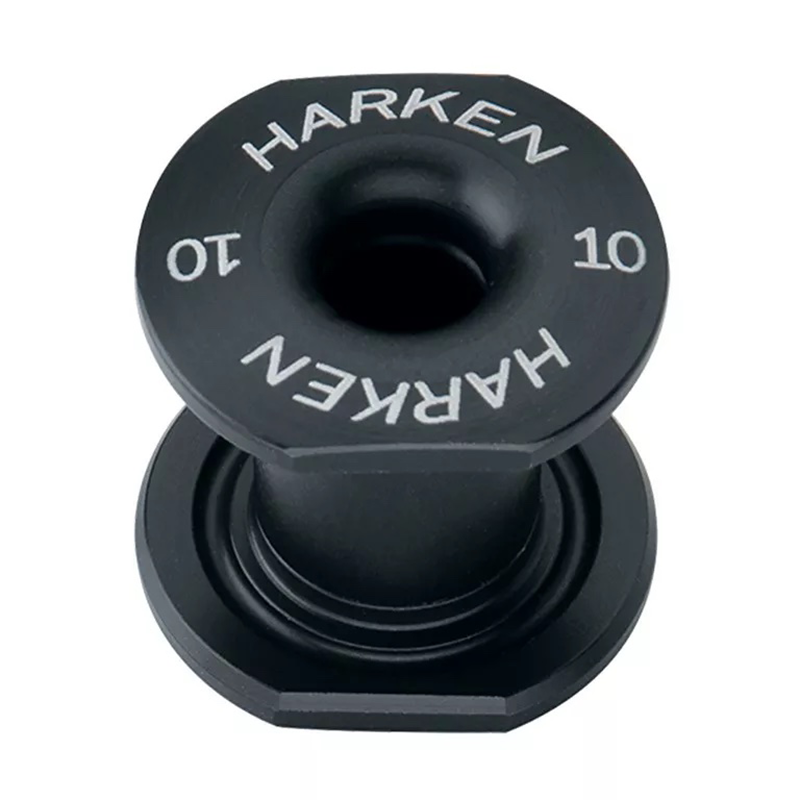

Harken Gizmo 10mm Double Through-Deck Bushes

$136.95$147.95 incl GST

Description

Harken Gizmo 10mm Double Through-Deck Bushes:

  • Double-sided through-deck bushings are perfect for installing soft-attach loops to protect line from wear and also to separate line.
Harken 10mm Double Gizmos9072.1013 - 10-13mm9072.1318 - 13-18mm9072.1828 - 18-28mm9072.2848 - 28-48mm
Weight (g)13.9 g15.2 g17.4 g21.8 g
Weight (oz)0.49 oz0.54 oz0.61 oz0.77 oz
Maximum working load (kg)700 kg700 kg700 kg700 kg
Maximum working load (lb)1540 lb1540 lb1540 lb1540 lb
Ø (mm)31.2 mm31.2 mm31.2 mm31.2 mm
Ø (in)1.228 in1.228 in1.228 in1.228 in
Center hole Ø (mm)10 mm10 mm10 mm10 mm
Center hole Ø (in)0.394 in0.394 in0.394 in0.394 in
Shaft outer Ø (mm)17 mm17 mm17 mm17 mm
Shaft outer Ø (in)0.669 in0.669 in0.669 in0.669 in
Drill size (mm)18 mm18 mm18 mm18 mm
Drill size (in)23/32 in23/32 in23/32 in23/32 in
Minimum deck thickness (mm)10 mm13 mm18 mm28 mm
Minimum deck thickness (in)0.394 in0.512 in0.709 in1.102 in
Maximum deck thickness (mm)13 mm18 mm28 mm48 mm
Maximum deck thickness (in)0.512 in0.709 in1.102 in1.890 in



Additional information

Weight .2 kg
Deck Thickness:

10-13mm, 13-18mm, 18-28mm, 28-48mm
