Description
Harken Gizmos Padeye Kits:

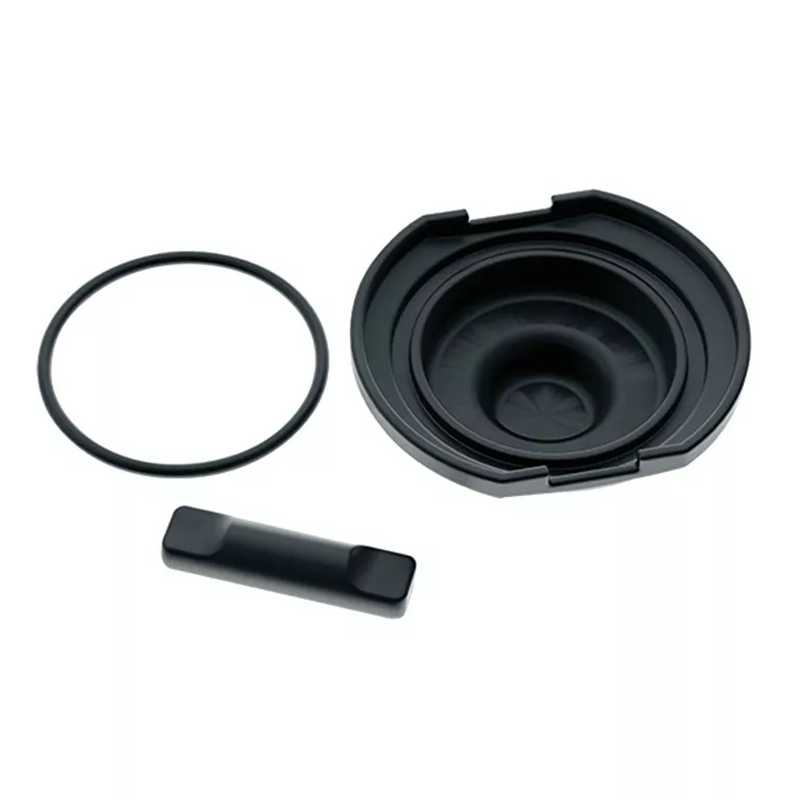

- Padeye kits include a cross pin, waterproof cap and O-ring and convert a double-sided bushing into a through-deck, watertight padeye.
- The cross pin attaches the rope/loop and the cap snaps over the top to keep water out.
| Harken Gizmos Padeye Kits | 9072 - 10mm | 9073 - 12mm | 9074 - 14mm | 9075 - 16mm |
|---|---|---|---|---|
| Weight (g) | 5.3 g | 11.6 g | 17.9 g | 23.9 g |
| Weight (oz) | 0.19 oz | 0.41 oz | 0.63 oz | 0.84 oz |
| Maximum working load (kg) | 700 kg | 1500 kg | 2300 kg | 3400 kg |
| Maximum working load (lb) | 1540 lb | 3300 lb | 5060 lb | 7480 lb |
| Use with | 2173 | 3214, 3294AL, 3366AL | 3230, 3299 | 3245, 3295AL, 3367AL |
