Description
Harken Self-Tailing Radial Aluminium Winches:
Harken Radial Line winches have successfully balanced the need for a secure grip and line longevity with smooth, controlled easing while under load. Details sailors will appreciate: smaller winches that carry higher loads, stress-free seasonal maintenance, and one-person installation with easy upgrades to power.
Patented angle of ribs drives line wraps down when easing to keep them on area of drum that provides best control. High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance.
Power-grip jaws shaped for easy line entry, optimum hold
Upper jaw adjusts under line pressure; accepts a variety of line sizes. Teeth grip evenly with or without load.
Adjustable stripper arm integrated into winch top for safer operation
Stripper arm completely covers rotating winch top, preventing fingers and clothing from catching in moving parts. Adjusts to multiple positions after the winch is mounted to optimise line exit.
Maximum holding power with minimum line wear

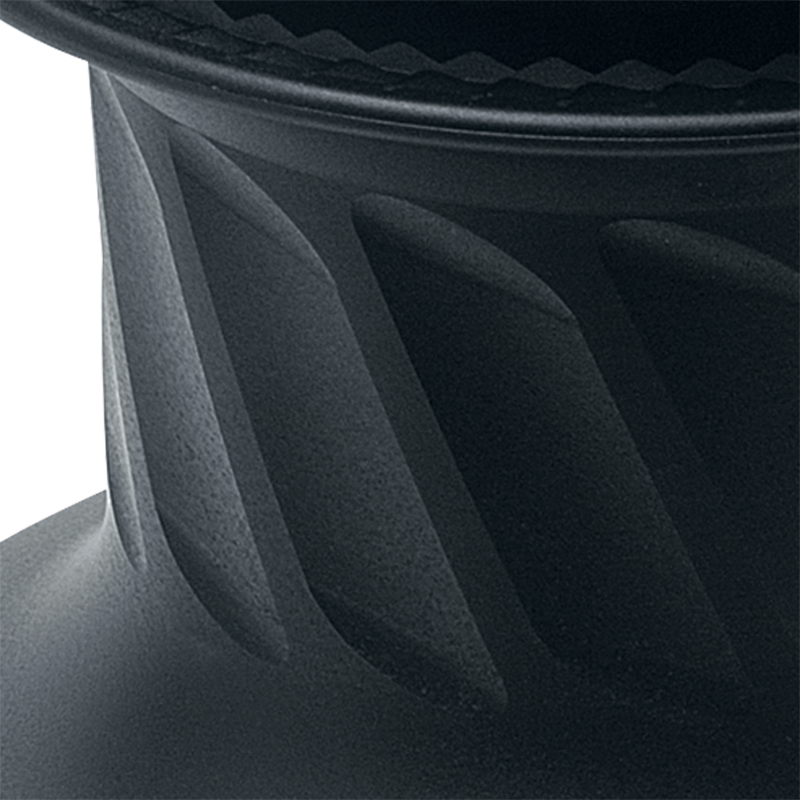

Nonabrasive diagonal ribs on gripping surface hold line securely and reduce line wear; ribs shaped for each winch size and drum material. Patented angle of ribs drives line wraps down when easing to keep them on area of drum that provides best control.
High-strength, lightweight

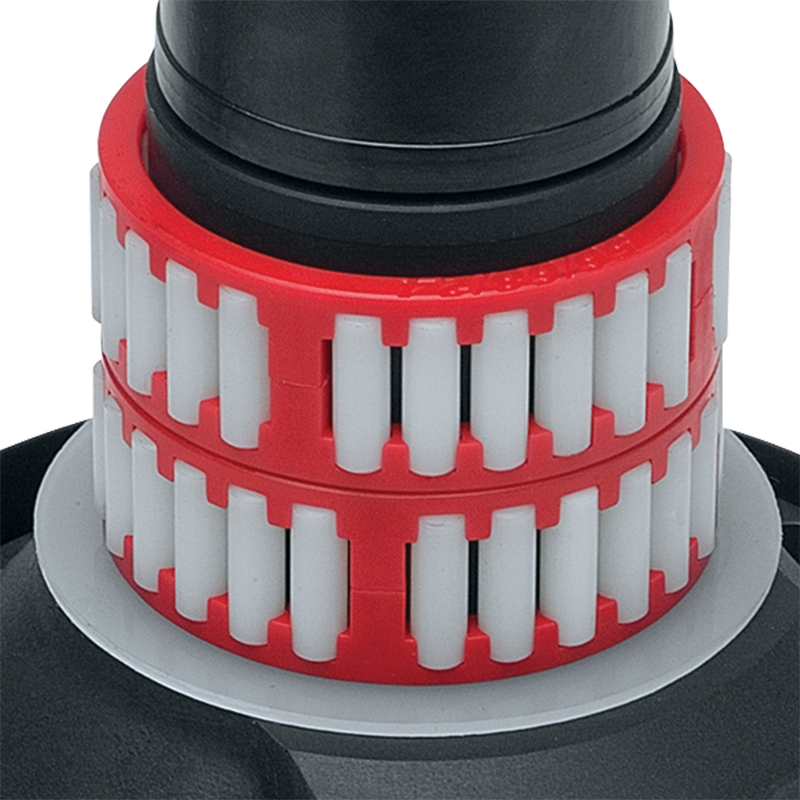

High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance.
Simple to install

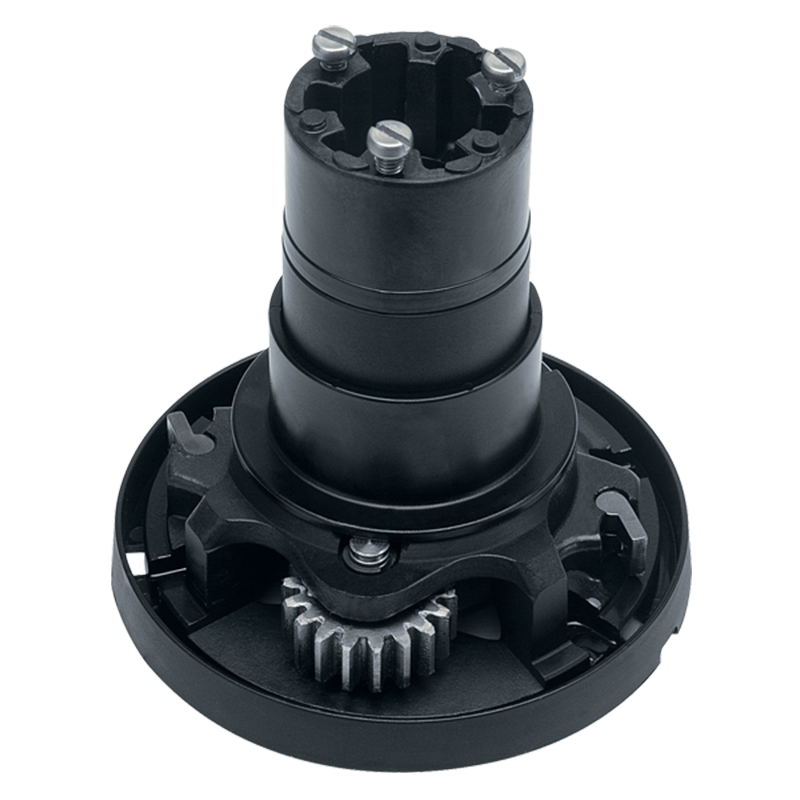

Patented mounting system for fast, one-person installation without removing drum.
| Sku | Name | Speed | Drum (D) Ø mm (in) | Base (B) Ø mm (in) | Height (H) mm (in) | Weight kg (lb) | Line Entry Height (LE) mm (in) | Min - Max Line Ø mm (in) | Fastener Circle mm (in) | Fasteners (HH or SH) mm (in) | Gear Ratio - 1 | Gear Ratio - 2 | Gear Ratio - 3 | Power Ratio - 1 | Power Ratio - 2 | Power Ratio - 3 | Available Power |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

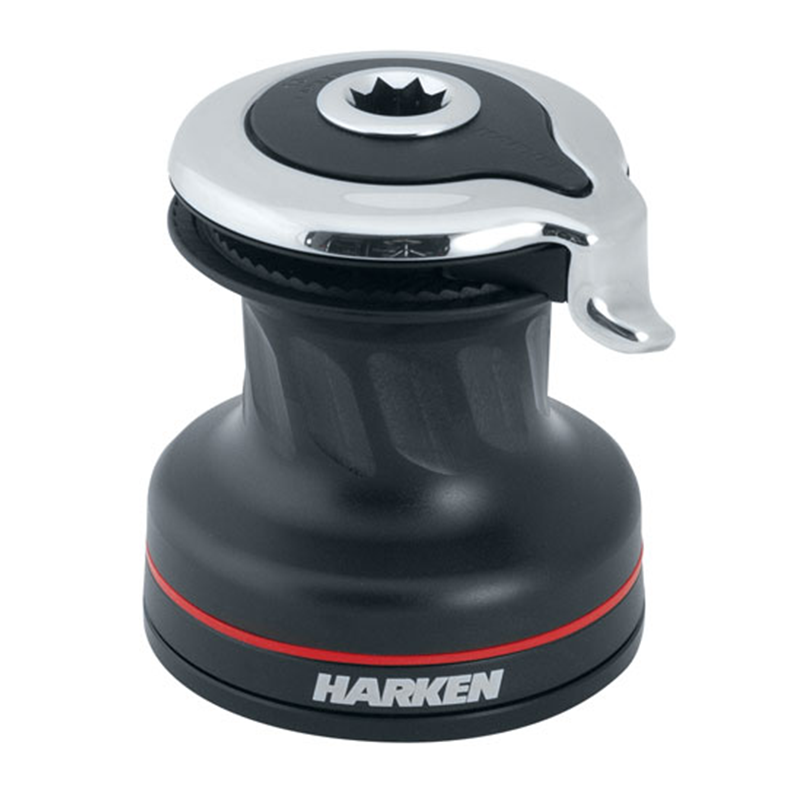

| 15STA | 15 Self-Tailing Radial Aluminum Winch | 1 | 73 (2 7/8) | 120 (4 3/4) | 139 (5 1/2) | 2.1 (4.6) | 58 (2 1/4) | 6 - 10 (1/4 - 3/8) | 100 (3 15/16) | 5 x 6 (1/4) | 2.43 | 16.90 | |||||
| 20STA | 20 Self-Tailing Radial Aluminum Winch | 1 | 73 (2 7/8) | 137 (5 3/8) | 148 (5 13/16) | 2.4 (5.3) | 61 (2 3/8) | 6 - 12 (1/4 - 1/2) | 110 (4 3/8) | 5 x 6 (1/4) | 2.76 | 19.20 | Manual | ||||

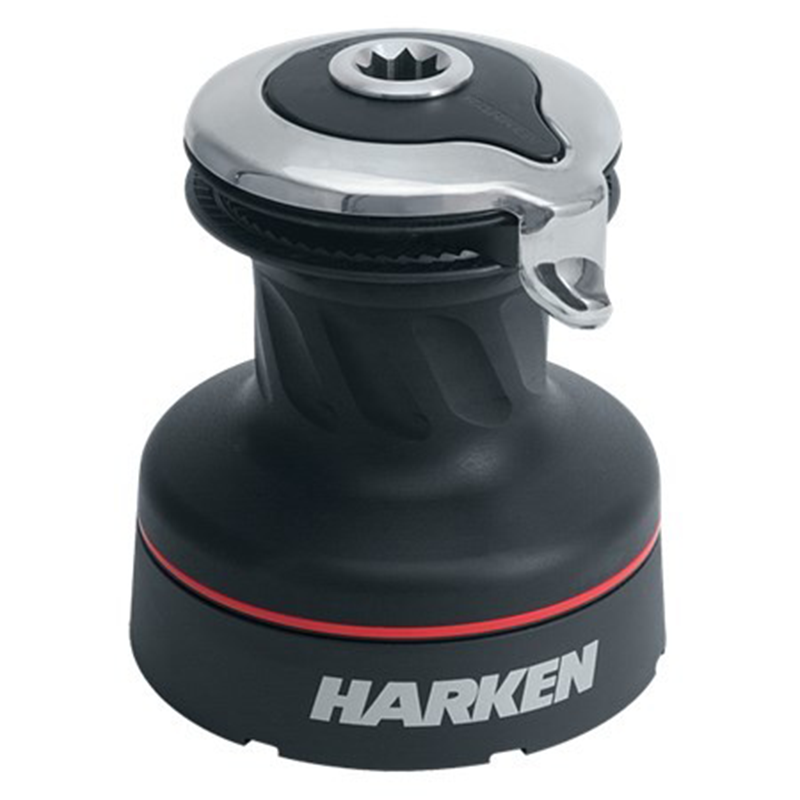

| 35.2STA | 35 Self-Tailing Radial Aluminum Winch — 2 Speed | 2 | 80 (3 1/8) | 149 (5 7/8) | 170 (6 11/16) | 3.6 (7.9) | 79 (3 1/8) | 8 - 12 (5/16 -1/2) | 123 (4 7/8) | 5 x 6 (1/4) | 2.13 | 5.65 | 13.50 | 35.90 | Manual | ||
| 40.2STA | 40 Self-Tailing Radial Aluminum Winch — 2 Speed | 2 | 80 (3 1/8) | 157 (6 3/16) | 175 (6 7/8) | 3.8 (8.4) | 82 (3 1/4) | 8 - 12 (5/16 -1/2) | 123 (4 7/8) | 5 x 6 (1/4) | 2.13 | 6.28 | 13.50 | 39.90 | Electric,Manual | ||
| 46.2STA | 46 Self-Tailing Radial Aluminum Winch — 2 Speed | 2 | 100 (3 7/8) | 184 (7 1/4) | 201 (7 15/16) | 5.2 (11.5) | 90 (3 9/16) | 8 - 14 (5/16 -9/16) | 150 (5 7/8 | 5 x M8 (5/16) | 2.30 | 9.17 | 11.70 | 46.50 | Manual | ||

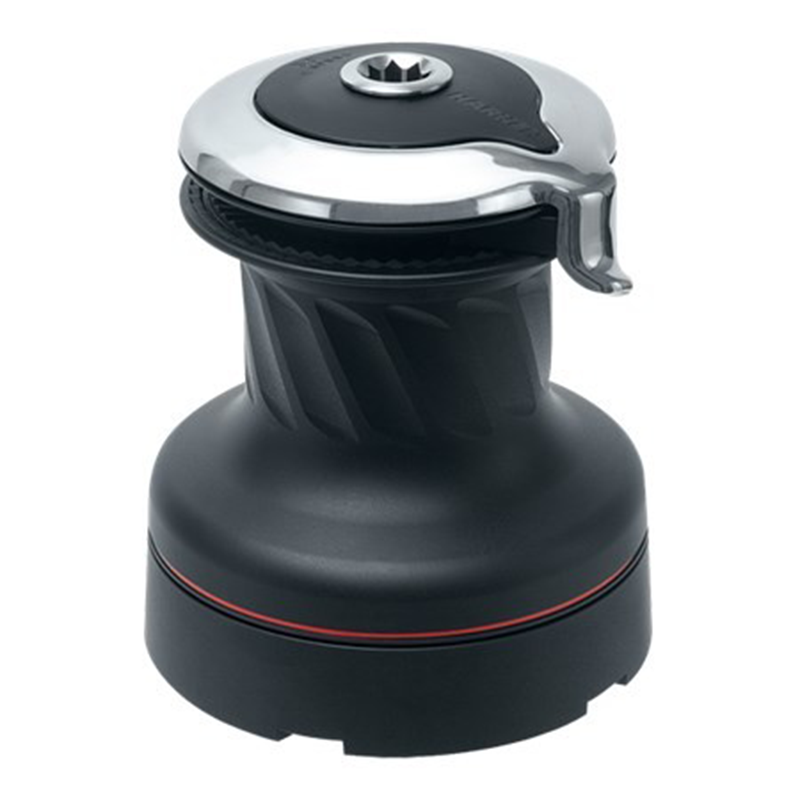

| 50.2STA | 50 Self-Tailing Radial Aluminum Winch — 2 Speed | 2 | 110 (4 5/16) | 194 (7 5/8) | 212 (8 5/16) | 6 (13.2) | 97 (3 7/8) | 8 - 14 (5/16 -9/16) | 150 (5 7/8 | 5 x M8 (5/16) | 2.40 | 10.90 | 10.90 | 50.40 | Manual | ||

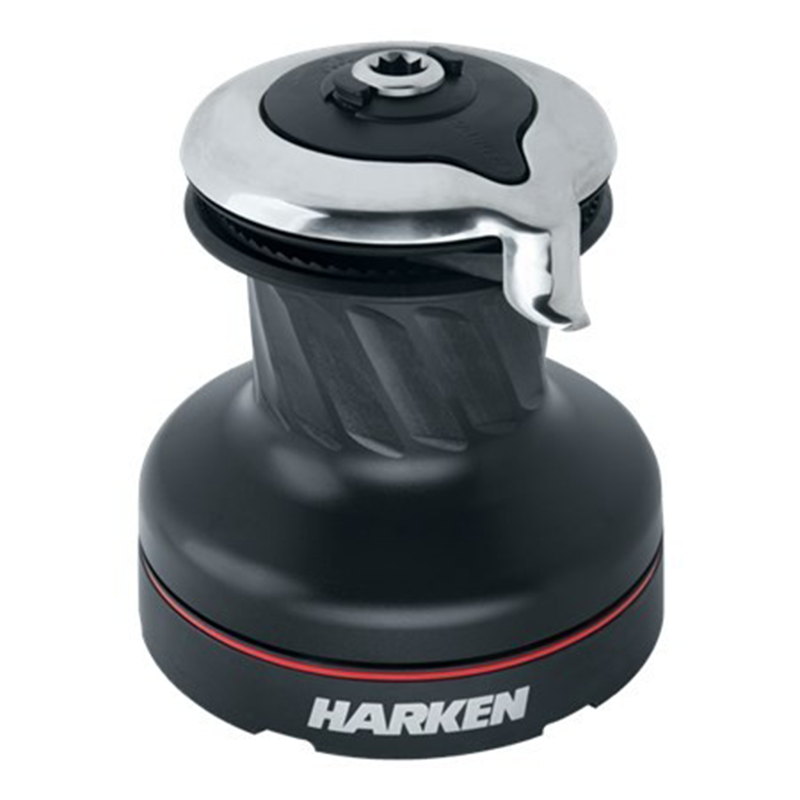

| 60.2STA | 60 Self-Tailing Radial Aluminum Winch — 2 Speed | 2 | 120 (4 3/4) | 236 (9 5/16) | 246 (9 11/16) | 10.2 (22.5) | 116 (4 9/16) | 8 - 16 (5/16 -5/8) | 204 (8) | 6 x M8 (5/16) | 4.80 | 14.40 | 20.30 | 61.00 | Manual | ||
| 60.3STA | 60 Self-Tailing Radial Aluminum Winch — 3 Speed | 3 | 120 (4 3/4) | 236 (9 5/16) | 246 (9 11/16) | 11.7 (25.8) | 116 (4 9/16) | 8 - 16 (5/16 -5/8) | 204 (8) | 6 x M8 (5/16) | 2.20 | 4.80 | 14.40 | 9.20 | 20.30 | 61.00 | Manual |
| 70.2STA | 70 Self-Tailing Radial Aluminum Winch — 2 Speed | 2 | 130 (5 1/8) | 240 (9 7/16) | 256 (10 1/16) | 11.3 (24.8) | 115 (4 1/2) | 10 - 18 (3/8 - 11/16) | 205 (18) | 6 x M8 (5/16) | 5.70 | 18.50 | 22.20 | 72.00 | Manual | ||
| 70.3STA | 70 Self-Tailing Radial Aluminum Winch — 3 Speed | 3 | 130 (5 1/8) | 240 (9 7/16) | 256 (10 1/16) | 12.8 (28.3) | 115 (4 1/2) | 10 - 18 (5/16 -11/16) | 205 (18) | 6 x M8 (5/16) | 2.30 | 5.70 | 18.50 | 9.00 | 22.20 | 72.00 | Manual |

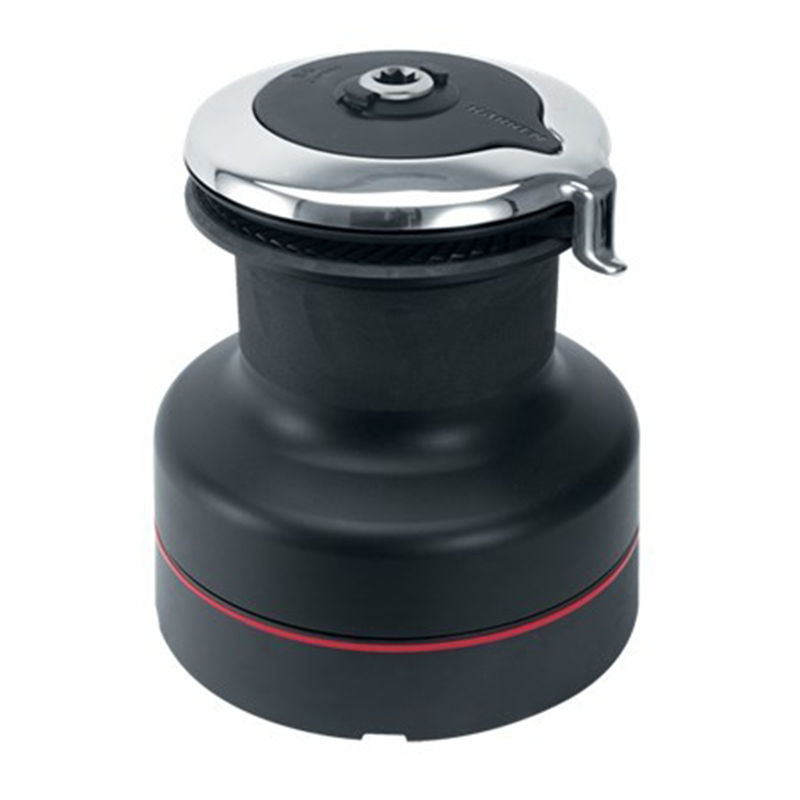

| 80.2STA | 80 Self-Tailing Radial Aluminum Winch — 2 Speed | 2 | 175 (6 7/8) | 287 (11 5/16) | 320 (12 9/16) | 21.2 (46.8) | 164 (6 7/16) | 10 - 18 (3/8 - 11/16) | 233 (9 3/16) | 8 x 10 (3/8) | 9.94 | 32.12 | 28.85 | 93.24 | Manual | ||
| 80.3STA | 80 Self-Tailing Radial Aluminum Winch —3 Speed | 3 | 175 (6 7/8) | 287 (11 5/16) | 320 (12 9/16) | 22.7 (50.1) | 164 (6 7/16) | 10 - 18 (3/8 - 11/16) | 233 (9 3/16) | 8 x 10 (3/8) | 2.76 | 9.94 | 32.12 | 8.01 | 28.85 | 93.24 | Manual |
