Description

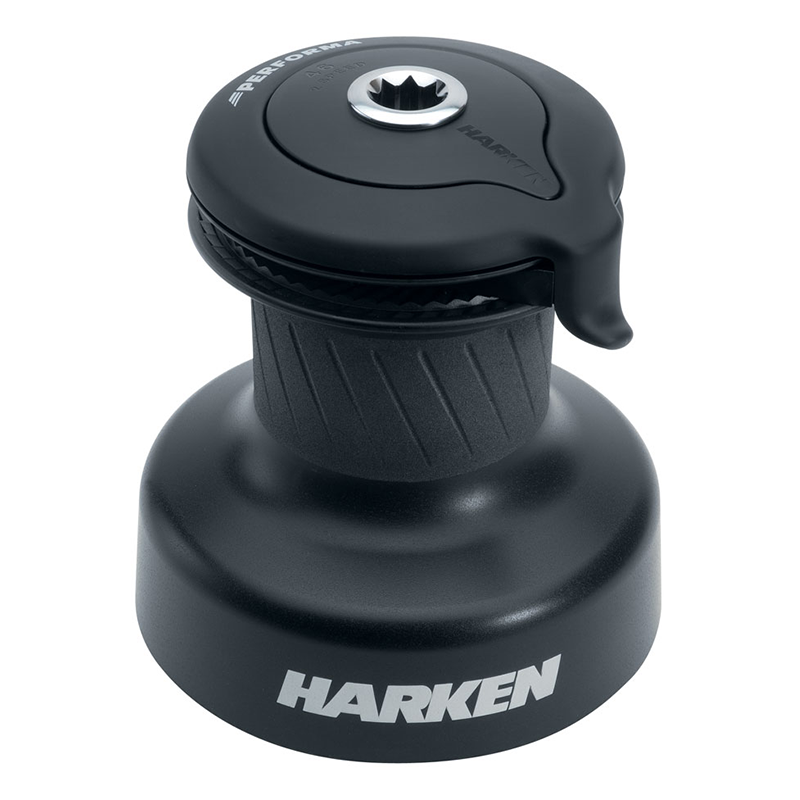

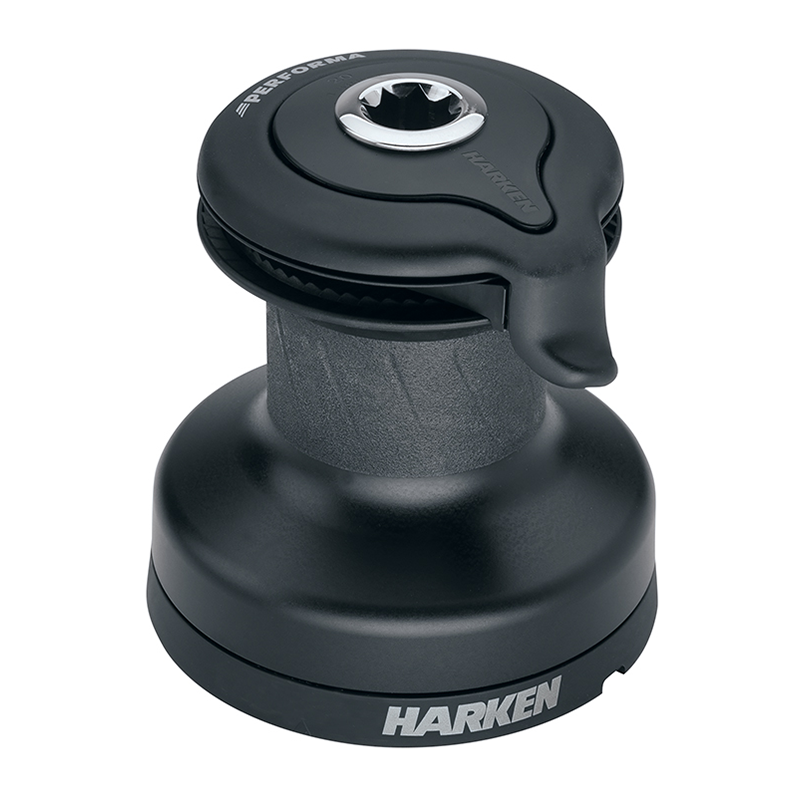

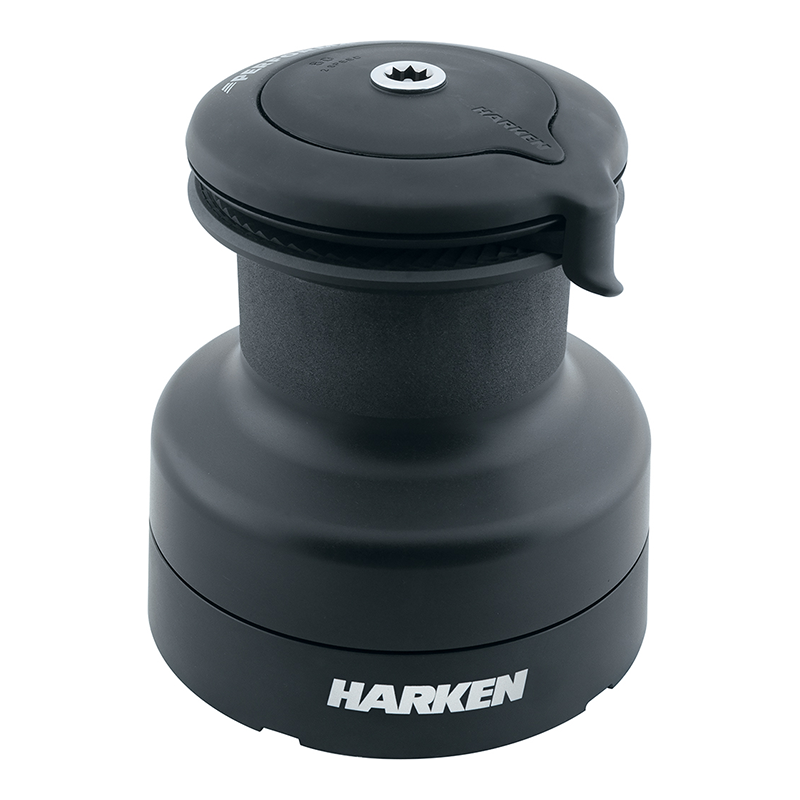

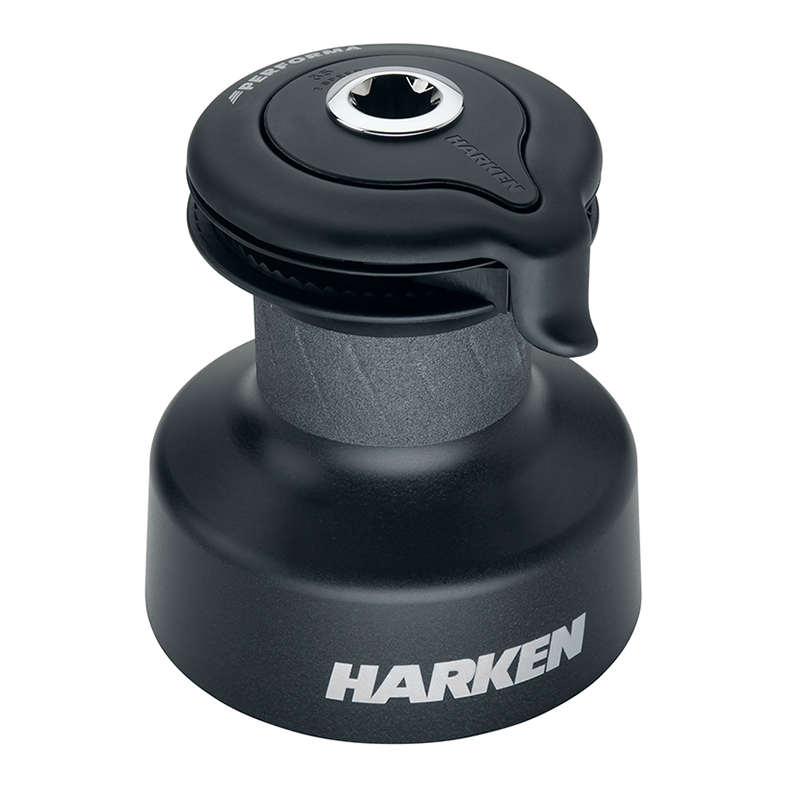

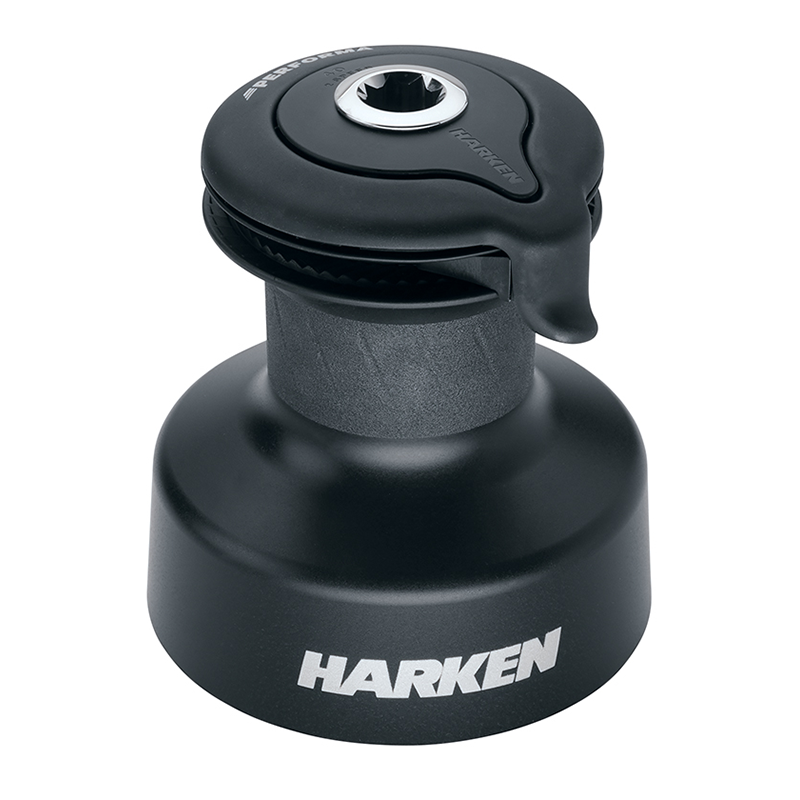

Harken Self-Tailing Three Speed Performa Winches:

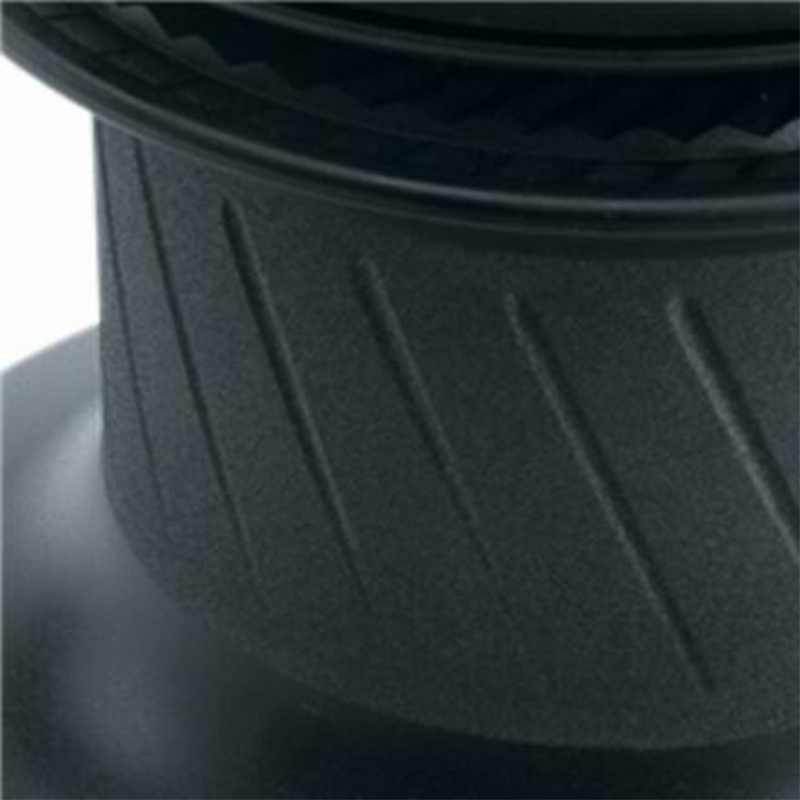

All Performa™ winches feature sandblasted drums optimised for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
| Sku | Name | Category | Configuration | Speed | Drum Ø mm (in) | Base Ø mm (in) | Height mm (in) | Weight kg (lb) | Line Entry Height mm (in) | Minimum Line Ø mm (in) | Fastener Circle mm (in) | Maximum Line Ø mm (in) | Fasteners mm (in) | Number Of Fasteners | Gear Ratio - 1 (2) | Gear Ratio - 2 | Gear Ratio - 3 | Power Ratio - 1 | Power Ratio - 2 | Power Ratio - 3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50.3STP | 50 Self-Tailing Performa Winch — 3 Speed | Hardware\Winches\Racing\Performa Racing | Self-tailing | 3 | 110 (4 5/16) | 195 (7 11/16) | 212 (8 5/16) | 6.8 (15.0) | 97 (3 13/16) | 8 (5/16) | 150 (5 7/8) | 14 (9/16) | M8 HH,M8 SH (5/16 HH,5/16 SH) | 5 | 1 | 2.40 | 10.90 | 4.62 | 11.10 | 50.40 |
| 60.3STP | 60 Self-Tailing Performa™ Winch — 3 Speed | Hardware\Winches\Racing\Performa Racing | Self-tailing | 3 | 120 (4 3/4) | 236 (9 5/16) | 253 (10) | 11.7 (25.8) | 116 (4 9/16 | 8 (5/16) | 204 (8) | 16 (5/8) | M8 HH,M8 SH (5/16 HH,5/16 SH) | 6 | 2.20 | 4.80 | 14.40 | 9.20 | 20.30 | 61.00 |
| 70.3STP | 70 Self-Tailing Performa™ Winch — 3 Speed | Hardware\Winches\Racing\Performa Racing | Self-tailing | 3 | 130 (5 1/8) | 240 (9 7/16) | 264 (10 3/8) | 12.8 (28.3) | 115 (4 1/2) | 10 (3/8) | 205 (8 1/8) | 16 (5/8) | M8 HH,M8 SH (5/16 HH,5/16 SH) | 6 | 2.30 | 5.70 | 18.50 | 9.00 | 22.20 | 72.00 |
| 80.3STP | 80 Self-Tailing Performa™ Winch — 3 Speed | Hardware\Winches\Racing\Performa Racing | Self-tailing | 3 | 175 (6 7/8) | 287 (11 5/16) | 327 (12 7/8) | 22.7 (50.1) | 164 (6 7/16) | 10 (3/8) | 233 (9 3/16) | 18 (11/16) | M10 HH,M10 SH (3/8 HH,3/8 SH) | 8 | 2.76 | 9.94 | 32.12 | 8.01 | 28.85 | 93.24 |
