Description

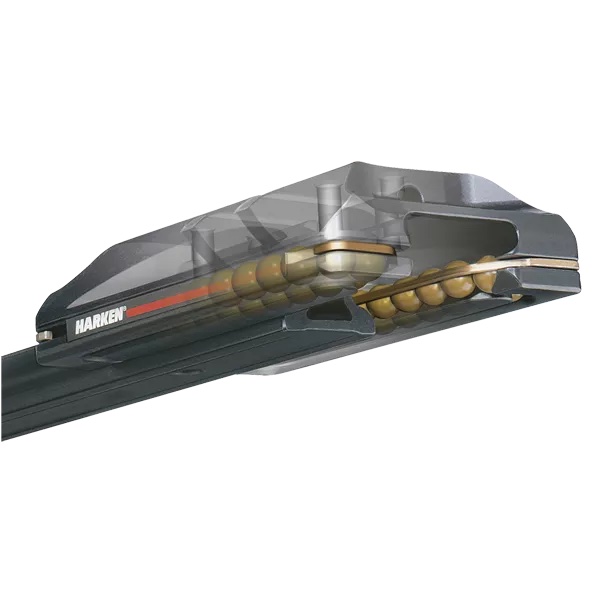

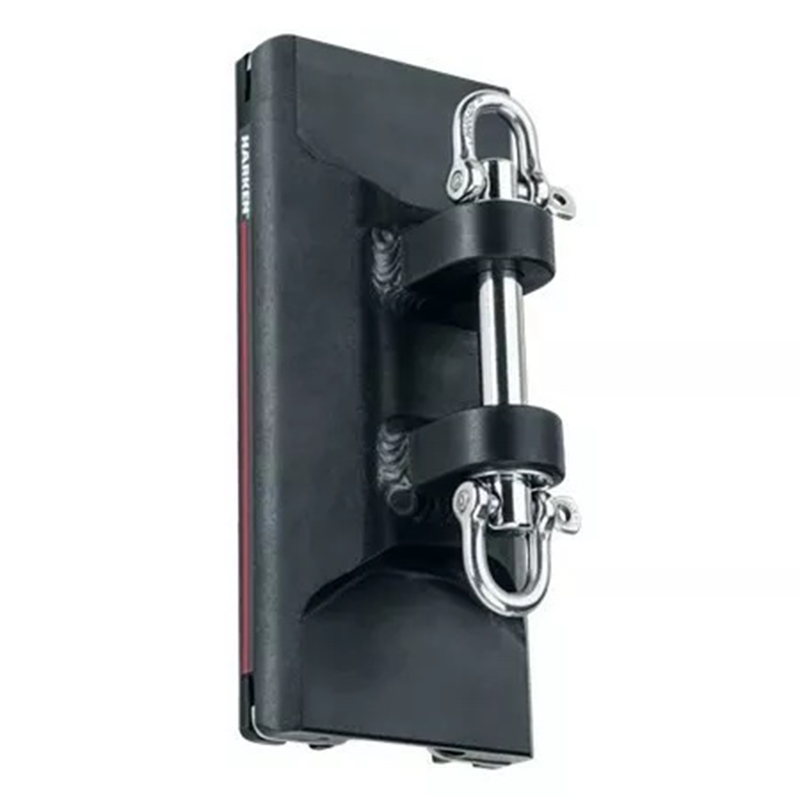

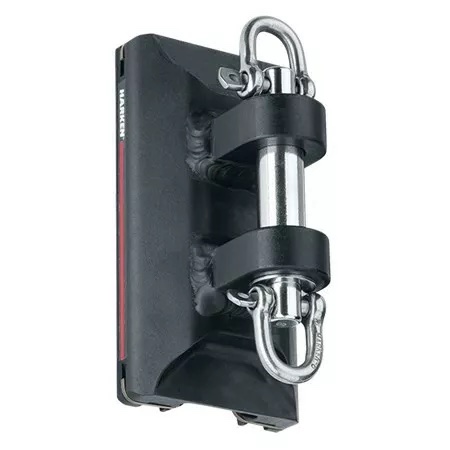

| Harken Spinnaker Pole Cars 2 | 27mm Track - 1645 | 27mm Track - 1646 | 27mm Track - 1647 | 32mm Track - 3097 | 32mm Track - 3098 | 32mm Track - 3099 |
|---|---|---|---|---|---|---|
| Length (mm) | 132 mm | 132 mm | 132 mm | 184 mm | 184 mm | 184 mm |
| Length (in) | 5 3/16 in | 5 3/16 in | 5 3/16 in | 7 1/4 in | 7 1/4 in | 7 1/4 in |
| Width (mm) | 70 mm | 70 mm | 70 mm | |||
| Width (in) | 2 3/4 in | 2 3/4 in | 2 3/4 in | |||
| Weight (g) | 635 g | 658 g | 680 g | 1315 g | 1338 g | 1293 g |
| Weight (oz) | 22.4 oz | 23.2 oz | 24 oz | 46.4 oz | 47.2 oz | 45.6 oz |
| Maximum working load (kg) | 1043 kg | 1043 kg | 1043 kg | 1837 kg | 1837 kg | 1837 kg |
| Maximum working load (lb) | 2300 lb | 2300 lb | 2300 lb | 4050 lb | 4050 lb | 4050 lb |
| Use with track/rail | R27 | R27 | R27 | R32 | R32 | R32 |
| Maximum spinnaker area (m²) | 140 m² | 140 m² | 140 m² | 186 m² | 186 m² | 186 m² |
| Maximum spinnaker area (ft²) | 1500 ft² | 1500 ft² | 1500 ft² | 2000 ft² | 2000 ft² | 2000 ft² |
| Pin Ø (in) | 1/2 in | 15/32 in | 5/8 in | 15/32 in | 5/8 in | 1/2 in |
| Pin Ø (mm) | 12.7 mm | 12 mm | 16 mm | 12 mm | 16 mm | 12.7 mm |

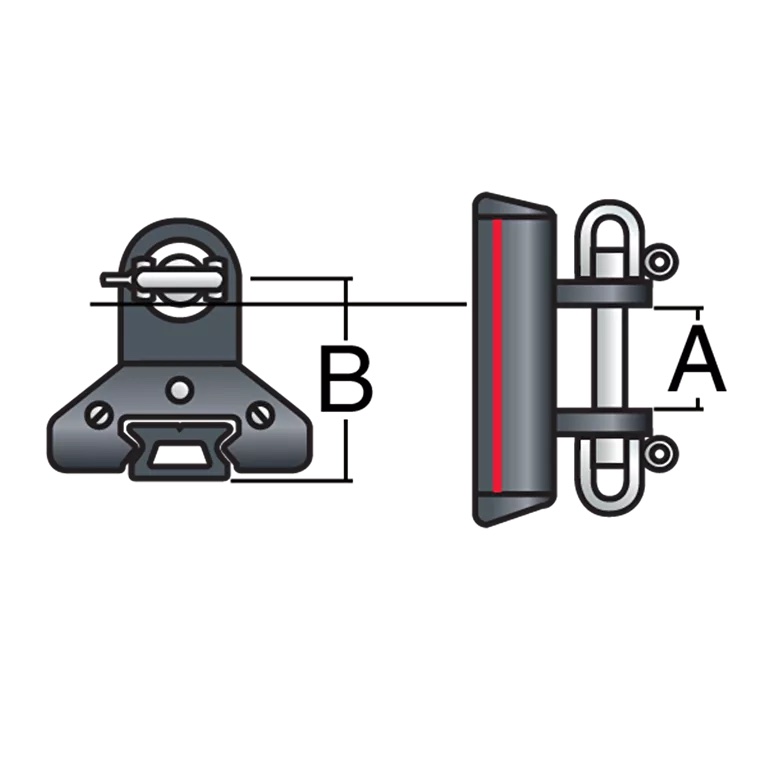

| A (mm) | 25 mm | 38 mm | 30 mm | 38 mm | 30 mm | 25 mm |
| A (in) | 1 in | 1 1/2 in | 1 3/16 in | 1 1/2 in | 1 3/16 in | 1 in |
| B (mm) | 51 mm | 54 mm | 63 mm | 59 mm | ||
| B (in) | 2 in | 2 1/8 in | 2 1/2 in | 2 5/16 in | ||
| Pole end | Forespar® toggle | B120/B130 bell end | Sparcraft toggle | B120/B130 bell end | Sparcraft toggle | Forespar® toggle |
