Description

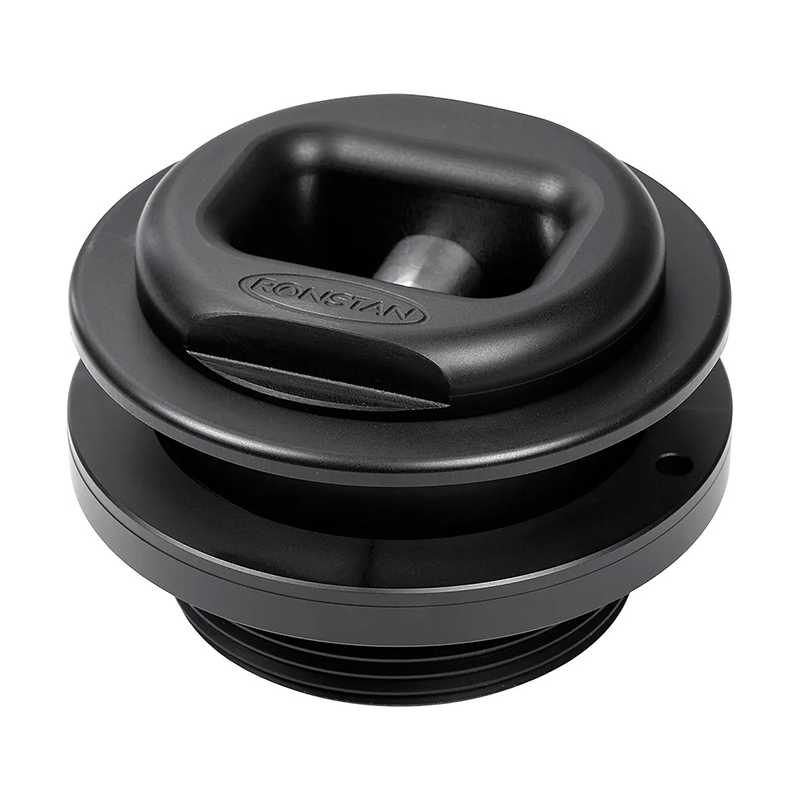

Ronstan Removable Lashing Padeyes:
Padeye, Lashing. Easily removed when not in use with included pin spanner.
Features:
- Lightweight, strong and removable.
- Ideal for use with Dyneema® strops.
- Dust cover prevents grit entering the threaded socket.
- Lashing padeyes are ideal for use with Dyneema® lashings/strops RF2437-12 up to 10mm (3/8″) diameter, RF2437-16 up o 12mm (1/2″) diameter.
- Clamping ring pin spanner included.
- Allowable deck thickness RF2437-12: minimum 13mm (1/2″), maximum 32mm (1 1/4″), RF2437-16: minimum 20mm 925/32″), maximum 39mm (1 1/2″)
Specifications:
RF2437-12:
| B.L. (kg) | 8000 |
|---|---|
| M.W.L. (kg) | 4000 |
| Weight (g) | 300 |
RF2437-16:
| B.L. (kg) | 14000 |
|---|---|
| M.W.L. (kg) | 7000 |
| Weight (g) | 650 |
Dimensions:
RF2437-12:
| A (mm) | 39 |
|---|---|
| B (mm) | 76 |
| C (mm) | 12 |
| D (mm) | 77 |
| E (mm) | 54 |
RF2437-16:
| A (mm) | 49 |
|---|---|
| B (mm) | 99 |
| C (mm) | 16 |
| D (mm) | 99 |
| E (mm) | 72 |
Applications:
Ideal for use with Dyneema® strops – RF2437-12 up to 10mm, RF2437-16 up to 12mm.
