Description

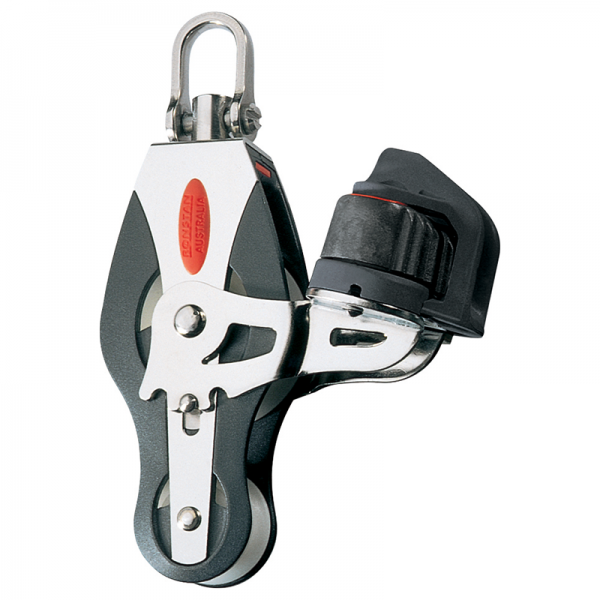

Ronstan Series 40 Fiddle Block with Adjustable Cleat – RF41520:
All purpose (AP) blocks are a great all-around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
- Exceptionally high working loads.
- Low maintenance, long service life.
- Self-lubricating sheave.
- U.V. stabilised Acetal sheaves.
- Impact and U.V. resistant, fibre reinforced Nylon cheeks.
- Grade 316 stainless steel bearing race.
- Grade 316 stainless steel load strap.
- Impact and UV resistant, fibre reinforced Nylon cheeks.
| Product No | Sheave Dia mm (in) | Rope Dia mm (in) | Max Working Load kg (lb) | Break Load kg (lb) | Weight g (oz) | Pin Dia mm (in) | Fasteners mm (in) |
|---|---|---|---|---|---|---|---|
| RF41100 | 40 (1 9/16) | 10 (3/8) | 400 (880) | 1000 (2200) | 71 (2.5) | 5 (3/16) | - |
| RF41101 | 40 (1 9/16) | 10 (3/8) | 400 (880) | 1000 (2200) | 54 (1.9) | - | - |
| RF41110 | 40 (1 9/16) | 10 (3/8) | 400 (880) | 1000 (2200) | 80 (2.8) | 5 (3/16) | - |
| RF41111 | 40 (1 9/16) | 10 (3/8) | 400 (880) | 1000 (2200) | 61 (2.2) | - | - |
| RF41210 | 40 (1 9/16) | 10 (3/8) | 600 1320) | 1200 (2650) | 143 (5) | 5 (3/16) | - |
| RF41310 | 40 (1 9/16) | 10 (3/8) | 700 (1540) | 1400 (3090) | 209 (7.4) | 5 (3/16) | - |
| RF41140 | 40 (1 9/16) | 10 (3/8) | 400 (880) | 800 (1760) | 72 (2.5) | - | - |
| RF41151 | 40 (1 9/16) | 10 (3/8) | 400 (880) | 1000 (2200) | 66 (2.3) | - | - |
| RF41171 | 40 (1 9/16) | 10 (3/8) | 400 (880) | 1000 (2200) | 59 (2.1) | - | 5 (3/16) |
| RF41300 | 40 (1 9/16) | 10 (3/8) | 700 (1540) | 1400 (3090) | 195 (6.9) | 5 (3/16) | - |
| RF41500 | 40 + 24 (1 9/16 + 15/16) | 8 (5/16) | 400 (880) | 1000 (2200) | 91 (3.2) | 5 (3/16) | - |
| RF41510 | 40 + 24 (1 9/16 + 15/16) | 8 (5/16) | 400 (880) | 1000 (2200) | 98 (3.5) | 5 (3/16) | - |
| RF41520 | 40 + 24 (1 9/16 + 15/16) | 8 (5/16) | 400 (880) | 1000 (2200) | 157 (5.5) | 5 (3/16) | - |
| RF41530 | 40 + 24 (1 9/16 + 15/16) | 8 (5/16) | 400 (880) | 1000 (2200) | 164 (5.8) | 5 (3/16) | - |
