Description

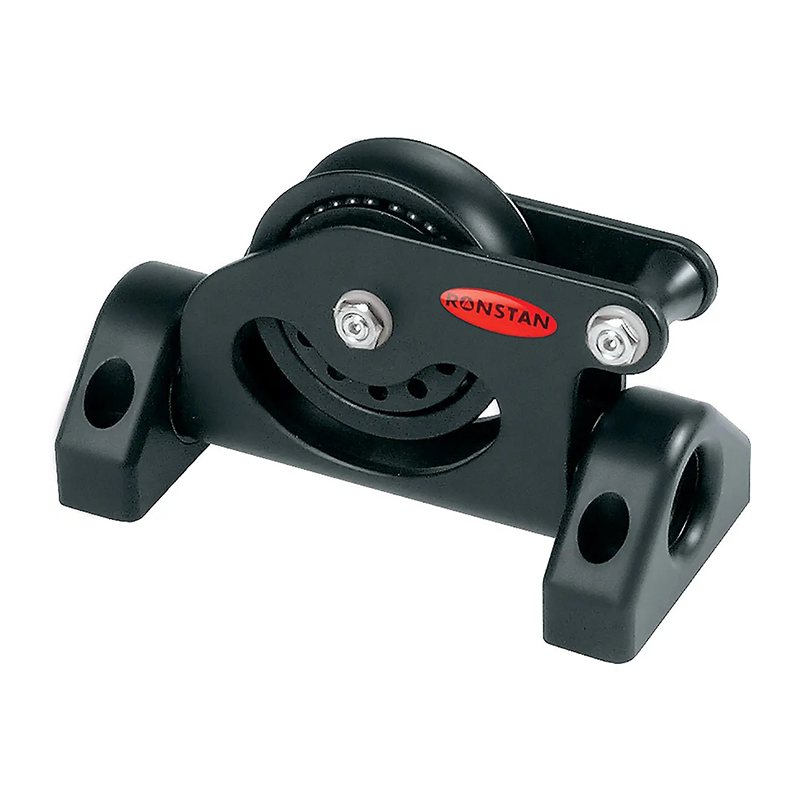

Ronstan Series 60 Single Roller Bearing Pivoting Low Lead Block – RF68174:
Single Pivoting Low Lead Block.
Features:
- High static and dynamic load capacity.
- Keeps lines close to the deck.
- Cheek cut-outs for easy bearing cleaning and maintenance.
- Blocks can be disassembled for servicing.
Maintains alignment with a variable line entry-angle. The line passes through the centre of the pivot support, remaining as close to the deck as possible. The self-contained alloy sheave packages provide reliable, low-friction performance at high loads.
Specifications:
| B.L. (kg) | 3000 |
|---|---|
| M.W.L. (kg) | 1500 |
| Max. Rope diameter (mm) | 14 |
| Weight (g) | 341 |
| Fastener Ø (mm) | 4 x 6mm |
Materials:
- Alloy sheave and housing.
- Torlon® needle rollers.
- Black carbon Acetal ball bearings.
