Description

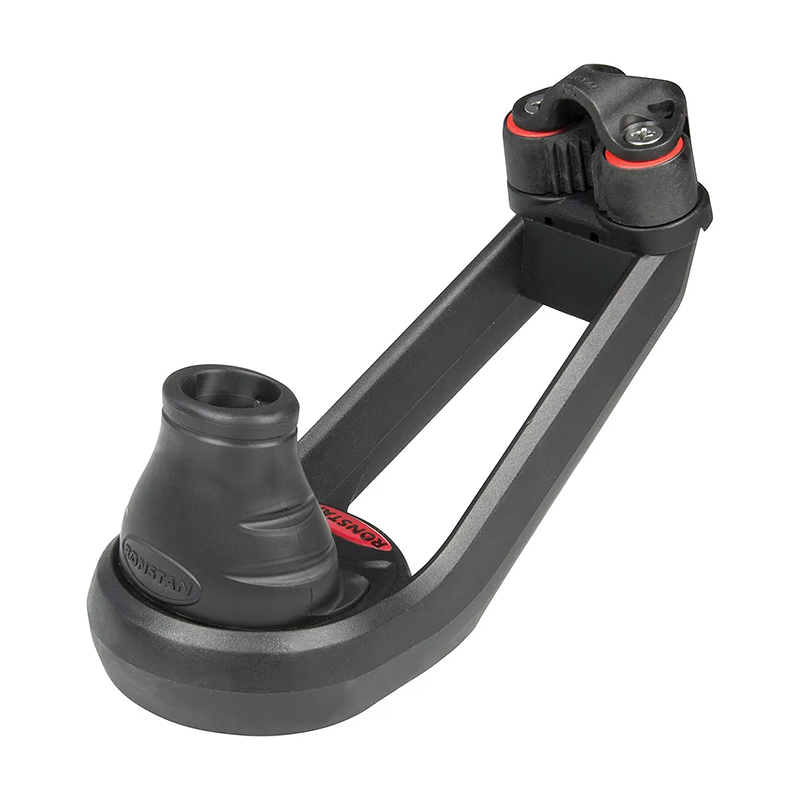

Ronstan Small Swivelling Mainsheet Cleat Base – RF6:
Small ball bearing swivelling cleat base, small C-Cleat™ and fairlead.
Features:
- Ball bearings support the cleat arm.
- An integral stop prevents over rotation, but can be removed to allow full 360° rotation.
- The cleating angle can be set in one of two positions – use the included riser kit for a higher cleating angle.
- A switchable ratchet in the base allows the cleat arm to remain in its most recently used position.
- The ratchet can be turned off for free swivelling.
- Includes small C-Cleat™ cam cleat and fairlead, suitable for line sizes 2-8mm (3/31 – 5/15″) dia.
Applications:
- Suits traditional shackle head blocks and Dyneema® link head Orbit Blocks™.
- Mainsheet systems on dinghies to 4.5m (15ft)
Materials:
- Glass fibre reinforced base and cleat arm.
- Grade 316 stainless steel fixings and block attachment loop.
Specifications:
| B.L. (kg) | 250 |
|---|---|
| M.W.L. (kg) | 125 |
| Weight (g) | 210 |
| Notes: | Load ratings are for the cleat base assembly, and are based on a 120° change in line direction. Line loads should be limited to M.W.L. 125kg (275lb). |
