Description

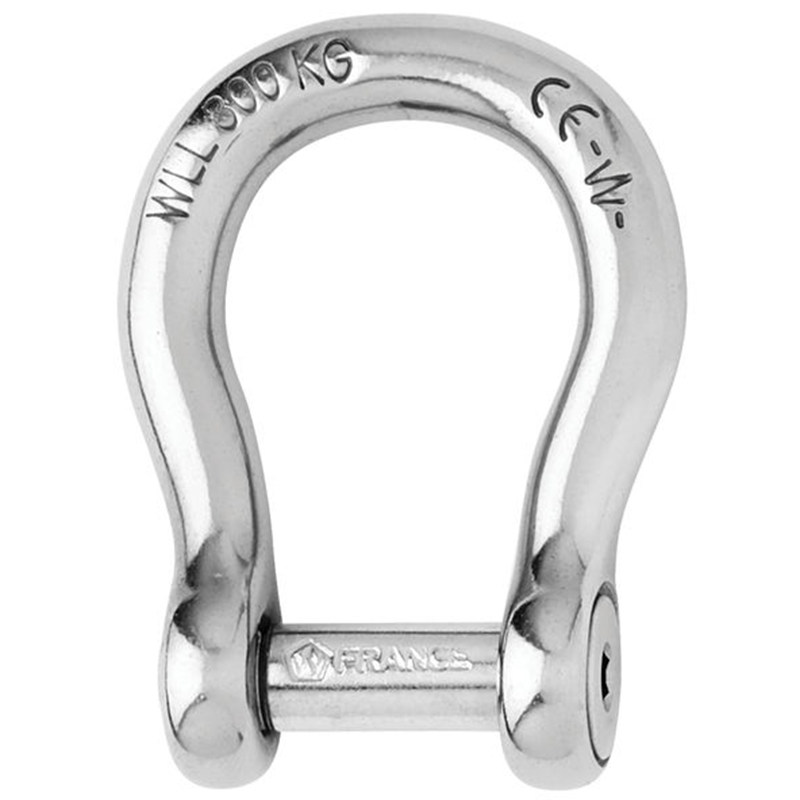

Wichard Allen Head Pin Bow Shackles:
- Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel.
- The pin is locked into one of the indentations.
- The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging.
- No risks of loose due to vibrations.
- Outstanding working and breaking loads.
- WLL: only for industrial applications (lifting i.e…).
- CE marking.
Applications:
- Ideal to link chain and anchor.
- On the halyard, avoids to damage the sails.
Working load (WL): for nautical applications.
Working Load Limit (WLL): for industrial applications only.
The safety factor is 5 times the breaking load.
WLL = Breaking load / 5

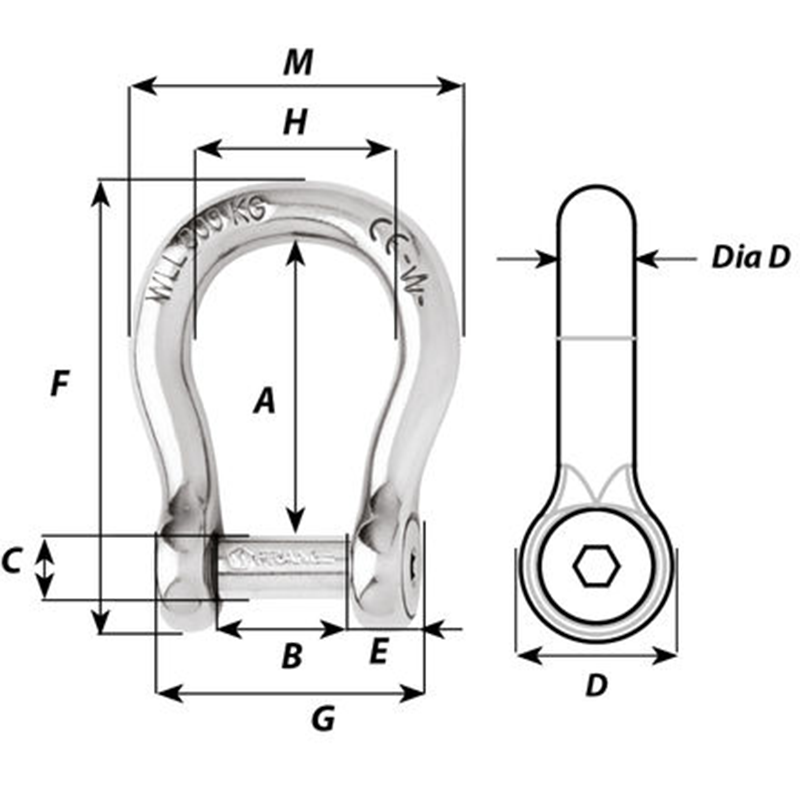

| Self Locking Allen Head Bow Shackles | 1343 | 1344 | 1345 | 1346 |
|---|---|---|---|---|
| Materials | 316 stainless steel grade | 316 stainless steel grade | 316 stainless steel grade | 316 stainless steel grade |
| Working Load (kg) | 600 | 960 | 1440 | 2080 |
| WLL (kg) | 300 | 540 | 860 | 1200 |
| Breaking load (kg) | 1500 | 2700 | 4300 | 6000 |
| Weight (g) | 29 | 67 | 133 | 222 |
| A (mm) | 27 | 37 | 47 | 55 |
| B (mm) | 12 | 16 | 20 | 27 |
| C (mm) | 6 | 8 | 10 | 12 |
| D (mm) | 12 | 16 | 20 | 24 |
| D diameter (mm) | 6 | 8 | 10 | 12 |
| E (mm) | 5 | 7 | 9 | 10 |
| F (mm) | 1 | 25 | 32 | 38 |
| M (mm) | 32 | 40 | 52 | 63 |
