Description
Wichard Clevis Pin Swivels:
- HR forged swivel (17.4 Ph) with only one opening side and one eye.
- Outstanding working and breaking loads.
Applications:
- Link two pieces which have different rotation.
- Do not use for mooring applications.
Working load (WL): for nautical applications.
Working Load Limit (WLL): for industrial applications only.
The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
| Wichard Swivel with Clevis | 2464 | 2465 | 82464 | 82465 |
|---|---|---|---|---|
| Materials | HR 17.4 PH stainless steel grade | HR 17.4 PH stainless steel grade | HR 17.4 PH stainless steel grade | HR 17.4 PH stainless steel grade |
| Length (mm) | 70 | 105 | 70 | 105 |
| Working load (kg) | 1600 | 3200 | 1600 | 3200 |
| Breaking load (kg) | 2800 | 6000 | 2800 | 6000 |
| Weight (g) | 87 | 280 | 87 | 280 |

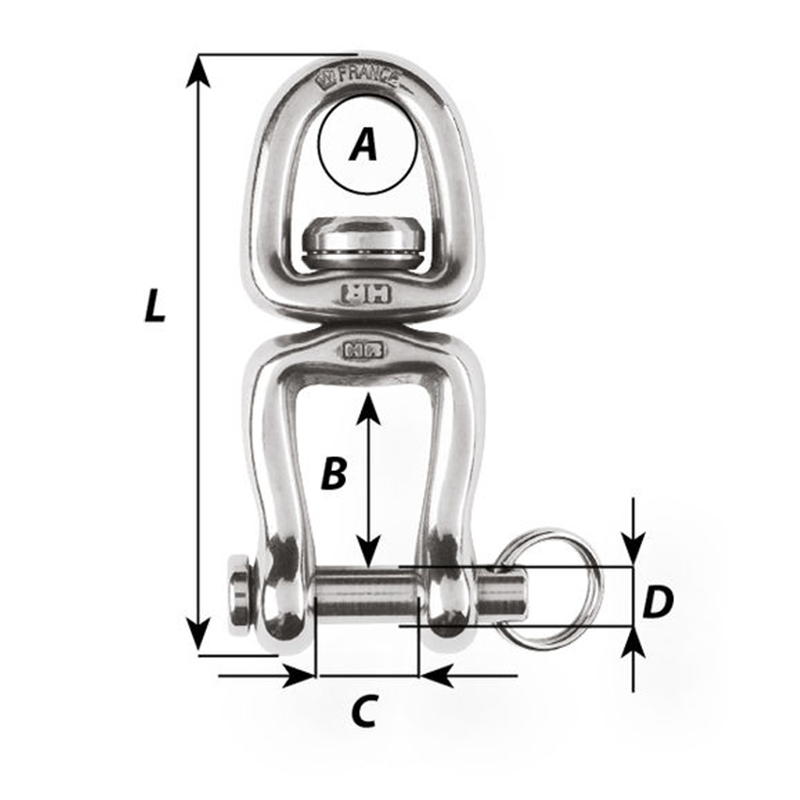

| A (mm) | 14 | 19 | 14 | 19 |
| B (mm) | 21 | 31 | 21 | 31 |
| C (mm) | 11 | 18 | 11 | 18 |
| D diameter (mm) | 7 | 11 | 7 | 11 |
