Description

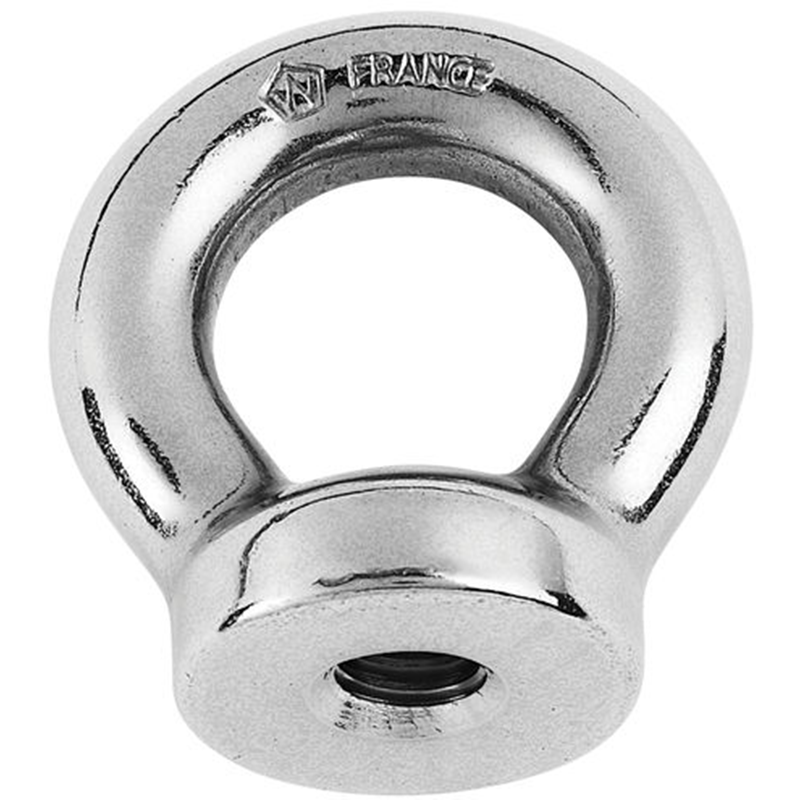

Wichard Eye Nuts – Metric:
- A complete range of single piece forged products for fastenings applications.
- Outstanding breaking loads.
- Available in different sizes.
Applications:
- Various fastening applications.
- Towing application.
- Waterskiing lines attachment.
Working load (WL): for nautical applications
Working Load Limit (WLL): for industrial applications only.
The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
| Wichard Eye Nut | 6333 | 6334 | 6344 | 6345 | 6355 | 6356 | 6366 | 6367 | 6368 |
|---|---|---|---|---|---|---|---|---|---|
| Materials | 316L stainless steel grade | 316L stainless steel grade | 316L stainless steel grade | 316L stainless steel grade | 316L stainless steel grade | 316L stainless steel grade | 316L stainless steel grade | 316L stainless steel grade | 316L stainless steel grade |
| Breaking load (kg) | 1500 | 2200 | 3000 | 4500 | 4800 | 5200 | 7000 | 9000 | 10000 |
| Weight (g) | 22 | 20 | 51 | 49 | 99 | 95 | 175 | 171 | 165 |

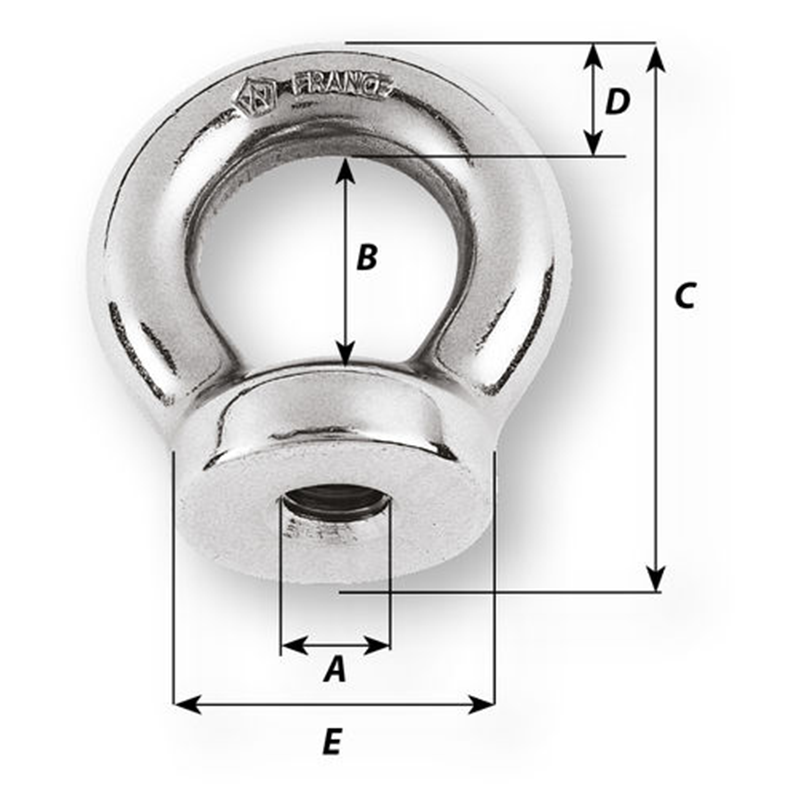

| A (mm) | M6 x 100 | M8 x125 | M8 x125 | M10 x150 | M10 x 150 | M12 x 175 | M12 x 175 | M14 x 200 | M16 x 200 |
| B (mm) | 13 | 13 | 17 | 17 | 22 | 22 | 27 | 27 | 27 |
| C (mm) | 27 | 27 | 36 | 36 | 46 | 46 | 56 | 56 | 56 |
| D (mm) | 6 | 6 | 8 | 8 | 10 | 10 | 12 | 12 | 12 |
| E (mm) | 17 | 17 | 22 | 22 | 28 | 28 | 34 | 34 | 34 |
