Description

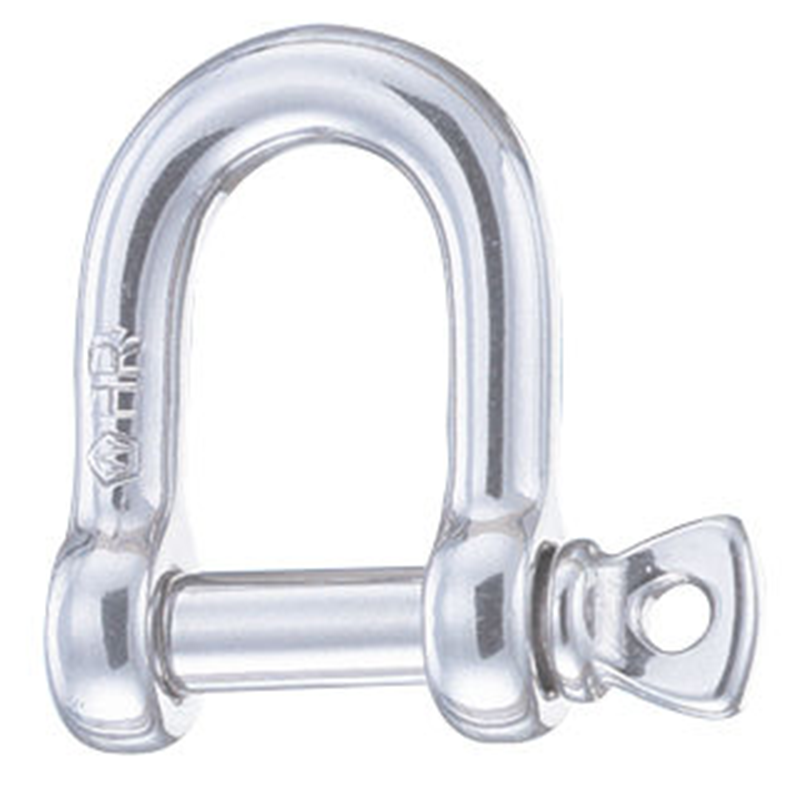

Wichard High Resistance D Shackles:
- Forged D shackle in HR stainless steel grade (17,4 PH).
- Outstanding working and breaking load.
- A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel.
- WLL: only for industrial applications (lifting i.e…).
- CE marking.
Applications:
- Applications requesting high loads.
- Standard applications of shackle.
- Attachment applications: blocks, head…
- Do not use for mooring applications.
Working load (WL): for nautical applications.
Working Load Limit (WLL): for industrial applications only.
The safety factor is 5 times the breaking load.
WLL = Breaking load / 5

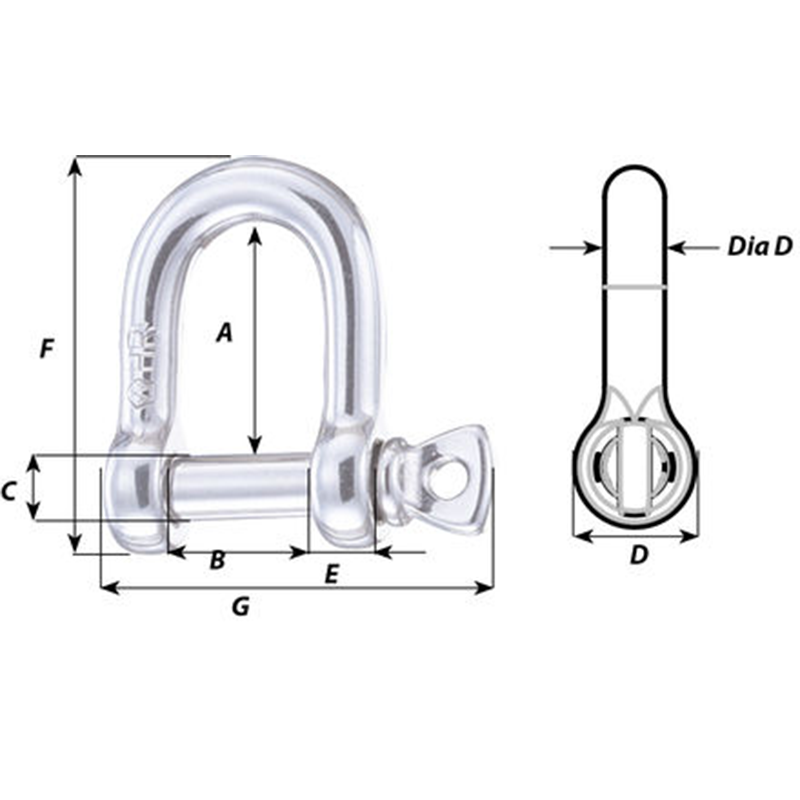

| HR Shackles | 11203 | 11204 | 11205 | 11206 | 11207 | 11208 | 11209 |
|---|---|---|---|---|---|---|---|
| Materials | HR 17.4 PH stainless steel grade | HR 17.4 PH stainless steel grade | HR 17.4 PH stainless steel grade | HR 17.4 PH stainless steel grade | HR 17.4 PH stainless steel grade | HR 17.4 PH stainless steel grade | HR 17.4 PH stainless steel grade |
| Working Load (kg) | 1040 | 1760 | 2640 | 3600 | 5120 | 6800 | 8800 |
| WLL (kg) | 460 | 820 | 1200 | 2000 | 2400 | 3800 | 5600 |
| Breaking load (kg) | 2300 | 4100 | 6000 | 10000 | 12000 | 19000 | 28000 |
| Weight (g) | 24 | 52 | 102 | 192 | 304 | 464 | 860 |
| A (mm) | 20 | 26 | 33 | 39 | 49 | 56 | 70 |
| B (mm) | 12 | 16 | 20 | 24 | 28 | 32 | 40 |
| C (mm) | 6 | 8 | |||||
| D (mm) | 16 | 16 | |||||
| D diameter (mm) | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
| E (mm) | 7 | 7 | |||||
| F (mm) | 46 | 46 | |||||
| G (mm) | 46 | 46 |
