Description

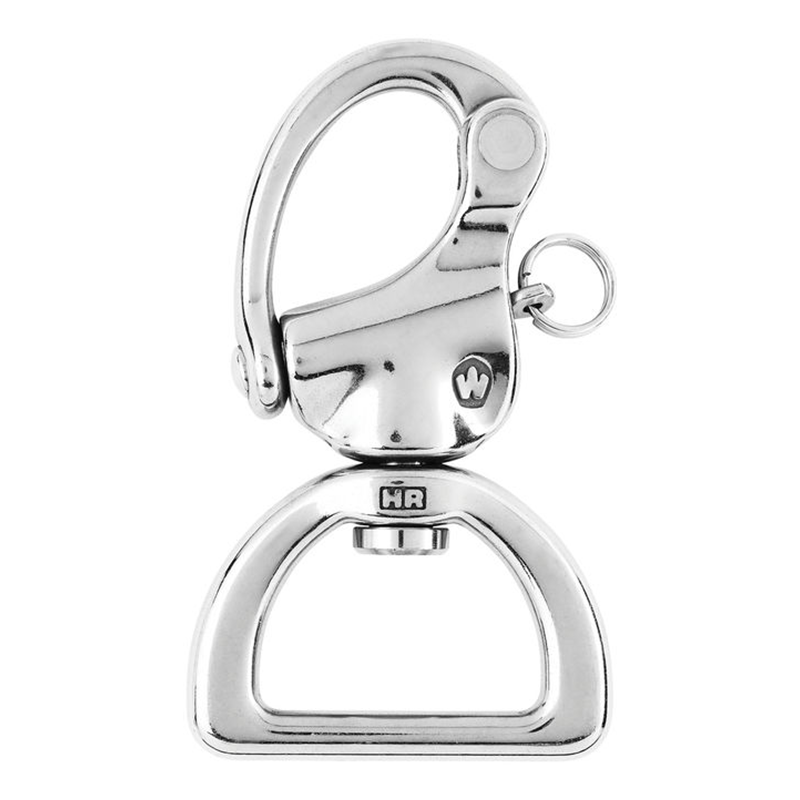

Wichard HR Webbing Swivel Snap Shackles:
- HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel.
- Its flat design allows to attach a webbing.
- Free rotation of the snap shackle thanks to the swivel eye.
- The plunger pin is set captive into the hook and cannot become detached.
- Excellent working and breaking loads.
- Easy to open by pulling the plunger pin (possibility to attach a lanyard).
Applications:
- Snap shackle applications.
- Applications requiring a free rotation of the snap shackle (for a better sail orientation).

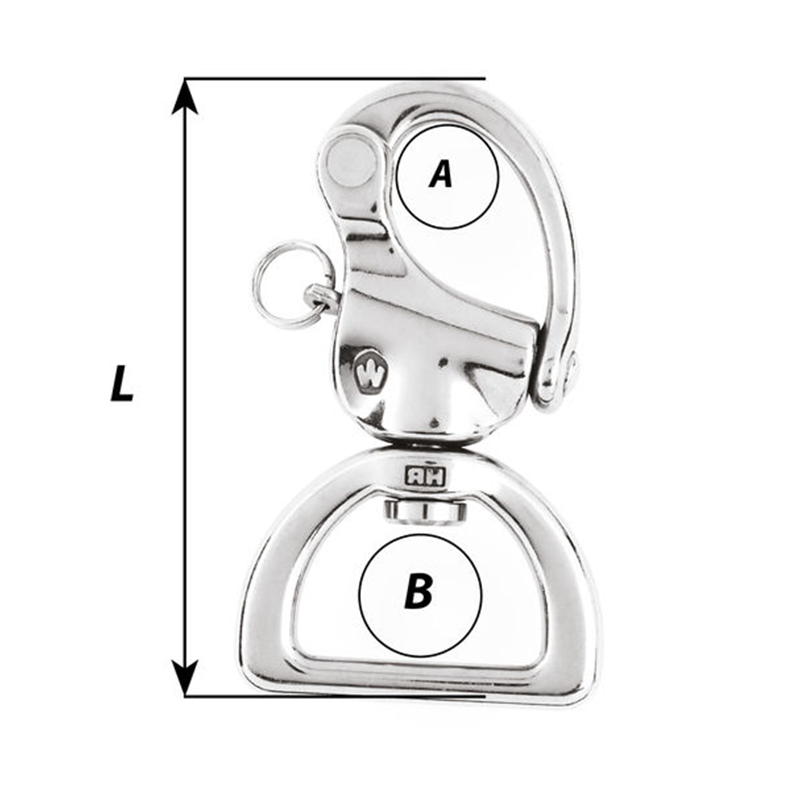

| Wichard Webbing Snap Shackles | #2374 | #2376 |
|---|---|---|
| Materials | HR 17.4 PH stainless steel grade | HR 17.4 PH stainless steel grade |
| Length (mm) | 80 | 100 |
| Working load (kg) | 960 | 1280 |
| Breaking load (kg) | 2000 | 3850 |
| Weight (g) | 85 | 170 |
| A (mm) | 16 | 21 |
| B (mm) | 30 | 40 |
