Description
- Wichard Snap Shackles are HR Forged snap shackle (Grade 17.4 PH stainless steel).
- The plunger pin is set captive into the hook and cannot become detached.
- Excellent working and breaking loads.
- Easy to open by pulling the plunger pin (possibility to attach a lanyard).
Applications:
Wichard Snap Shackles applications requiring a free rotation of the snap shackle (for a better sail orientation).
Material:
HR stainless steel 17.4 PH
Wichard Snap Shackles Specifications (Standard Bail) |
||||||
| Part No. | Length | A | B | Working load | Breaking load | Weight |
| 2473 | 70 mm | 16 mm | 11 mm | 960 Kg | 2000 Kg | 65 g |
| 2475 | 90 mm | 21 mm | 14 mm | 1280 Kg | 3700 Kg | 136 g |
| 2477 | 120 mm | 26 mm | 21 mm | 2800 Kg | 7000 Kg | 353 g |
Wichard Snap Shackles Specifications (Large Bail) |
||||||
| Part No. | Length | A | B | Working load | Breaking load | Weight |
| 2373 | 80 mm | 16 mm | 19 mm | 960 Kg | 2000 Kg | 70 g |
| 2375 | 105 mm | 21 mm | 26 mm | 1280 Kg | 3600 Kg | 160 g |
| 2377 | 140 mm | 26 mm | 35 mm | 2800 Kg | 7500 Kg | 398 g |

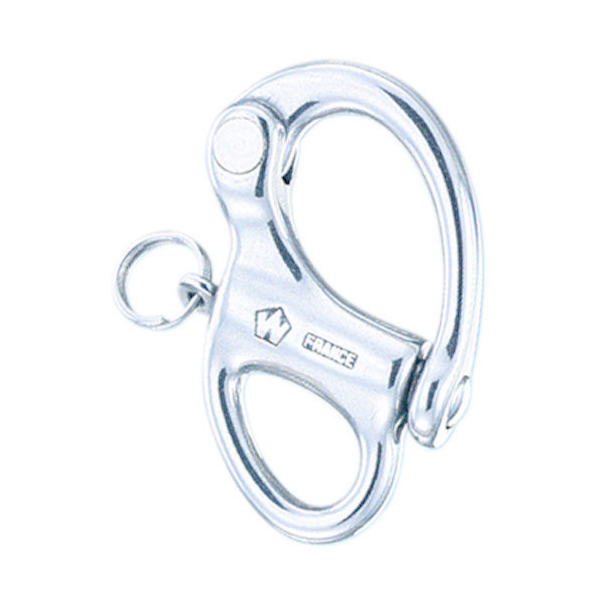

Wichard Snap Shackles Specifications (Fixed Eye) |
||||||
| Part No. | Length | A | B | Working load | Breaking load | Weight |
| 2470 | 35 mm | 8 mm | 6 mm | 160 Kg | 400 Kg | 12 g |
| 2471 | 50 mm | 16 mm | 10 mm | 960 Kg | 2000 Kg | 42 g |
| 2472 | 70 mm | 21 mm | 13 mm | 1280 Kg | 3000 Kg | 90 g |
