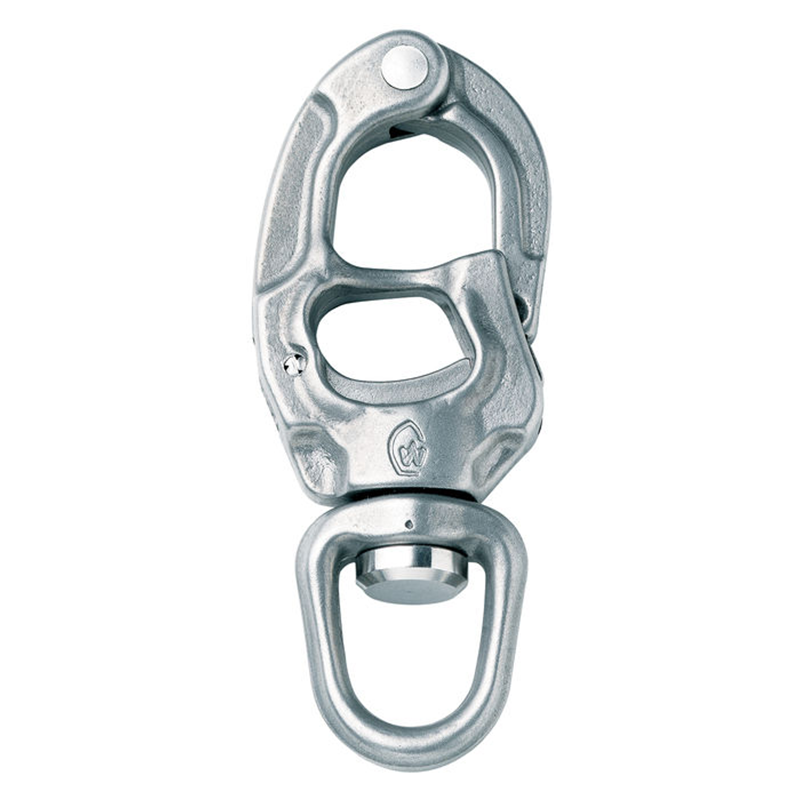

Wichard Speedlink Trigger Snap Shackles:
Speed-link is the new trigger snap shackle dedicated to spinnaker operations on racing boats and offering an excellent weight / performance ratio.
- Ultra lightweight: developed by using finite element analysis software. Speed-link has an optimised design thanks to its shape, cut-outs and ribs.
- The design gives it one of the best strength/weight ratios on the market.

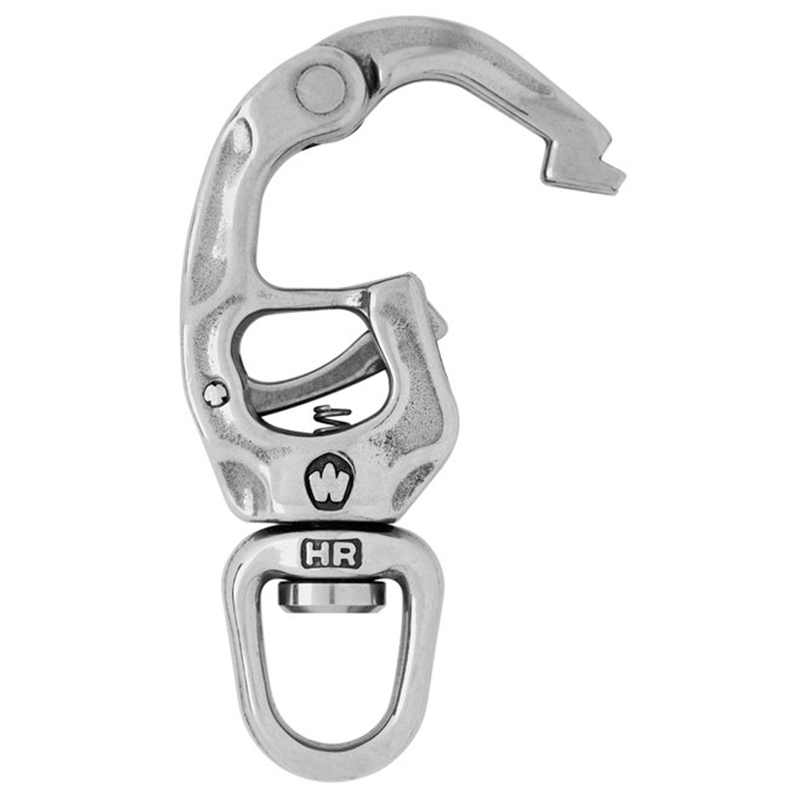

- Easy opening: opening under load, whether manually or using release fid, is easy and effortless thanks to the generous passage diameter and its optimised slopes.
- No accidental opening: the special shape of the latch reduces inertia and avoids unintentional opening, especially under impact.
- Sturdy: Speed-link is forged in HR stainless steel and can bear outstanding working and breaking loads for a minimum weight.
- Modern design: its ultra-technical lines avoid excessive rope wear and prevent adjacent lines from jamming.
Applications:
- Spinnaker operations: sheets, halyards, peeling.
Wichard Speedlink Trigger Snap Shackles | #2650 | #2652 | #2654 | #2656 |
---|---|---|---|---|
Materials | HR 17.4 PH stainless steel grade | HR 17.4 PH stainless steel grade | HR 17.4 PH stainless steel grade | HR 17.4 PH stainless steel grade |

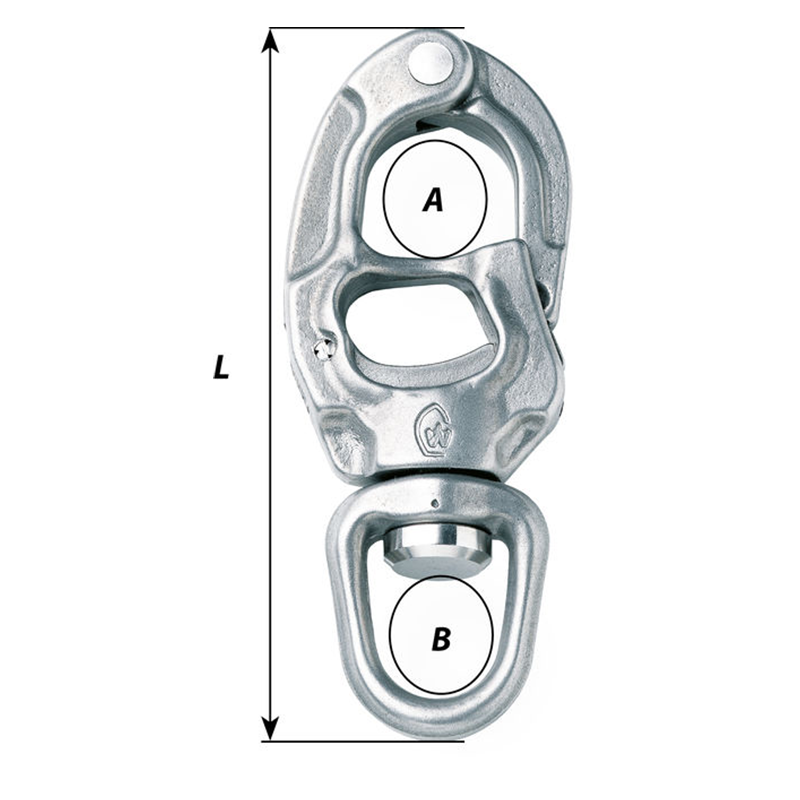

Length (mm) | 74 | 87 | 108 | 134 |
Working load (kg) | 1100 | 1440 | 2320 | 4300 |
Weight (g) | 59 | 97 | 173 | 326 |
A (mm) | 14 | 17 | 21 | 25 |
B (mm) | 11.5 | 15.5 | 22 | 26 |
