Description

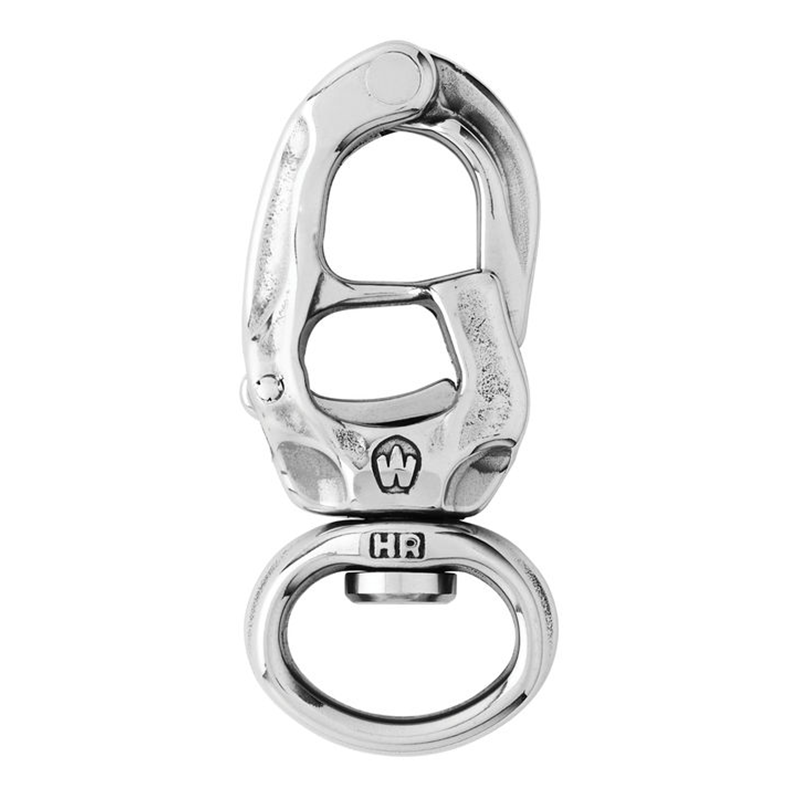

Wichard Speedlink Webbing Eye Snap Shackles:
Speed-link is the new trigger snap shackle offering an excellent weight / performance ratio. Its specific shape makes it perfect for foresail tack points.
- Ultra lightweight: developed by using finite element analysis software, Speed-link has an optimised design thanks to its shape, cut-outs and ribs. The design gives it one of the best strength/weight ratios on the market.
- Easy opening: opening under load, whether manually or using release fid, is easy and effortless thanks to the generous passage diameter and its optimised slopes.
- No accidental opening: the special shape of the latch reduces inertia and avoids unintentional opening, especially under impact.
- Sturdy: Speed-link is forged in HR stainless steel and can bear outstanding working and breaking loads for a minimum weight.
- Modern design: its ultra-technical lines avoid excessive rope wear and prevent adjacent lines from jamming.
Applications:
- Foresail tack points.

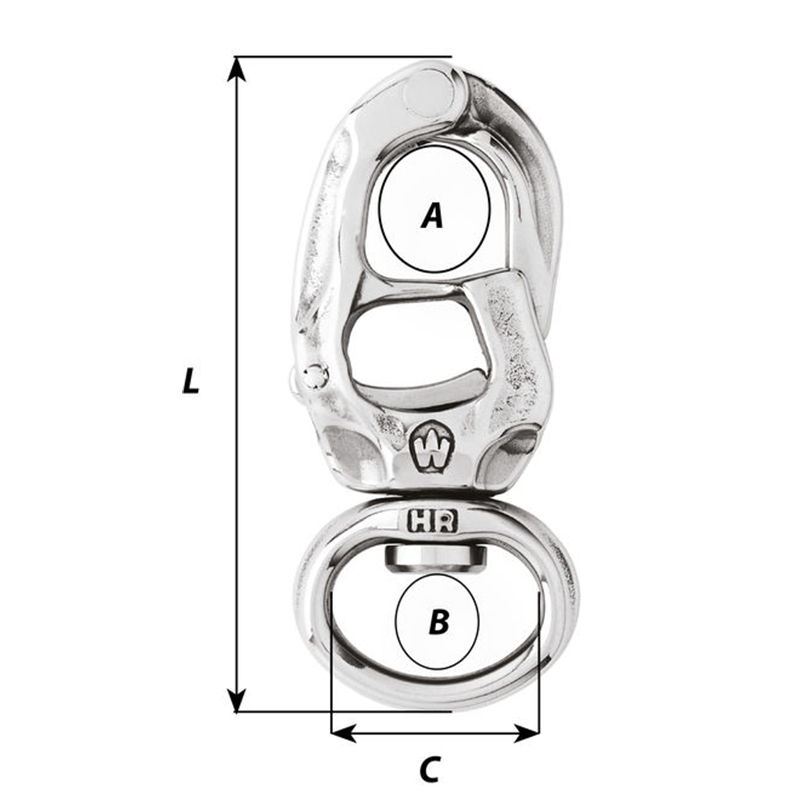

| Wichard Speedlink Trigger Snap Shackles | #2750 | #2752 | #2754 | #2756 |
|---|---|---|---|---|
| Materials | HR 17.4 PH stainless steel grade | HR 17.4 PH stainless steel grade | HR 17.4 PH stainless steel grade | HR 17.4 PH stainless steel grade |
| Length (mm) | 72 | 83 | 102 | 128 |
| Working load (kg) | 1100 | 1440 | 2320 | 4300 |
| Weight (g) | 58 | 95 | 174 | 337 |
| A (mm) | 14 | 17 | 21 | 25 |
| B (mm) | 11 | 13 | 17 | 21 |
| C (mm) | 23 | 26 | 35 | 59 |
