Description
Wichard Standard U-Bolt Padeyes:
- Fully drop-forged product with high quality stainless steel.
- Outstanding working and breaking loads.
- For any kind of fastening applications (shrouds, lifelines, blocks…).
- Delivered with bolts and counter-plate.
- Max tightening torque: 2.3 Nm.
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Working load (WL): for nautical applications
Working Load Limit (WLL): for industrial applications only.
The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
| Wichard U-Bolt Padeyes | 6511 | 6512 | 6513 | 6514 | 6515 | 6516 | 6523 | 6524 | 6525 | 6526 |
|---|---|---|---|---|---|---|---|---|---|---|
| Materials | 316L stainless steel grade | 316L stainless steel grade | 316L stainless steel grade | 316L stainless steel grade | 316L stainless steel grade | 316L stainless steel grade | 316L stainless steel grade | 316L stainless steel grade | 316L stainless steel grade | 316L stainless steel grade |
| Length (mm) | 50 | 60 | 70 | 80 | 90 | 110 | 90 | 100 | 110 | 130 |
| Working Load (kg) | 480 | 640 | 1280 | 2400 | 3600 | 6400 | 1280 | 2400 | 3600 | 6400 |
| Breaking load (kg) | 1000 | 2000 | 3000 | 4800 | 7000 | 10000 | 3000 | 4800 | 7000 | 10000 |
| Weight (g) | 22 | 35 | 60 | 114 | 200 | 319 | 67 | 127 | 222 | 349 |

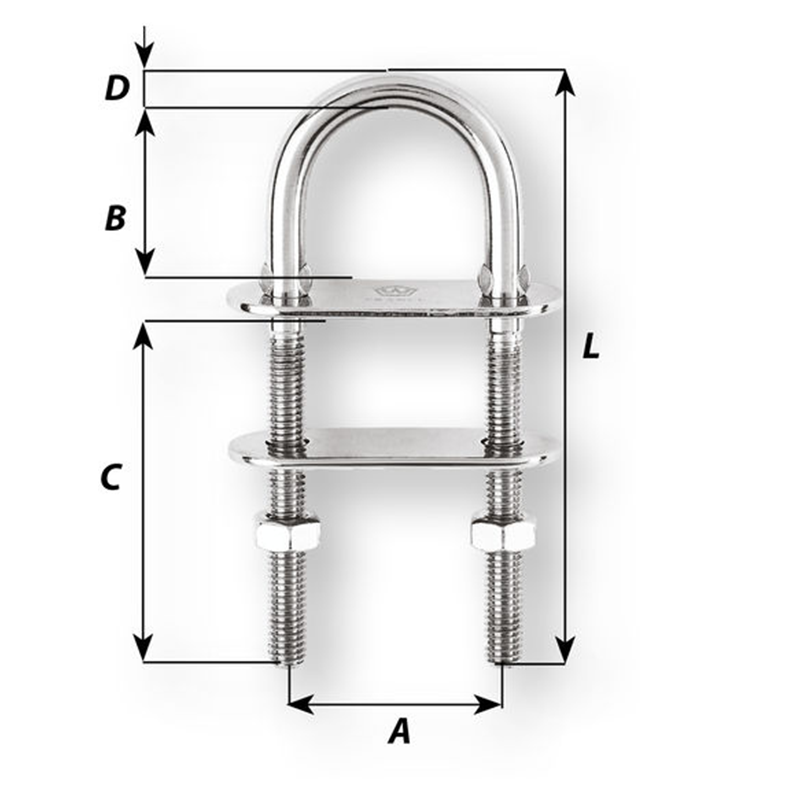

| A (mm) | 24 | 28 | 32 | 36 | 40 | 44 | 32 | 36 | 40 | 44 |
| B (mm) | 21 | 24 | 27 | 30 | 32 | 34 | 27 | 30 | 32 | 34 |
| C (mm) | 27 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 |
| D diameter (mm) | 4 | 5 | 6 | 8 | 10 | 12 | 6 | 8 | 10 | 12 |
| L (mm) | 50 | 60 | 70 | 80 | 90 | 110 | 90 | 100 | 110 | 130 |
