Description
Wichard Titanium Bow Shackles:
- Forged titanium D shackle.
- 40% weight saving compared to a standard shackle.
- Perfect for competition.
Applications:
- Competition.
- Applications requesting high corrosion resistance.
Working load (WL): for nautical applications
Working Load Limit (WLL): for industrial applications only.
The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
| Titanium Bow Shackles | 51245 | 51246 |
|---|---|---|
| Materials | Titanium | Titanium |
| Working Load (kg) | 2160 | 2800 |
| Breaking load (kg) | 6000 | 8000 |
| Weight (g) | 82 | 136 |

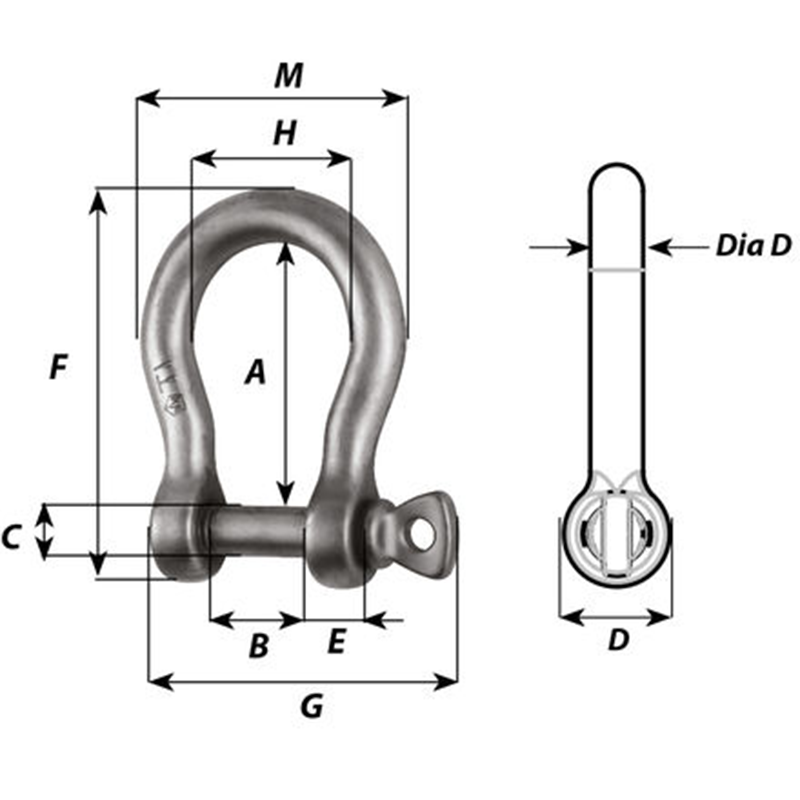

| A (mm) | 47 | 55 |
| B (mm) | 20 | 27 |
| C (mm) | 10 | 12 |
| D (mm) | 20 | 24 |
| D diameter (mm) | 6 | 8 |
| E (mm) | 9 | 10 |
| M (mm) | 52 | 63 |
