Description

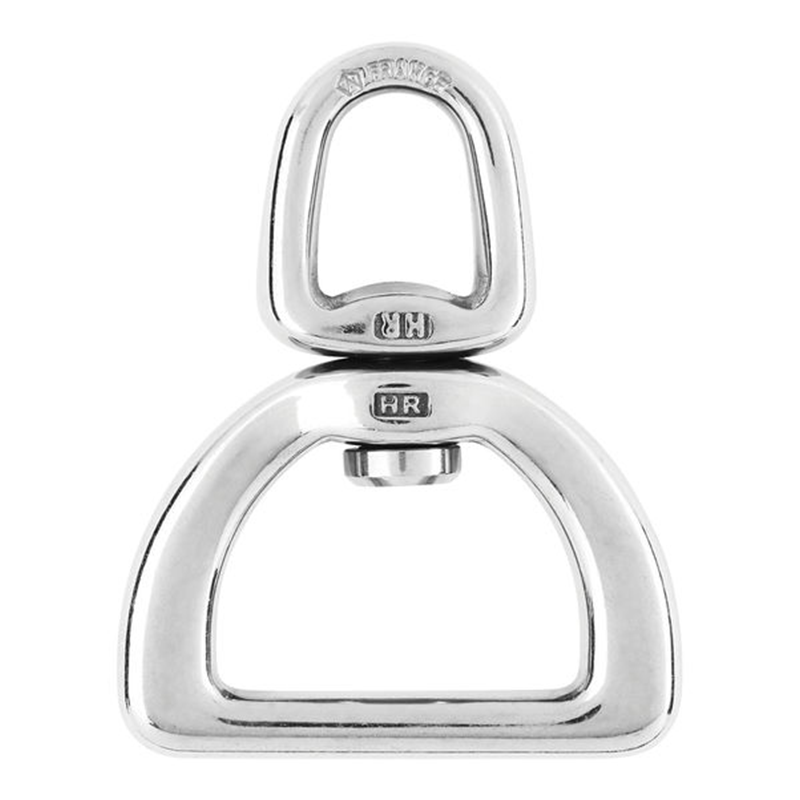

Wichard Webbing Swivels:
- HR forged swivel (17.4 Ph) for webbing swivel.
Applications:
- Link two pieces which have different rotation.
- For webbing application.
- Do not use for mooring applications.
Working load (WL): for nautical applications
Working Load Limit (WLL): for industrial applications only.
The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
| Wichard Webbing Swivel | 2367 | 2368 |
|---|---|---|
| Materials | HR 17.4 PH stainless steel grade | HR 17.4 PH stainless steel grade |
| Length (mm) | 60 | 80 |
| Working load (kg) | 960 | 1600 |
| Breaking load (kg) | 1500 | 3200 |
| Weight (g) | 56 | 107 |

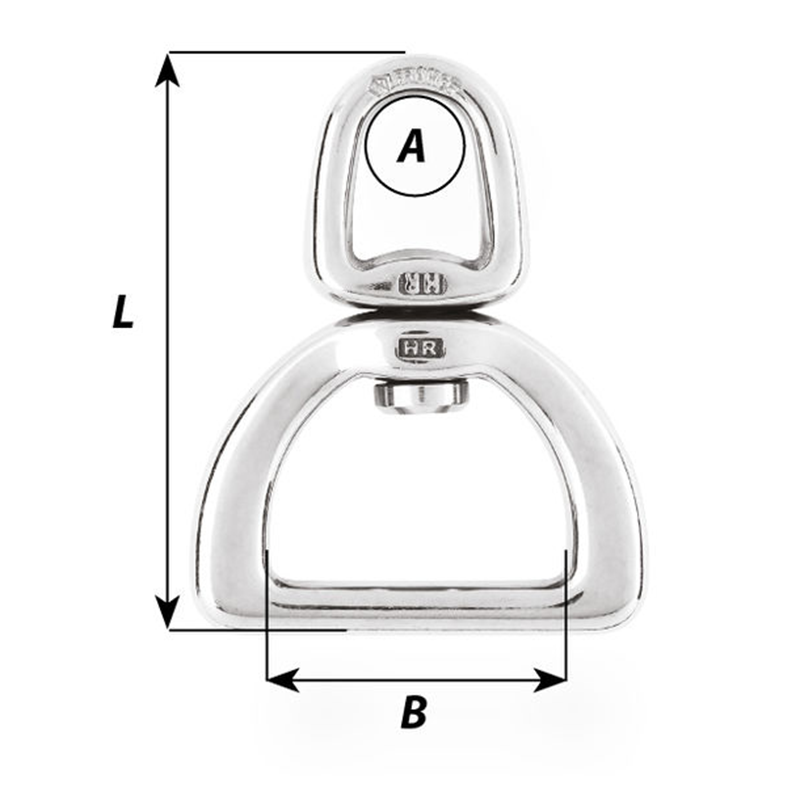

| A (mm) | 11 | 14 |
| B (mm) | 30 | 40 |
