Epropulsion Electric Outboard Spirit 2 Plus:

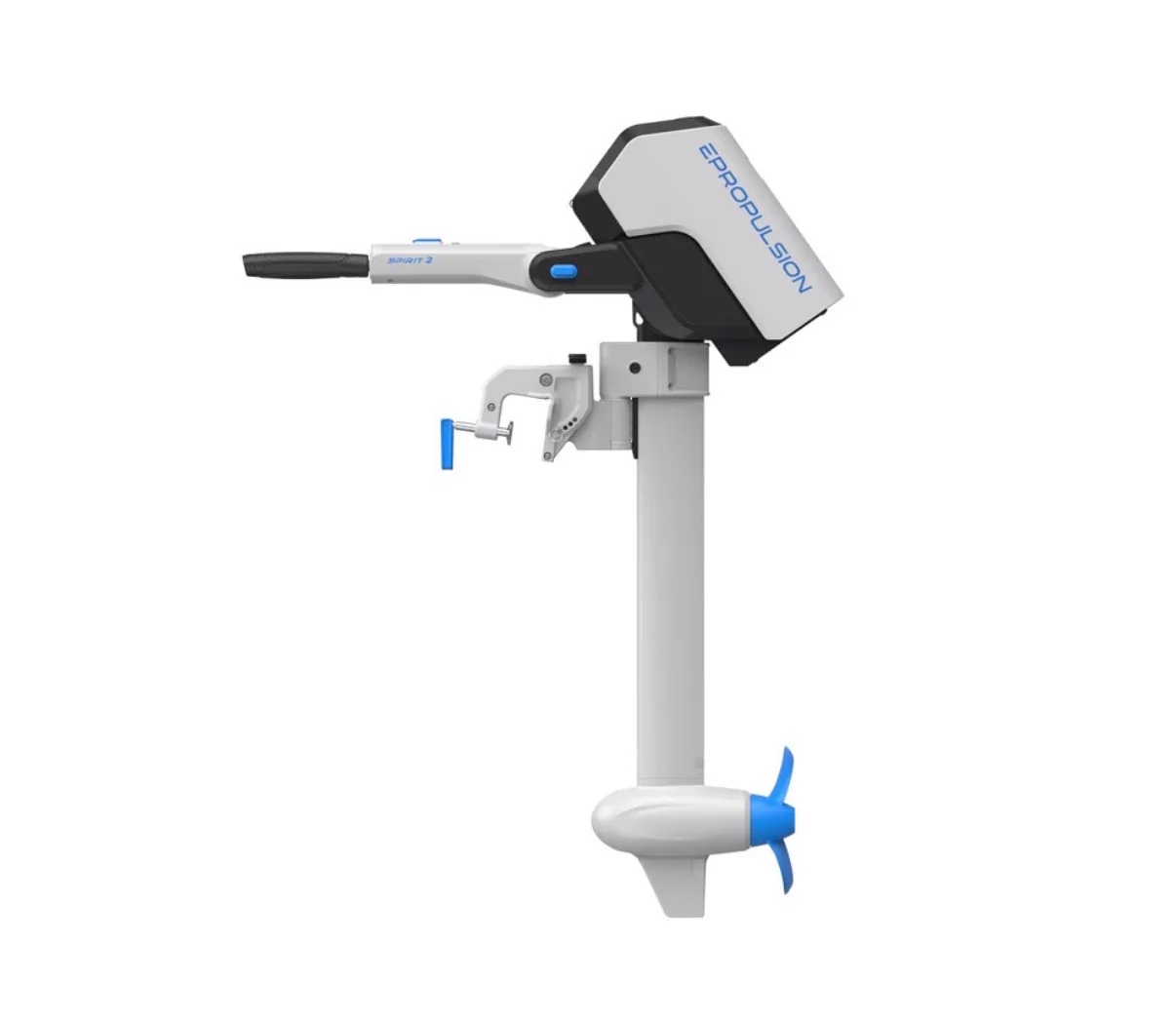

NEW Spirit 2 – Tiller Control Version
The all new Spirit 2.0 is an electric outboard motor with continuous power rating of 2kW, and a peak of 3kW (peak equivalent to 6HP).
Designed for small boats such as dinghies, tenders, and sailboats, the Spirit 2 features an all new quick connect 1,539Wh lithium battery, and provides impressive range and reliability for your adventures on the water.
The new Spirit 2 stands out with its hydro-generation capability, enabling the battery to recharge while sailing under the right conditions. This innovative feature enhances its appeal for eco-conscious sailors. Additionally, the Spirit 2 supports remote control operation, offering flexibility for various steering setups and an enhanced boating experience.
Lightweight, quiet, and maintenance-free, the Spirit 2 is an ideal solution for sustainable, efficient, and convenient electric propulsion.
KEY FEATURES:

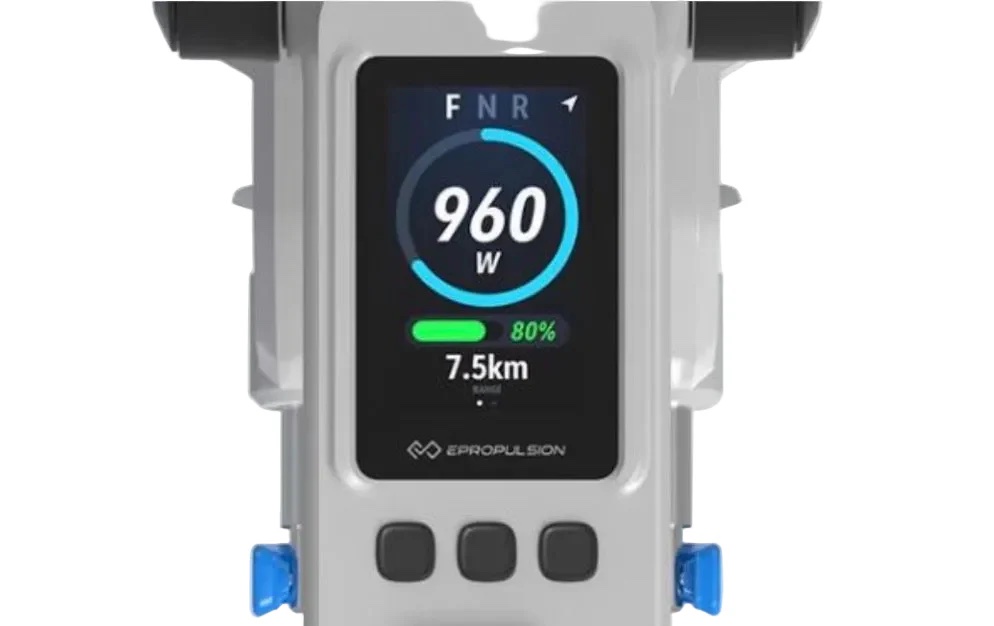

- Full Colour Digital Operation: Real-time monitoring of power, remaining runtime, battery level, and operating voltage.
- Portable Power Station: The all new 1539Wh battery has a USB-C connection to charge your devices
- Compact Design: Weighing just 10.2-10.7kg, it is lightweight & portable.
- Stepless Throttle Control: Smooth handling in both forward and reverse.
- Shallow Water Trimming Position: A 35 degree trimming position enhances adaptability for different water depths.
SHAFT LENGTH GUIDE
| Transom Height | Shaft Length |
|---|---|
| Less than 40cm / 15.7 inches | Extra Shortshaft |
| Between 40-50cm / 15.7-19.7 inches | Shortshaft |
| More than 50cm / 19.7 inches | Longshaft |
The Spirit 2 is compatible with ePropulsion’s E-Series batteries, allowing for extended runtime and flexibility. Optional solar charging accessories are available for on-the-go recharging, enhancing the sustainability of your boating adventures.
Package comes with:

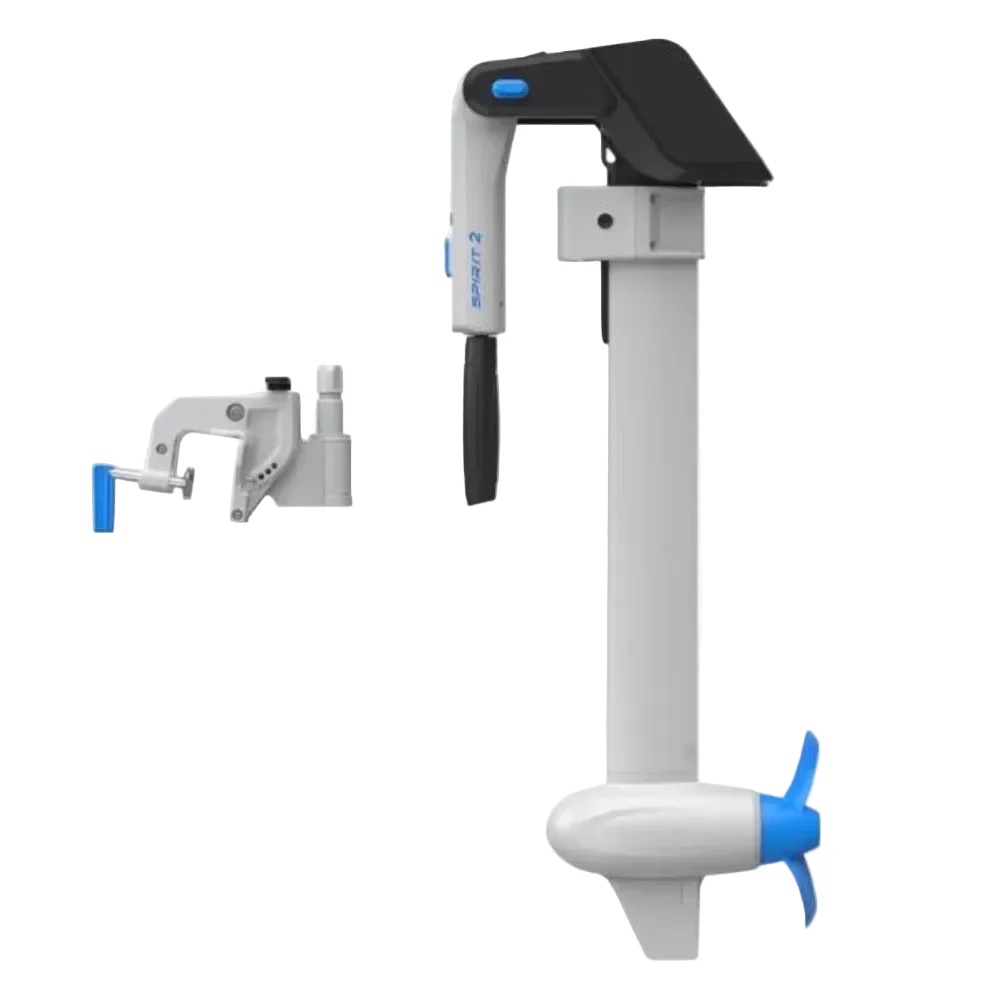

- Spirit 2 Motor Body (your selection of leg length)

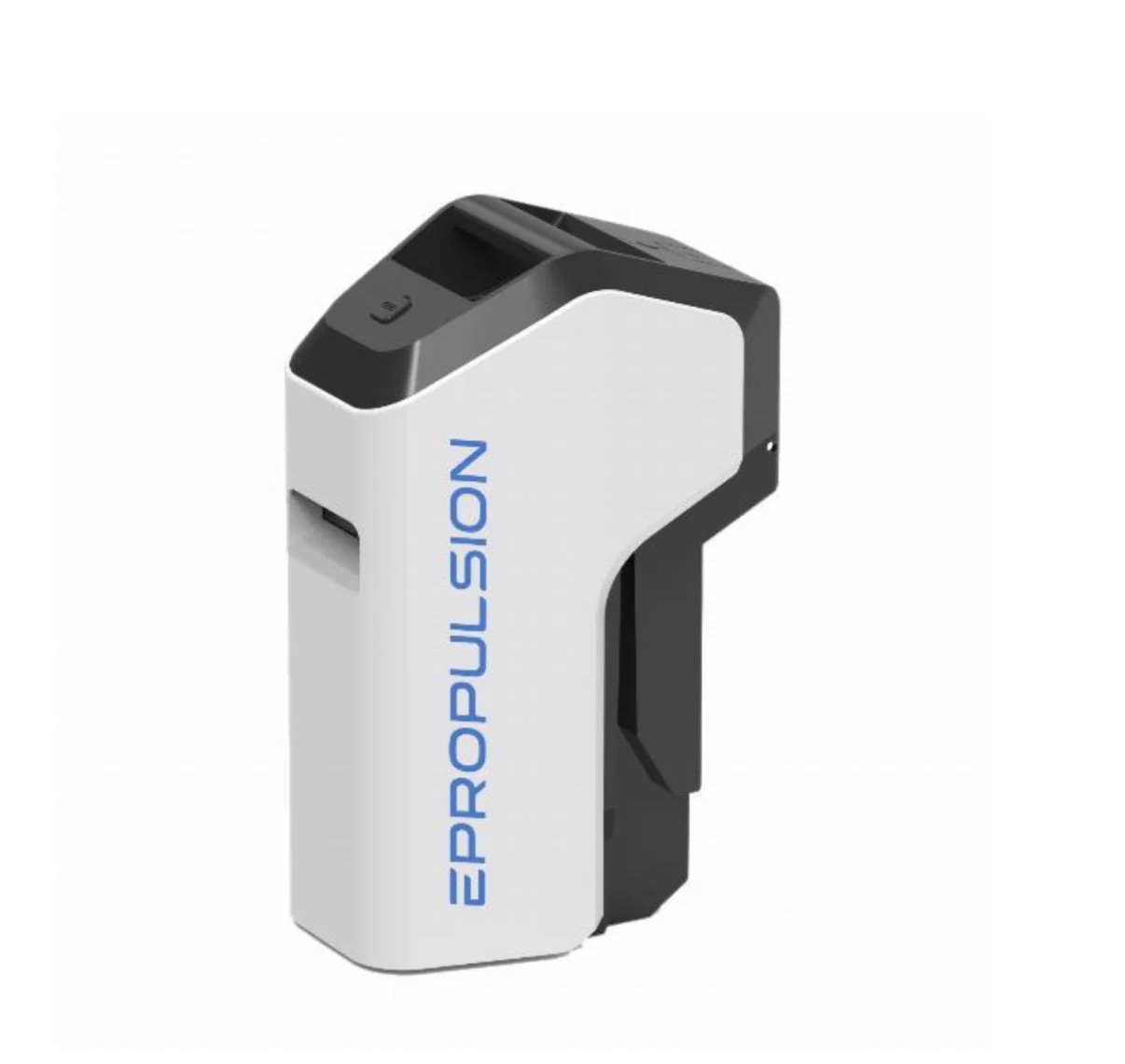

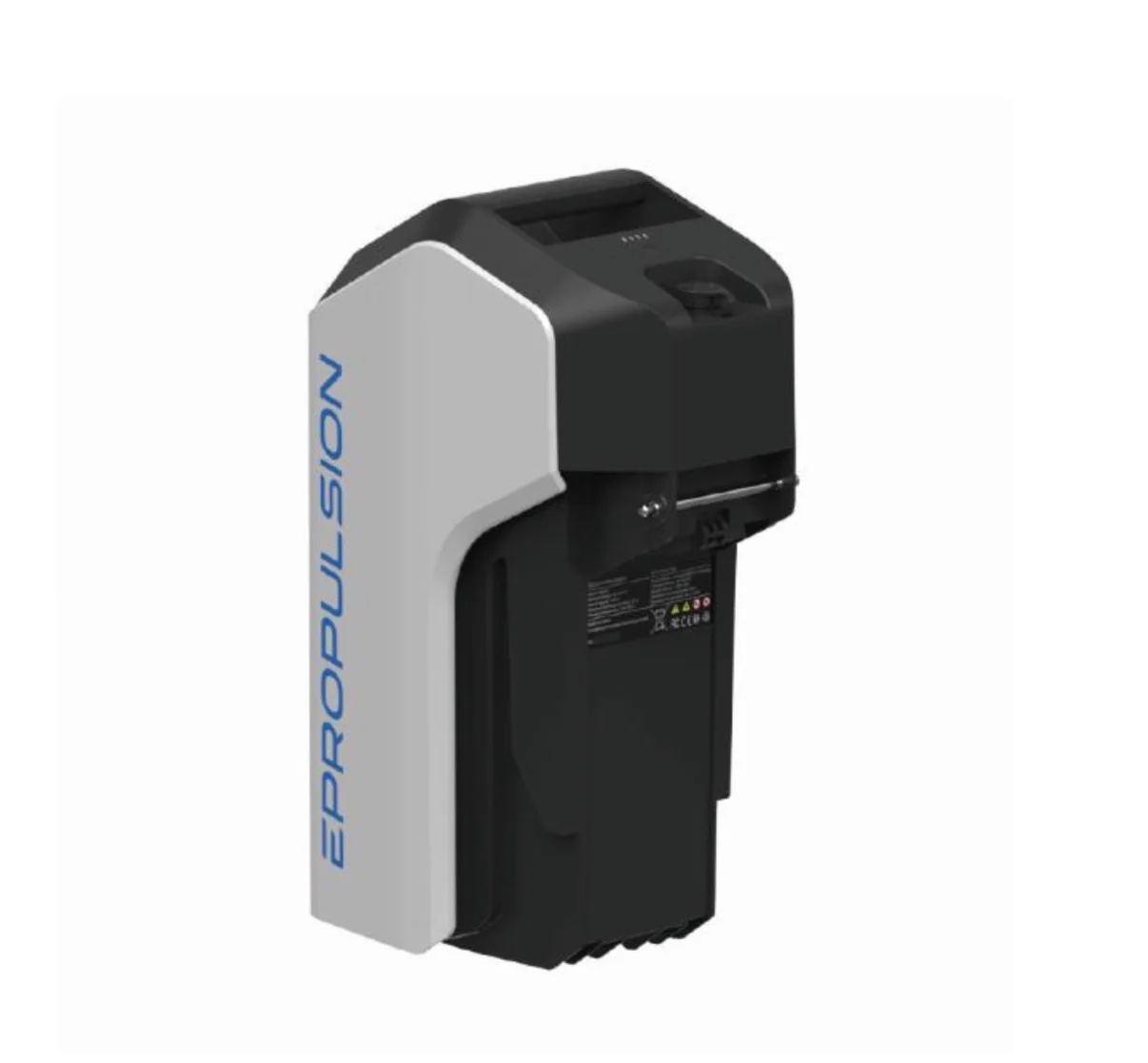

- 1,539Wh Spirit 2 Battery
- Battery Charger
- Killswitch
- Manual & Warranty Card
| ALL NEW Spirit 2 | |
|---|---|
| Power | 2 kW |
| Standard Battery | Spirit 2 Battery Plus, 1539 Wh li-ion polymer |
| Motor Weight* | 10.4 kg |

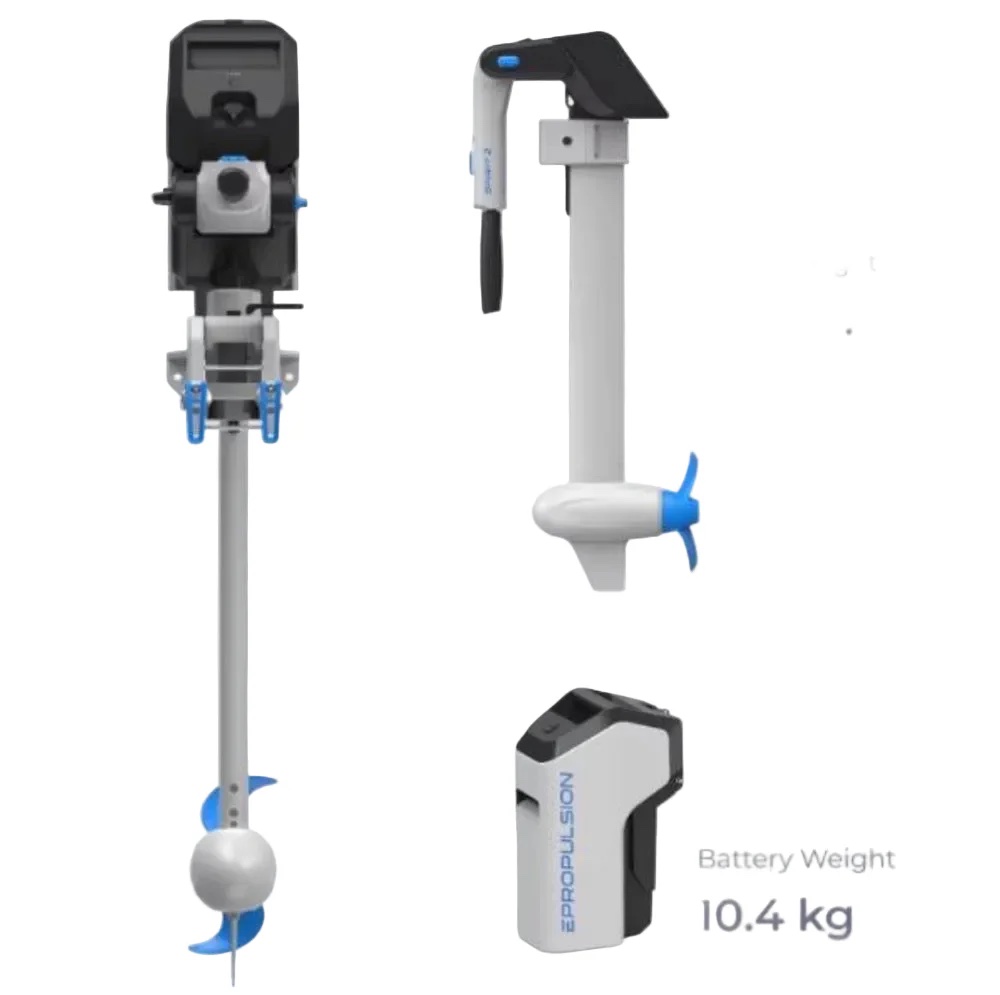

| Battery Weight | 10.4 kg |
| Standard Charging | 8 Hrs |
| Fast Charging | 2 Hrs |
| External Battery | Yes, E-Series Battery recommended |

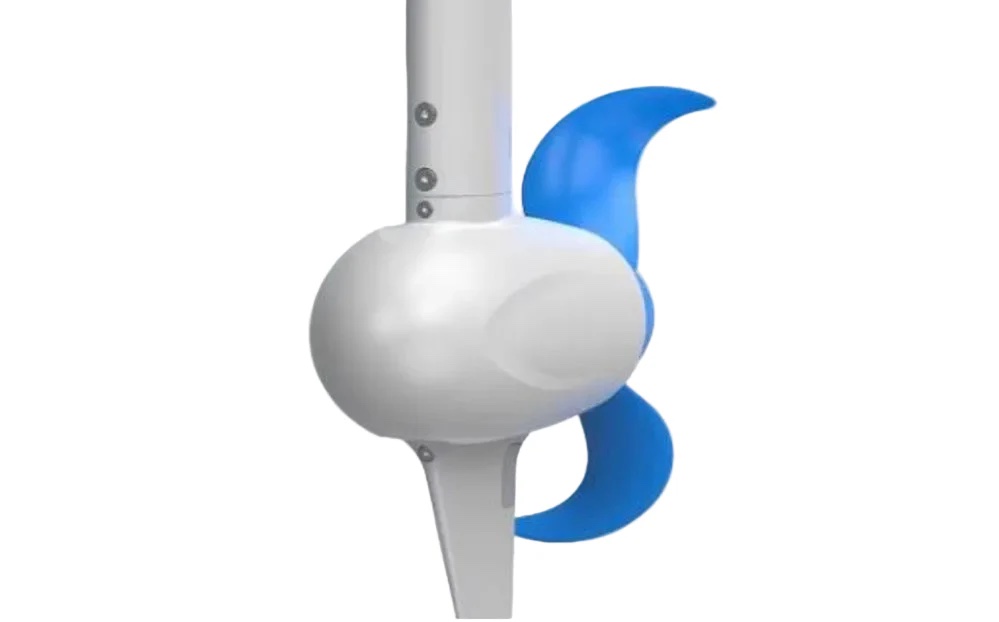

| Propeller | 2-blade composite propeller, diameter 240mm, pitch 167mm |
| Trim / Tilt Angle | 0°, 7°, 14°, 21° |
| Shaft Length | XShort, Short, Long |
| Control | Tiller or Remote |
| Hydrogeneration | Yes |
*The weight is measured with the short shaft version.
| Power (W) | Speed (mph / kph) | Runtime (hh:mm) | Range (mile / km) |
|---|---|---|---|
| 500 | 4.6 / 7.4 | 03:00 | 13 / 21 |
| 1 kW | 6.0 / 9.6 | 01:48 | 9.6 / 15.4 |
| 2 kW (full power) | 10.9 / 17.5 | 00:54 | 8.1 / 13 |
*This performance data is based on an 11.5-foot aluminium boat weighing 65 kg, with one person and one Spirit battery in calm lake water. Actual speed, range, and running time
may vary due to different boat types, loads, weather conditions, and other factors.
All ePropulsion electric outboards purchased from e-Propulsion.com.au or via our authorised dealer network come with a 2 year warranty (non-commercial use).
