Description
Harken 12mm Bolt-Down Fairleads:
- Harken Bolt-Down Fairleads are used on boats 6–15 m (20–50 ft) as shallow-angle line deflectors.
- These weight-saving fairleads are built of 6061-T6 Hard Lube-anodised aluminium for durability.
- Smooth surfaces and radiused centre holes minimise line wear.
- ***Suits Up To 10mm Line***

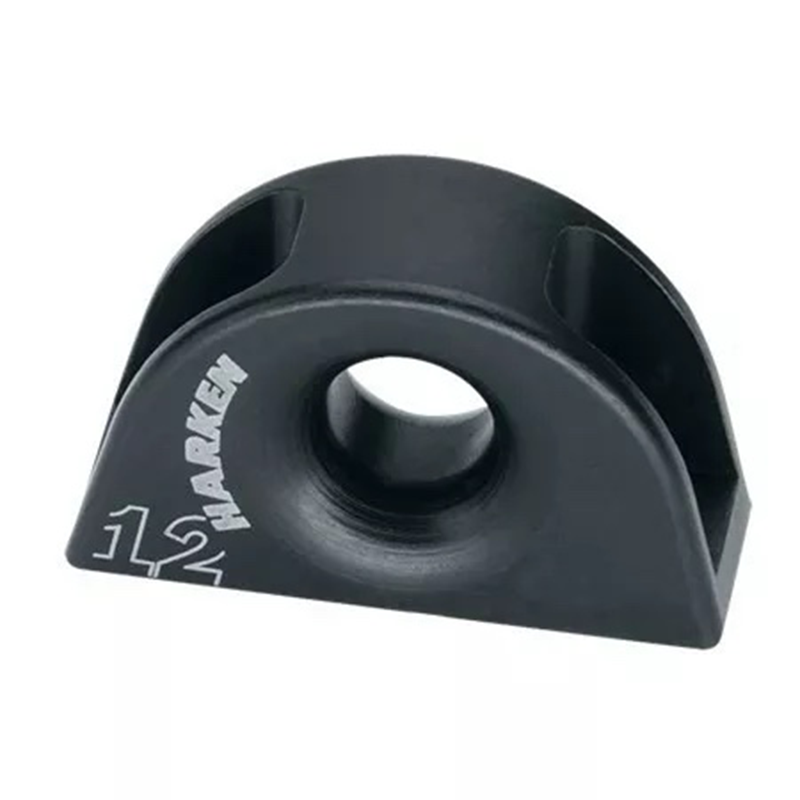

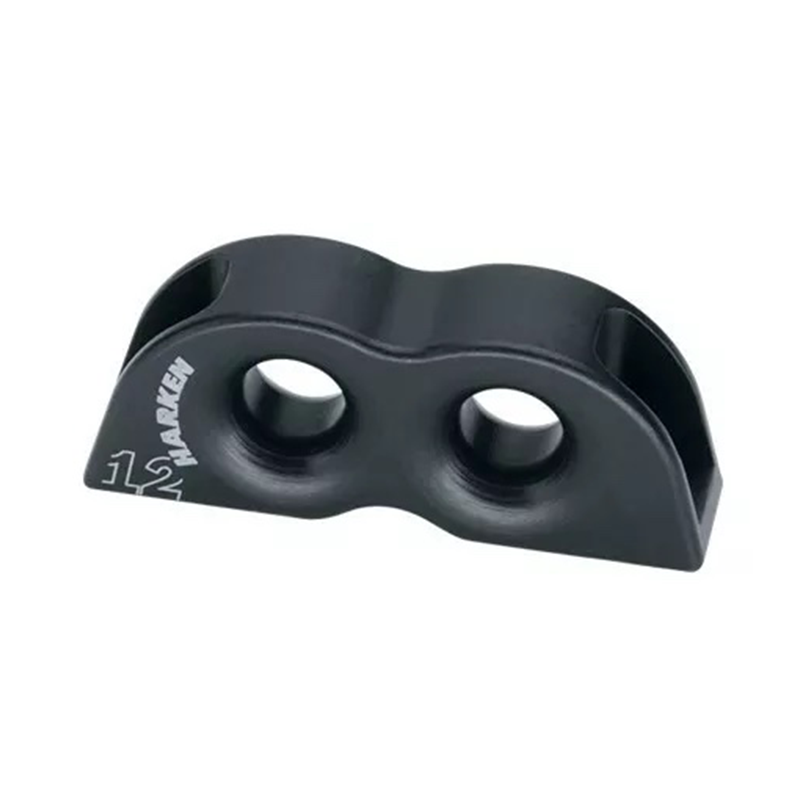

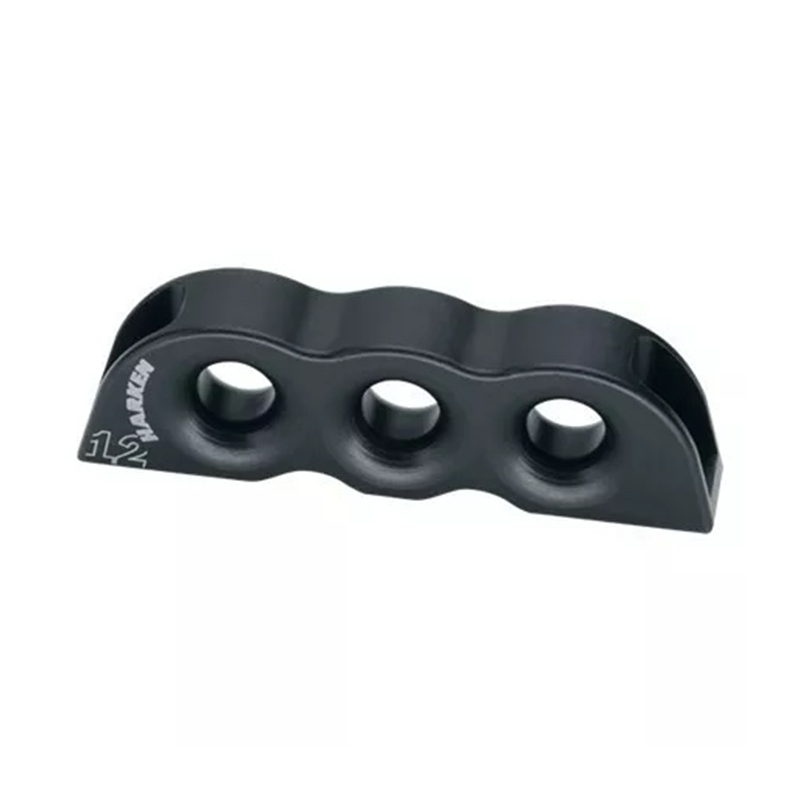

Harken 12mm Hole Fairleads | 3274 - Single | 3275 - Double | 3276 - Triple |
---|---|---|---|
Height (mm) | 28.2 mm | 28.2 mm | 28.2 mm |
Height (in) | 1 1/8 in | 1 1/8 in | 1 1/8 in |
Maximum line Ø (mm) | 10 mm | 10 mm | 10 mm |
Maximum line Ø (in) | 3/8 in | 3/8 in | 3/8 in |
Fasteners (mm) | 6 SH mm | 6 SH mm | 6 SH mm |
Fasteners (in) | 1/4 SH in | 1/4 SH in | 1/4 SH in |
Length (mm) | 48 mm | 74 mm | 99 mm |
Length (in) | 1 7/8 in | 2 7/8 in | 3 7/8 in |
Weight (g) | 28 g | 49 g | 69 g |
Weight (oz) | .99 oz | 1.73 oz | 2.43 oz |
Maximum working load (kg) | 908 kg | 908 kg | 908 kg |
Maximum working load (lb) | 2000 lb | 2000 lb | 2000 lb |
Breaking load (kg) | 1816 kg | 1816 kg | 1816 kg |
Breaking load (lb) | 4000 lb | 4000 lb | 4000 lb |
Width (mm) | 18 mm | 18 mm | 18 mm |
Width (in) | 11/16 in | 11/16 in | 11/16 in |
Center hole Ø (mm) | 12 mm | 12 mm | 12 mm |
Center hole Ø (in) | 15/32 in | 15/32 in | 15/32 in |
A (mm) | 32 mm | 57.4 mm | 82.8 mm |
