Description
Harken 16mm Bolt-Down Fairleads:
- Harken Bolt-Down Fairleads are used on boats 6–15 m (20–50 ft) as shallow-angle line deflectors.
- These weight-saving fairleads are built of 6061-T6 Hard Lube-anodised aluminium for durability.
- Smooth surfaces and radiused centre holes minimise line wear.
- *** Suits Up To 14mm Line***

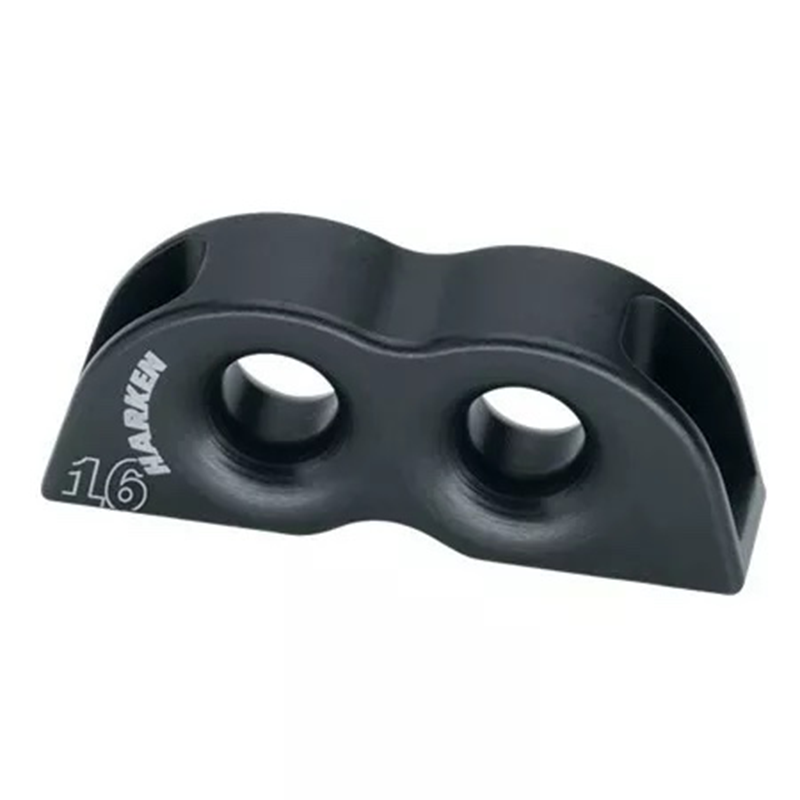

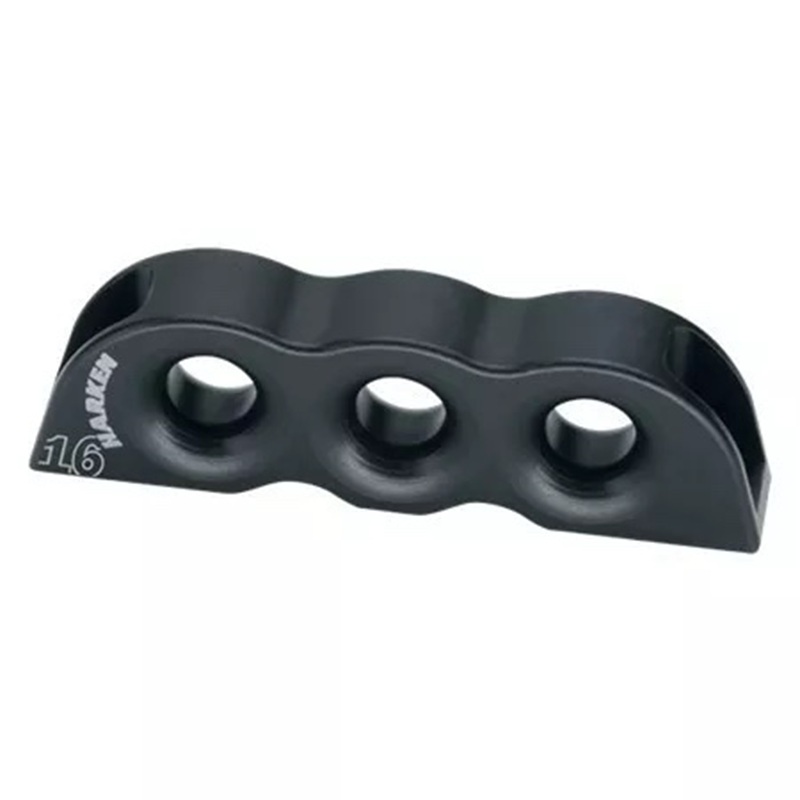

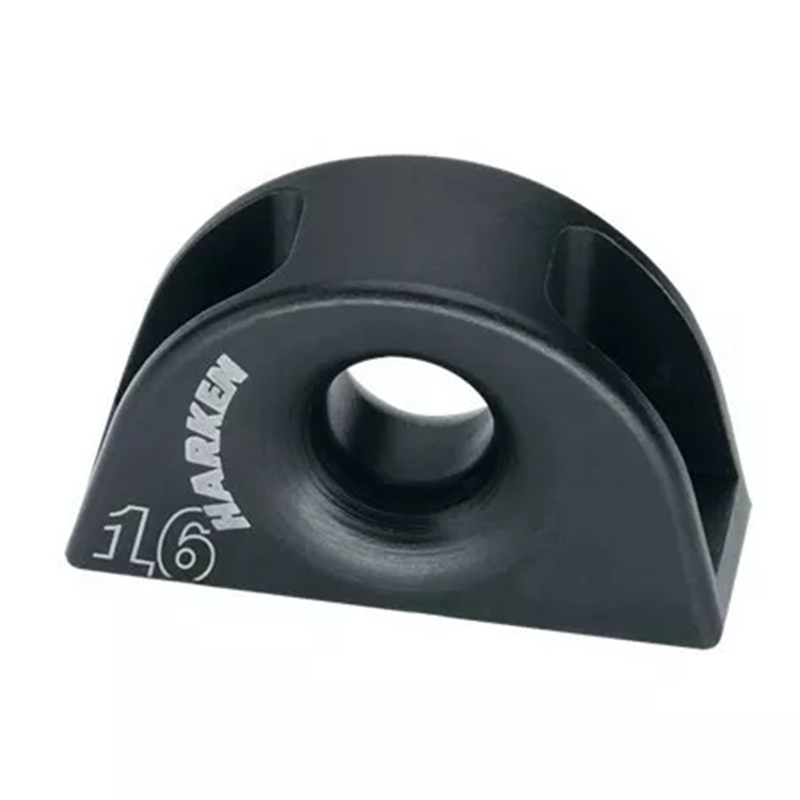

Harken 16mm Hole Fairleads | 3277 - One Hole | 3278 - Two Holes | 3279 - Three Holes |
---|---|---|---|
Height (mm) | 31.8 mm | 31.8 mm | 31.8 mm |
Height (in) | 1 1/4 in | 1 1/4 in | 1 1/4 in |
Maximum line Ø (mm) | 14 mm | 14 mm | 14 mm |
Maximum line Ø (in) | 9/16 in | 9/16 in | 9/16 in |
Fasteners (mm) | 8 SH mm | 8 SH mm | 8 SH mm |
Fasteners (in) | 5/16 SH in | 5/16 SH in | 5/16 SH in |
Length (mm) | 60 mm | 91 mm | 121 mm |
Length (in) | 2 3/8 in | 3 9/16 in | 4 3/4 in |
Weight (g) | 47 g | 80 g | 112 g |
Weight (oz) | 1.66 oz | 2.82 oz | 3.95 oz |
Maximum working load (kg) | 1816 kg | 1816 kg | 1816 kg |
Maximum working load (lb) | 4000 lb | 4000 lb | 4000 lb |
Breaking load (kg) | 3632 kg | 3632 kg | 3632 kg |
Breaking load (lb) | 8000 lb | 8000 lb | 8000 lb |
Width (mm) | 22 mm | 22 mm | 22 mm |
Width (in) | 7/8 in | 7/8 in | 7/8 in |
Center hole Ø (mm) | 16 mm | 16 mm | 16 mm |
Center hole Ø (in) | 5/8 in | 5/8 in | 5/8 in |
A (mm) | 37 mm | 67.5 mm | 98 mm |
