Description
Harken 50mm Deck Organisers:
- Harken deck organisers lead halyards and control lines aft, allowing crew to sail from the security of the cockpit.
- The injection-moulded composite top plate provides superior impact and UV resistance.
- Asymmetrical sheaves of glass-filled nylon have flared bases to lift lines up and off the deck, and combine with a proven bearing system to reduce friction.
- Deck organisers stack for additional configurations.
- Sheave Ø: 50mm (1 15/16 in)
- Maximum line Ø: 16mm (5/8 in)

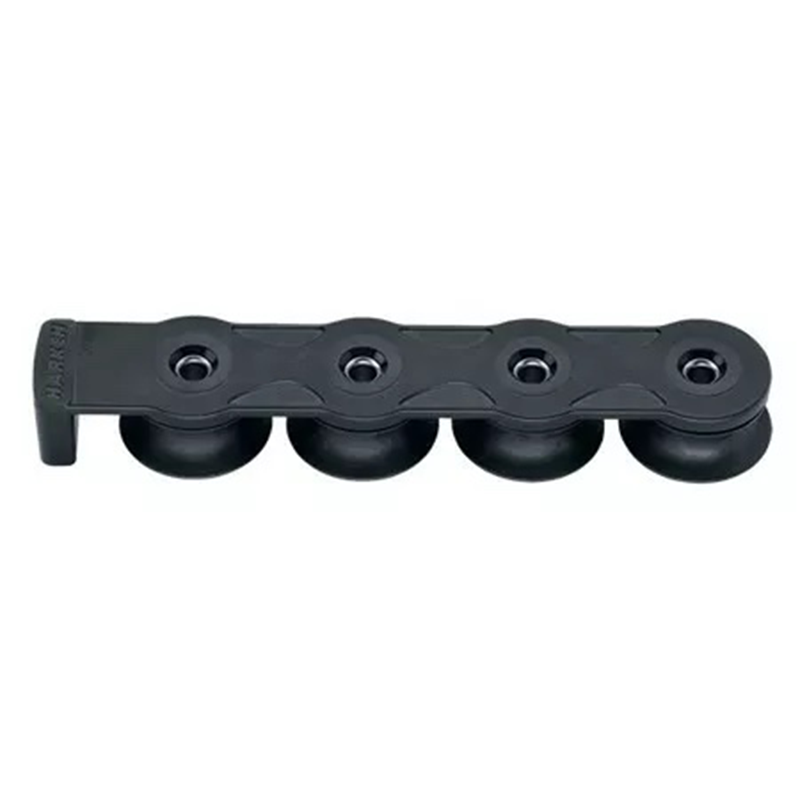

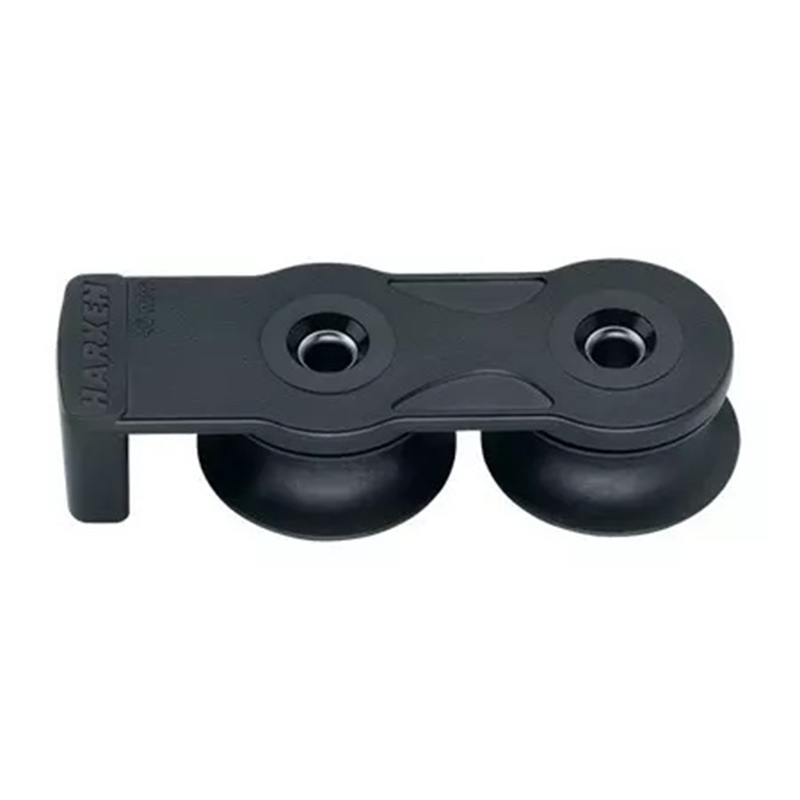

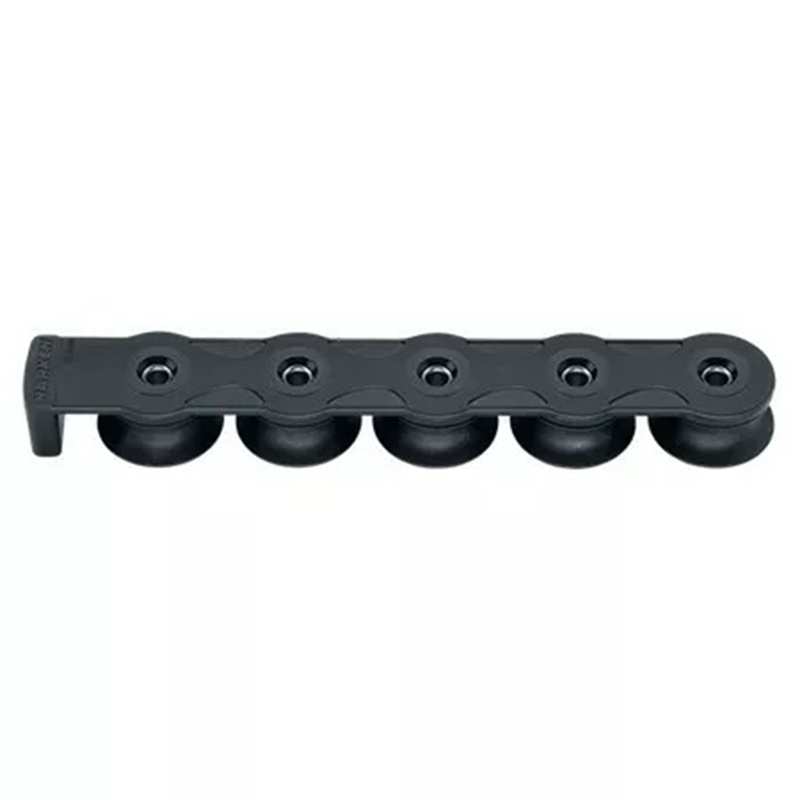

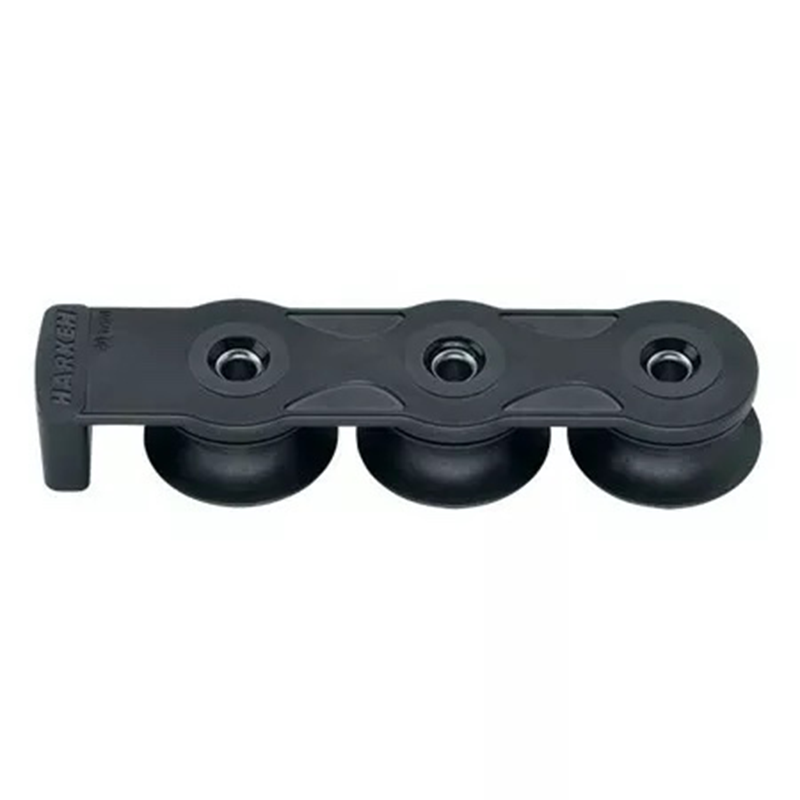

Harken 50mm Deck Organisers | 9005 - 2-Sheave | 9006 - 3-Sheave | 9007 - 4-Sheave | 9008 - 5-Sheave |
---|---|---|---|---|
Sheave Ø (mm) | 50 mm | 50 mm | 50 mm | 50 mm |
Sheave Ø (in) | 1 15/16 in | 1 15/16 in | 1 15/16 in | 1 15/16 in |
Length (mm) | 135 mm | 191 mm | 247 mm | 303 mm |
Length (in) | 5 5/16 in | 7 1/2 in | 9 11/16 in | 11 15/16 in |
Height (mm) | 31 mm | 31 mm | 31 mm | 31 mm |
Height (in) | 1 7/32 in | 1 7/32 in | 1 7/32 in | 1 7/32 in |
Weight (g) | 136 g | 199 g | 262 g | 325 g |
Weight (oz) | 4.80 oz | 7.02 oz | 9.24 oz | 11.46 oz |
Maximum line Ø (mm) | 16 mm | 16 mm | 16 mm | 16 mm |
Maximum line Ø (in) | 5/8 in | 5/8 in | 5/8 in | 5/8 in |
Fasteners (mm) | 8 FH mm | 8 FH mm | 8 FH mm | 8 FH mm |
Fasteners (in) | 5/16 FH in | 5/16 FH in | 5/16 FH in | 5/16 FH in |
Maximum working load/sheave (kg) | 1180 kg | 1180 kg | 1180 kg | 1180 kg |
Maximum working load/sheave (lb) | 2602 lb | 2602 lb | 2602 lb | 2602 lb |
