Description

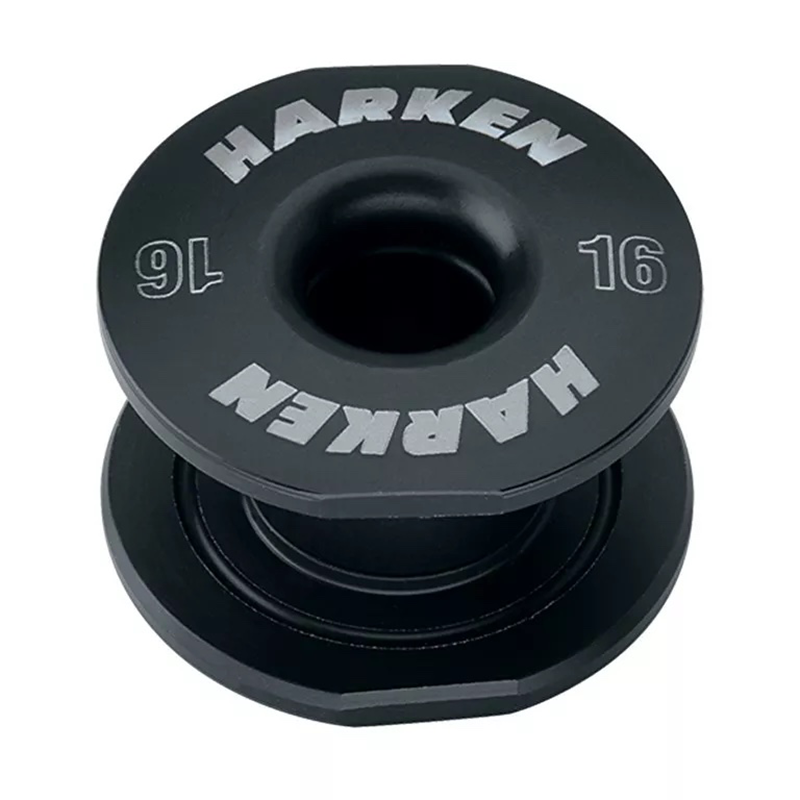

Harken Gizmo 16mm Double Through-Deck Bushes:
- Double-sided through-deck bushings are perfect for installing soft-attach loops to protect line from wear and also to separate line.
| Harken 16mm Double Gizmos | 9075.1013 - 10-13mm | 9075.1318 - 13-18mm | 9075.1828 - 18-28mm | 9075.2848 - 28-48mm |
|---|---|---|---|---|
| Weight (g) | 45.6 g | 48.4 g | 53.2 g | 62.8 g |
| Weight (oz) | 1.61 oz | 1.71 oz | 1.88 oz | 2.22 oz |
| Maximum working load (kg) | 3400 kg | 3400 kg | 3400 kg | 3400 kg |
| Maximum working load (lb) | 7480 lb | 7480 lb | 7480 lb | 7480 lb |
| Ø (mm) | 50.3 mm | 50.3 mm | 50.3 mm | 50.3 mm |
| Ø (in) | 1.98 in | 1.98 in | 1.98 in | 1.98 in |
| Center hole Ø (mm) | 16 mm | 16 mm | 16 mm | 16 mm |
| Center hole Ø (in) | 0.625 in | 0.625 in | 0.625 in | 0.625 in |
| Shaft outer Ø (mm) | 26 mm | 26 mm | 26 mm | 26 mm |
| Shaft outer Ø (in) | 1.024 in | 1.024 in | 1.024 in | 1.024 in |
| Drill size (mm) | 27 mm | 27 mm | 27 mm | 27 mm |
| Drill size (in) | 1 1/32 in | 1 1/32 in | 1 1/32 in | 1 1/32 in |
| Minimum deck thickness (mm) | 10 mm | 13 mm | 18 mm | 28 mm |
| Minimum deck thickness (in) | 0.394 in | 0.512 in | 0.709 in | 1.102 in |
| Maximum deck thickness (mm) | 13 mm | 18 mm | 28 mm | 48 mm |
| Maximum deck thickness (in) | 0.512 in | 0.709 in | 1.102 in | 1.890 in |
