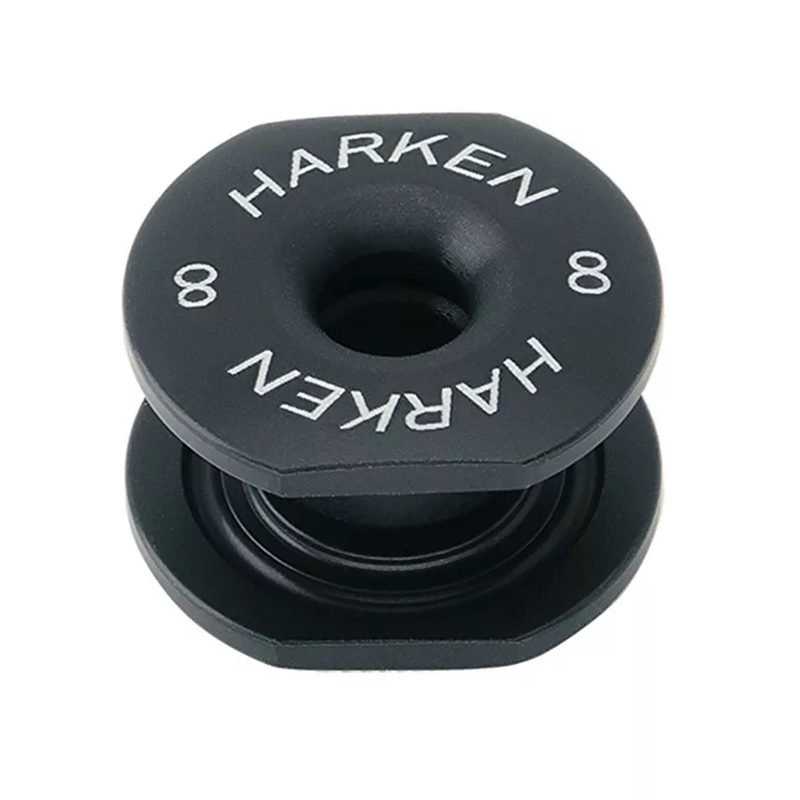

Harken Gizmo 8mm Double Through-Deck Bushes
- Double-sided through-deck bushings are perfect for installing soft-attach loops to protect line from wear and also to separate line.
| Harken 8mm Double Gizmos | 9071.0810 - 8-10mm | 9071.1013 - 10-13mm | 9071.1318 - 13-18mm | 9071.1828 - 18-28mm |
|---|---|---|---|---|
| Weight (g) | 9.7 g | 10.4 g | 11.5 g | 13.4 g |
| Weight (oz) | 0.34 oz | 0.37 oz | 0.41 oz | 0.47 oz |
| Ø (mm) | 28.1 mm | 28.1 mm | 28.1 mm | 28.1 mm |
| Ø (in) | 1.106 in | 1.106 in | 1.106 in | 1.106 in |
| Center hole Ø (mm) | 8 mm | 8 mm | 8 mm | 8 mm |
| Center hole Ø (in) | 0.313 in | 0.313 in | 0.313 in | 0.313 in |
| Shaft outer Ø (mm) | 15 mm | 15 mm | 15 mm | 15 mm |
| Shaft outer Ø (in) | 0.591 in | 0.591 in | 0.591 in | 0.591 in |
| Drill size (mm) | 16 mm | 16 mm | 16 mm | 16 mm |
| Drill size (in) | 5/8 in | 5/8 in | 5/8 in | 5/8 in |
| Minimum deck thickness (mm) | 8 mm | 10 mm | 13 mm | 18 mm |
| Minimum deck thickness (in) | 0.315 in | 0.394 in | 0.512 in | 0.709 in |
| Maximum deck thickness (mm) | 10 mm | 13 mm | 18 mm | 28 mm |
| Maximum deck thickness (in) | 0.394 in | 0.512 in | 0.709 in | 1.102 in |
