Description
Ronstan Snap Shackle Trunnion Large Bail 122mm – RF6321:
Trunnion swivel head allows both 360 degrees rotation and side to side articulation. Designed to maintain correct load orientation in applications where shackle movement might be restricted when attached to perforated toe rails, low profile pad eyes. Suits RF6360 replacement plunger pin kit.
- Can move in two planes (pivot and swivel) to maintain optimum articulation.
- Grade 15-5PH investment cast stainless steel body, hasp and bail.
- Grade 316 stainless steel plunger pin and spring.

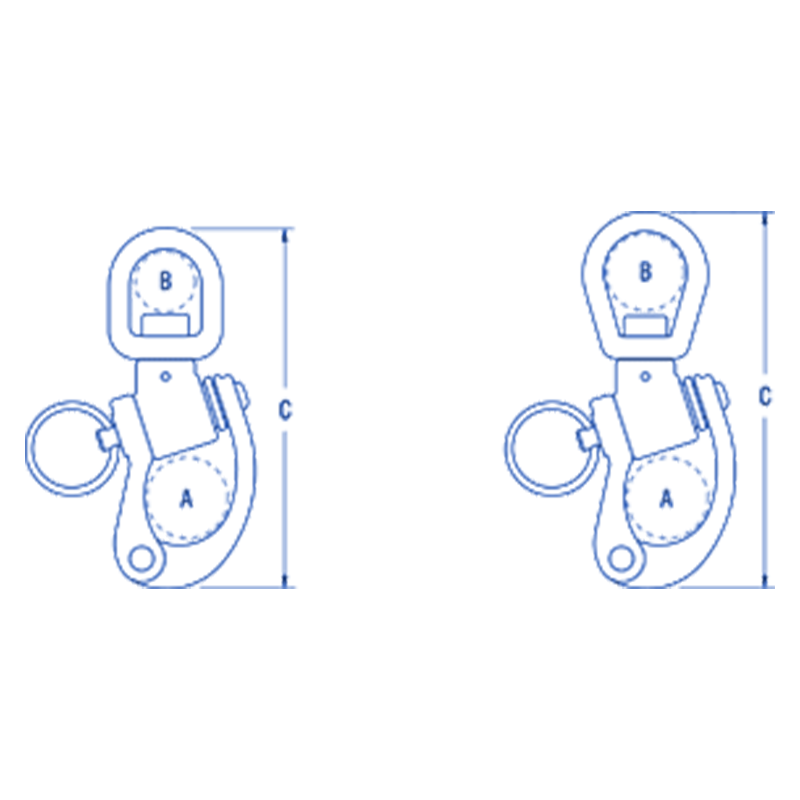

| A | 26.0 mm |
|---|---|
| B | 26.0 mm |
| C | 122.0 mm |
| M.W.L. | 1350 kg |
| B. L. | 2700 kg |
| Weight | 198 g |
