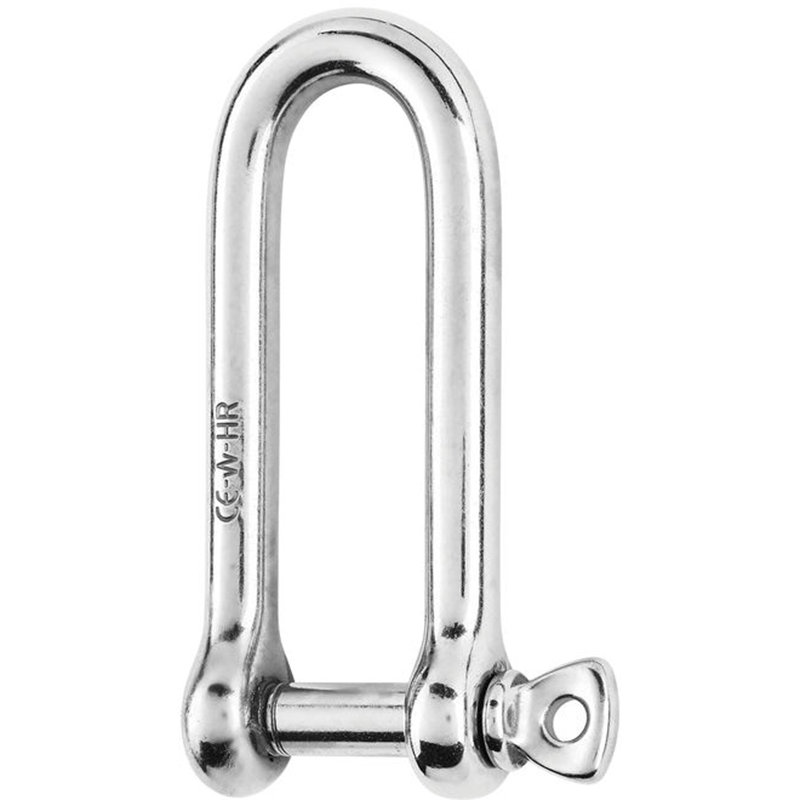

Wichard High Resistance Long D Shackle – 11215

Original price was: $139.00.Current price is: $130.95. incl GST

Description

Wichard High Resistance Long D Shackle – 11215:

  • Forged long shackle in HR stainless steel grade (17,4 PH).
  • Outstanding working and breaking load.
  • A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel.
  • WLL: only for industrial applications (lifting i.e…).
  • CE marking.

Applications:

  • Applications requesting high loads.
  • Standard applications of shackle.
  • Attachment applications: blocks, head …
  • Do not use for mooring applications.

Working load (WL): for nautical applications

Working Load Limit (WLL): for industrial applications only.
The safety factor is 5 times the breaking load.
WLL = Breaking load / 5

Specs:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: 2640kg
  • WLL: 1200kg
  • Breaking load: 6000kg
  • Weight: 164g

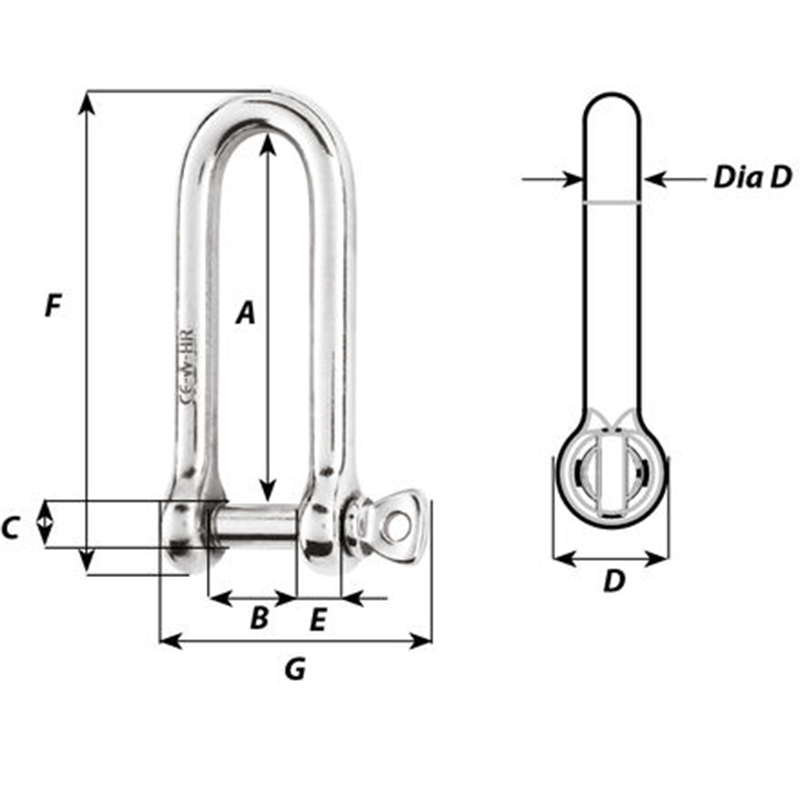

  • A: 78mm
  • B: 20mm
  • D diameter: 10mm

Additional information

Weight .2 kg
Dimensions 10 × 10 × 10 cm
