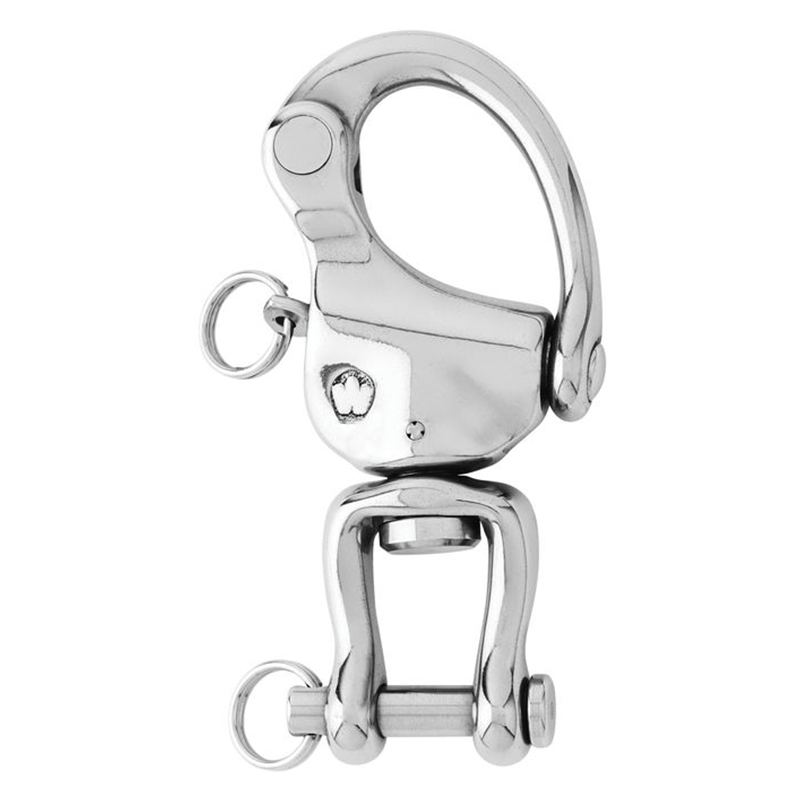

Wichard HR Clevis Pin Snap Shackles

$155.95$279.95 incl GST

Description

Wichard HR Clevis Pin Snap Shackles:

  • HR Forged snap shackle (Grade 17.4 PH stainless steel) with clevis pin swivel.
  • Free rotation of the snap shackle thanks to the swivel eye.
  • The plunger pin is set captive into the hook and cannot become detached.
  • Excellent working and breaking loads.
  • Easy to open by pulling the plunger pin (possibility to attach a lanyard).

Applications:

  • Snap shackle applications.

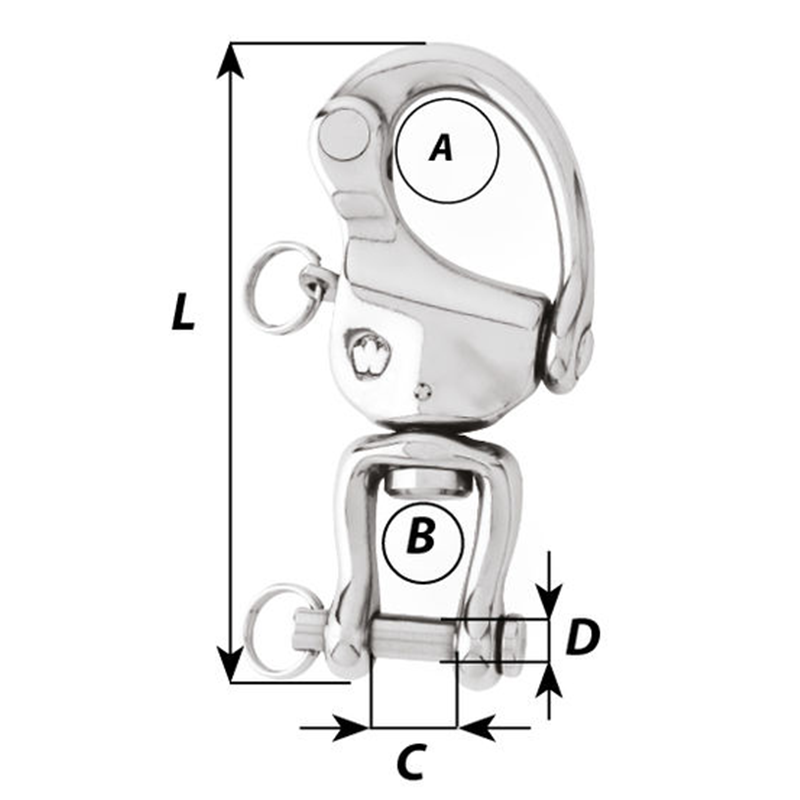

Wichard Clevis Pin Snap Shackles#2476#2478
MaterialsHR 17.4 PH stainless steel gradeHR 17.4 PH stainless steel grade
Length (mm)90120
Working load (kg)12802400
Breaking load (kg)38007000
Weight (g)154417
A (mm)2126
B (mm)1727
C (mm)1118
d diameter (mm)711

Additional information

Weight .3 kg
Length:

2476 / 90mm, 2478 / 120mm
