Description

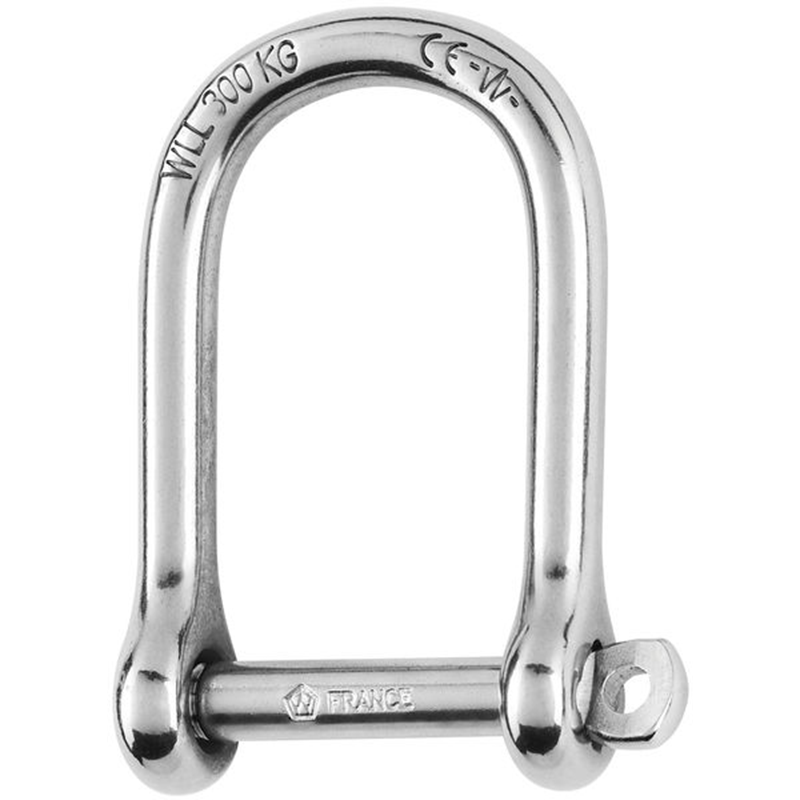

Wichard Self-Locking Large Shackles:
- Self-locking large shackle forged in grade 316L stainless steel.
- The pin is locked into one of the indentations.
- No risks of loose due to vibrations.
- Outstanding working and breaking loads.
- WLL: only for industrial applications (lifting i.e…).
- CE marking.
Applications:
- For applications where a large opening shackle is required.
Working load (WL): for nautical applications.
Working Load Limit (WLL): for industrial applications only.
The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
| Self Locking Large Shackles | 1262 | 1263 | 1264 | 1265 |
|---|---|---|---|---|
| Materials | 316 stainless steel grade | 316 stainless steel grade | 316 stainless steel grade | 316 stainless steel grade |
| Working load (kg) | 330 | 450 | 810 | 1280 |
| WLL (kg) | 220 | 300 | 540 | 800 |
| Breaking load (kg) | 1100 | 1500 | 2700 | 4000 |
| Weight (g) | 16 | 27 | 67 | 127 |

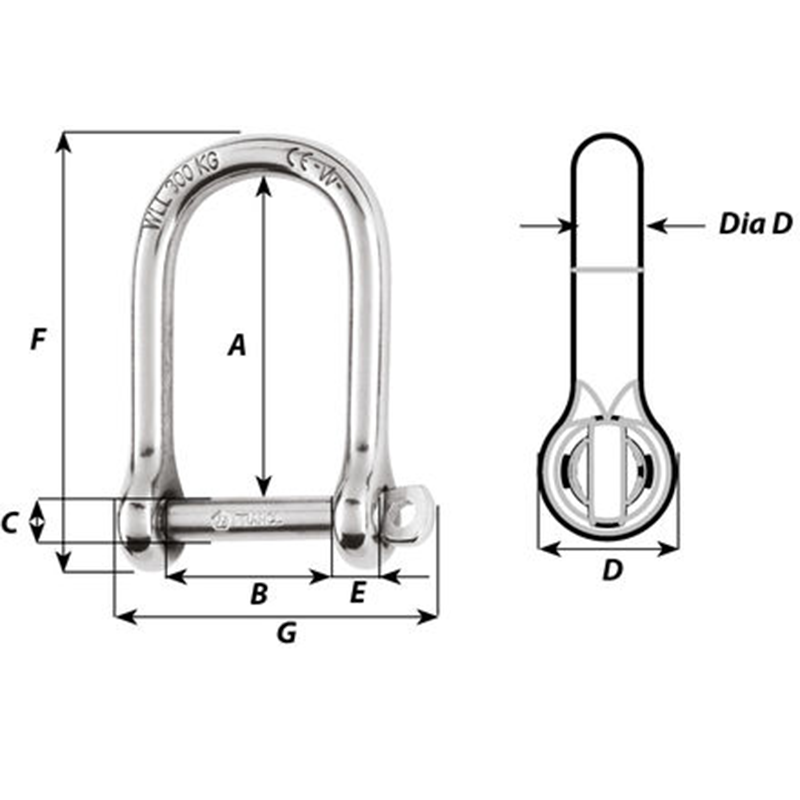

| A (mm) | 36 | 42 | 57 | 72 |
| B (mm) | 20 | 25.5 | 32 | 40 |
| C (mm) | 5 | 6 | 8 | 10 |
| D (mm) | 11 | 14 | 17 | 21 |
| D diameter (mm) | 5 | 6 | 8 | 10 |
| E (mm) | 5 | 6 | 8 | 10 |
| F (mm) | 48 | 58 | 77 | 71 |
| G (mm) | 35 | 44 | 57 |
