Wichard Speedlink Clevis Pin Snap Shackles

$319.95$419.95 incl GST

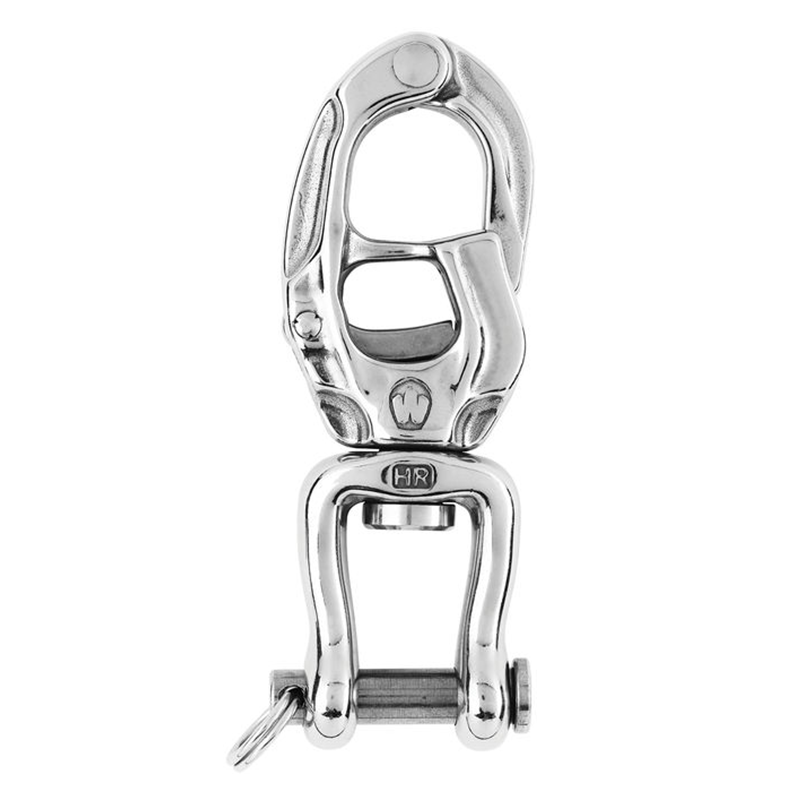

Wichard Speedlink Clevis Pin Snap Shackles:

Speed-link is the new trigger snap shackle dedicated to spinnaker operations on racing boats and offering an excellent weight / performance ratio.

  • Ultra lightweight: developed by using finite element analysis software. Speed-link has an optimised design thanks to its shape, cut-outs and ribs.
  • The design gives it one of the best strength/weight ratios on the market.
  • Easy opening: opening under load, whether manually or using release fid, is easy and effortless thanks to the generous passage diameter and its optimised slopes.
  • No accidental opening: the special shape of the latch reduces inertia and avoids unintentional opening, especially under impact.
  • Sturdy: Speed-link is forged in HR stainless steel and can bear outstanding working and breaking loads for a minimum weight.
  • Modern design: its ultra-technical lines avoid excessive rope wear and prevent adjacent lines from jamming.


  • Spinnaker operations: sheets, halyards, peeling.

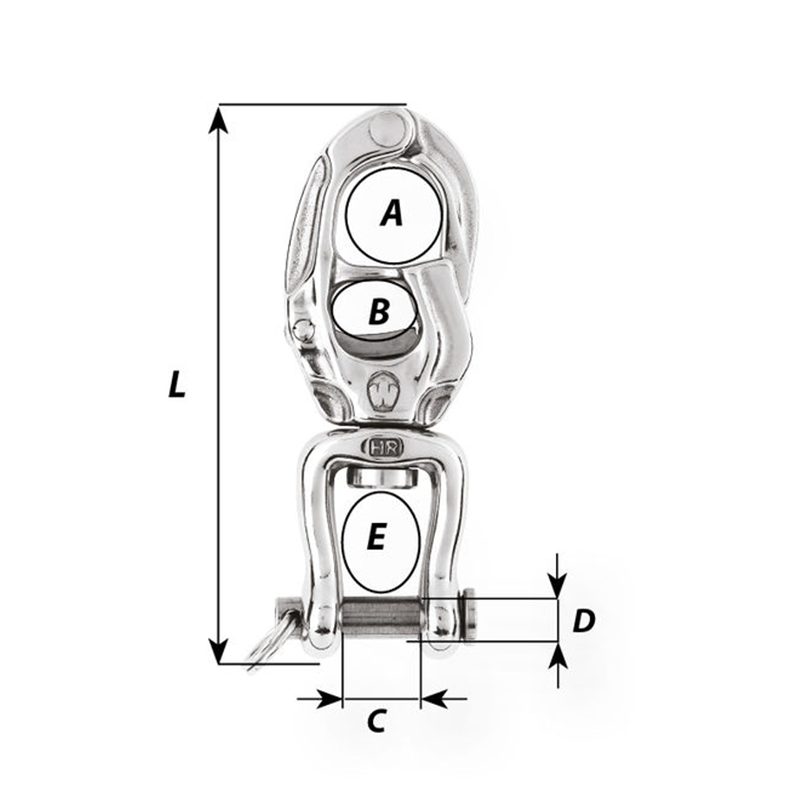

Wichard Speedlink Trigger Snap Shackles - Clevis#2852#2856
MaterialsHR 17.4 PH stainless steel gradeHR 17.4 PH stainless steel grade
Length (mm)105135
Working load (kg)14404100
Breaking load (kg)41008700
Weight (g)110360
A (mm)1727
B (mm)1319
C (mm)1118
D (mm)711
E (mm)1826

Additional information

Weight .4 kg

2852 / 105mm, 2856 / 135mm
