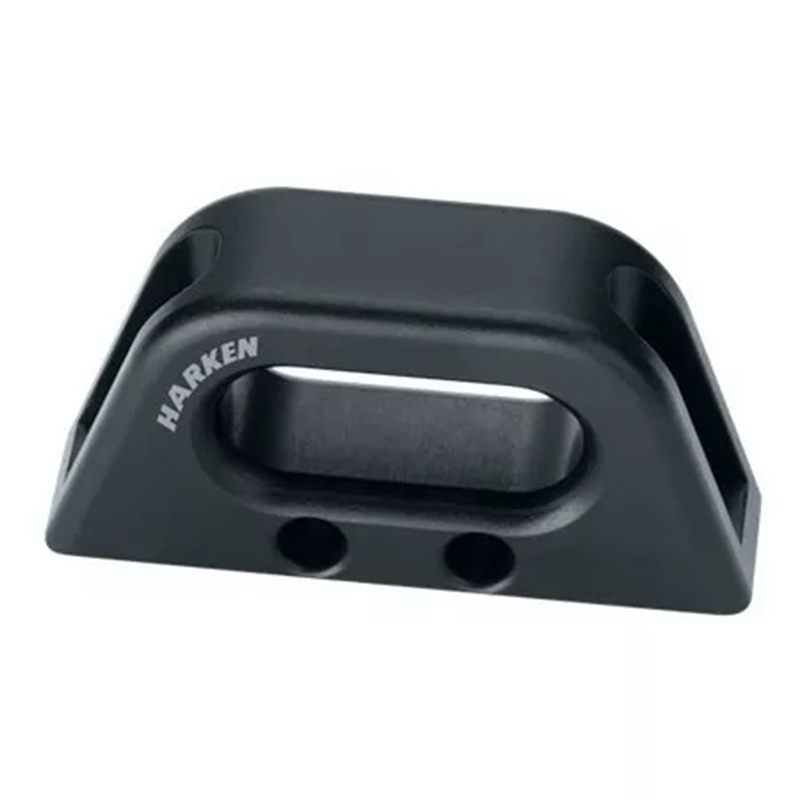

Harken Grand Prix Jib Leads

$116.95$181.95 incl GST

Description

Harken Grand Prix Jib Leads:

Strong aluminium jib leads deflect jib sheets to winches, preventing overrides. These jib leads have two small drilled holes through which a loop can be spliced to attach the hobble. This temporarily secures the jib/genoa clew to free-up a winch for mark roundings.
Harken Jib Leads32803281
Length (mm)75 mm125 mm
Length (in)2 15/16 in4 15/16 in
Width (mm)22 mm29 mm
Width (in)7/8 in1 1/8 in
Weight (g)84 g276 g
Weight (oz)2.97 oz9.72 oz
Maximum line Ø (mm)12 mm22 mm
Maximum line Ø (in)1/2 in7/8 in
Fasteners (mm)6 SH mm10 SH mm
Fasteners (in)1/4 SH in7/16 SH in
Maximum working load (kg)680 kg1930 kg
Maximum working load (lb)1500 lb4250 lb
Height (mm)37 mm58 mm
Height (in)1 7/16 in2 5/16 in
A (mm)55 mm96 mm
Fastener spacing (mm)55 mm96 mm
Center hole Ø (mm)16 mm
Center hole Ø (in)5/8 in
A (mm)37 mm



Additional information

Weight .2 kg
Size:

Midrange, Max Line 12mm, Big Boat, Max Line 29mm
